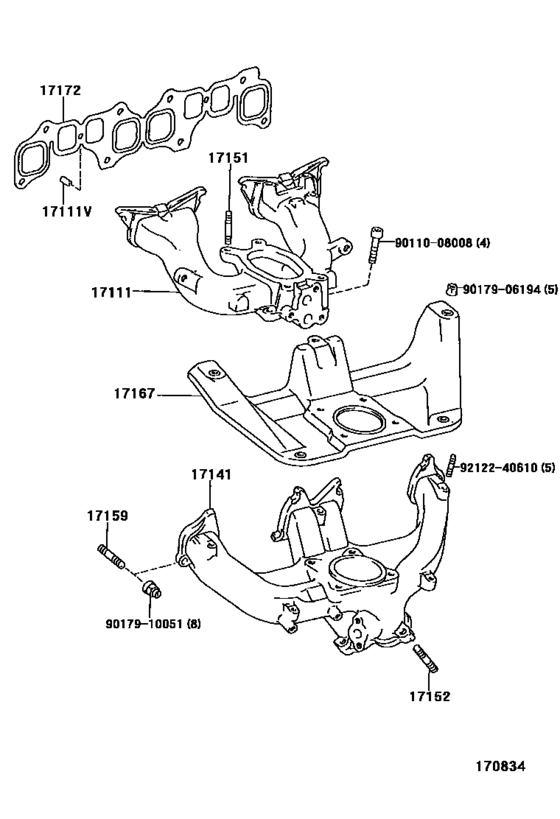

Manifold ([01.1989 - 10.1994] (8901-9410)2Y..VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-71010 Manifold, Intake[03.1990 - 10.1994] 2Y..YN85..VWP |
17111-71010 |
US $573.66 |
||
|
17111
|
17111
17111-71020
Manifold, Intake
[01.1989 - 03.1990] 2Y..YN85..VWP |
17111-71020 |
— | ||
|
17111V
|
17111V
90250-08120 Pin, Straight, No.1[01.1989 - 10.1994] 2Y..YN85..VWP |
90250-08120 |
from US $1.01 |
||
|
17141
|
17141
17141-71020 Manifold, Exhaust[01.1989 - 10.1994] 2Y..YN85..VWP |
17141-71020 |
US $324.98 |
||
|
17151
|
17151
92122-40835 Bolt, Stud(For Manifold To Carburetor)[01.1989 - 10.1994] 2Y..YN85..VWP |
92122-40835 |
US $1.31 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[01.1989 - 09.1989] 2Y..YN85..VWP |
90116-10058 |
from US $2.32 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[01.1990 - 10.1994] 2Y..YN85..VWP |
90116-10146 |
from US $1.81 |
||
|
17152
|
17152
90116-10148 Bolt, Stud(For Turbocharger)[09.1989 - 01.1990] 2Y..YN85..VWP |
90116-10148 |
US $2.06 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[01.1989 - 10.1994] 2Y..YN85..VWP |
90116-10063 |
from US $0.98 |
||
|
17167
|
17167
17167-71020 Insulator, Exhaust Manifold Heat, No.1[01.1989 - 10.1994] 2Y..YN85..VWP |
17167-71020 |
from US $67.90 |
||
|
17172
|
17172
17172-71011 Gasket, Manifold To Cylinder Head[01.1989 - 10.1994] 2Y..YN85..VWP |
17172-71011 |
from US $16.11 |
||
|
9011008008
|
9011008008
90110-08008 BOLT |
90110-08008 |
from US $2.09 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9017910051
|
9017910051
90179-10051 NUT |
90179-10051 |
US $4.66 |
||
|
9212240610
|
9212240610
92122-40610 Bolt, Stud(For Manifold To Carburetor) |
92122-40610 |
US $2.33 |
||
