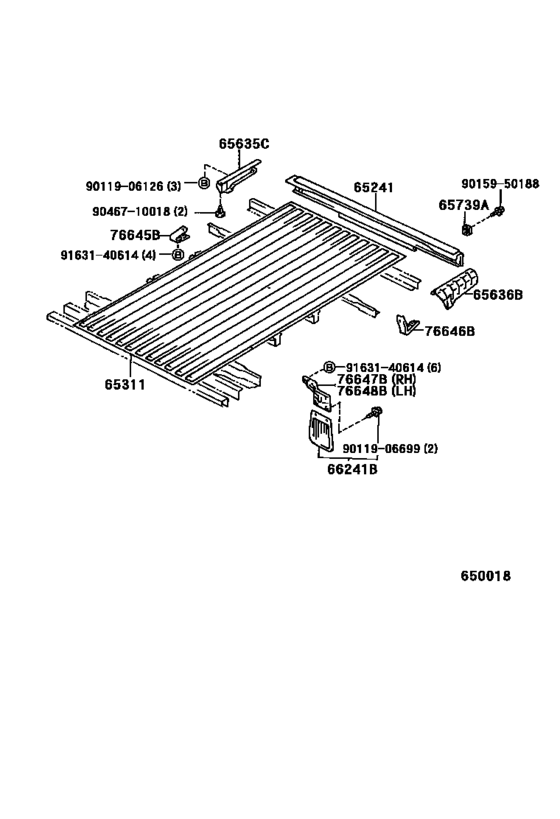

Rear Body Floor & Fender ([01.1989 - ] (8901- )VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65241
|
65241
65240-04010
Sill, Rear Cross
[07.1989 - 10.1991] LN85,YN85..VWP..CBU |
65240-04010 |
— | ||
|
65241
|
65241
65240-04020
Sill, Rear Cross
[11.1989 - 03.1990] LN85,YN85..VWP..LHD *FRG OR BELGIUM SPEC |
65240-04020 |
— | ||
|
65241
|
65241
65240-89132 Sill, Rear CrossREAR CROSS [01.1989 - 07.1989] LN85,YN85..VWP |
65240-89132 |
US $228.59 |
||
|
65311
|
65311
65311-04010
Panel, Floor, Center
[07.1989 - 02.1997] LN85,YN85..VWP..CBU |
65311-04010 |
— | ||
|
65311
|
65311
65311-89129
Panel, Floor, Center
[01.1989 - 07.1989] LN85,YN85..VWP |
65311-89129 |
— | ||
|
65635C
|
65635C
65635-89111
Plate, Rear Wheel House, Rear Rh
[01.1989 - 02.1997] LN85,YN85..VWP..CBU |
65635-89111 |
— | ||
|
65636B
|
65636B
65636-89110
Plate, Rear Wheel House, Rear Lh
[01.1989 - 02.1997] LN85,YN85..VWP..CBU |
65636-89110 |
— | ||
|
65739A
|
65739A
65739-89103 Bumper, Tail Gate[01.1989 - 02.1997] LN85,YN85..VWP..CBU |
65739-89103 |
US $16.31 |
||
|
66241B
|
66241B
66241-09010
Baffle, Rubber
[01.1991 - 02.1997] LN85,YN85..VWP..CBU (L) |
66241-09010 |
— | ||
|
66241B
|
66241B
66241-09020
Baffle, Rubber
[01.1991 - 02.1997] LN85,YN85..VWP..CBU VW BRAND,(L) |
66241-09020 |
— | ||
|
66241B
|
66241B
66241-39016 Mudguard, Rear[01.1989 - 10.1991] LN85,YN85..VWP..CBU (J) |
66241-39016 |
US $15.77 |
||
|
66241B
|
66241B
66241-39025
Baffle, Rubber
[01.1989 - 10.1991] LN85,YN85..VWP..CBU VW BRAND,(J) |
66241-39025 |
— | ||
|
76645B
|
76645B
76645-89101 Bracket, Rear Body Mudguard, Rh[01.1989 - 02.1997] LN85,YN85..VWP..CBU |
76645-89101 |
US $7.86 |
||
|
76646B
|
76646B
76646-89101 Bracket, Rear Body Mudguard, Lh[01.1989 - 02.1997] LN85,YN85..VWP..CBU |
76646-89101 |
US $7.86 |
||
|
76647B
|
76647B
76647-89105
Support, Rear Body Mudguard, Rh
[01.1989 - 02.1997] LN85,YN85..VWP..CBU |
76647-89105 |
— | ||
|
76648B
|
76648B
76648-89105
Support, Rear Body Mudguard, Lh
[01.1989 - 02.1997] LN85,YN85..VWP..CBU |
76648-89105 |
— | ||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9011906699
|
9011906699
90119-06699 BOLT WWASHER |
90119-06699 |
from US $0.70 |
||
|
9015950188
|
9015950188
90159-50188 New Genuine Part |
90159-50188 |
US $2.15 |
||
|
9046710018
|
9046710018
90467-10018 Clip, Radiator Support To Frame |
90467-10018 |
from US $1.23 |
||
|
9163140614
|
9163140614
91631-40614 БОЛТ BOLT |
91631-40614 |
US $1.43 |
