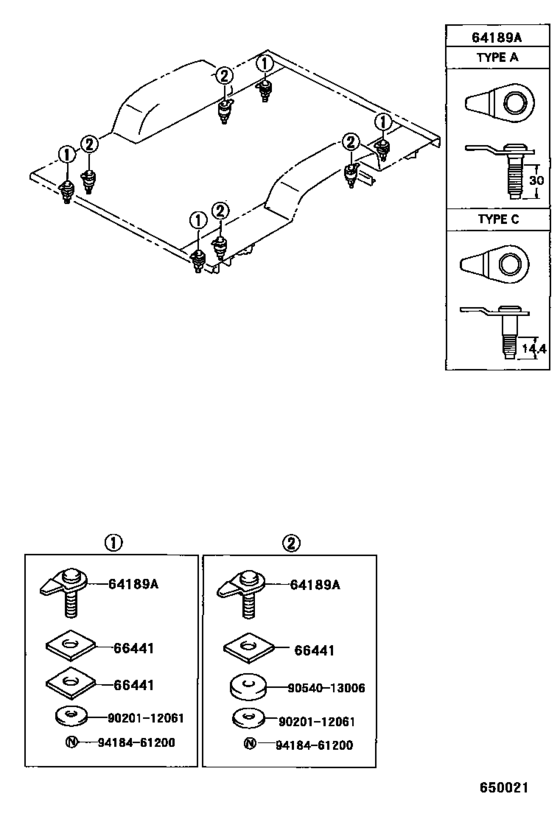

Rear Body Mounting ([01.1989 - ] (8901- )VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64189A
|
64189A
64189-35010 Bolt, Rear Body Mounting[01.1989 - 09.1993] LN85..VWP..LHD;YN85..VWP..CBU NO.1 |
64189-35010 |
from US $9.34 |
||
|
64189A
|
64189A
64189-35020 Bolt, Rear Body Mounting[01.1989 - 10.1991] LN85,YN85..VWP NO.2 |
64189-35020 |
US $10.13 |
||
|
66441
|
66441
90950-04019 Shim, Mounting, No.1[01.1989 - 12.1989] LN85,YN85..VWP OD=17 |
90950-04019 |
US $5.91 |
||
|
66441
|
66441
90950-04020
Shim, Mounting, No.1
[01.1989 - 12.1989] LN85,YN85..VWP OD=12 |
90950-04020 |
— | ||
|
66441
|
66441
90950-04025 Shim, Mounting, No.1[12.1989 - 02.1997] LN85,YN85..VWP |
90950-04025 |
US $5.91 |
||
|
9020112061
|
9020112061
90201-12061 Washer |
90201-12061 |
US $7.88 |
||
|
9054013006
|
9054013006
90540-13006 Shim, Mounting, No.2 |
90540-13006 |
from US $4.30 |
||
|
9418461200
|
9418461200
94184-61200 Nut, Lock(For Power Steering Control Valve) |
94184-61200 |
from US $1.03 |
