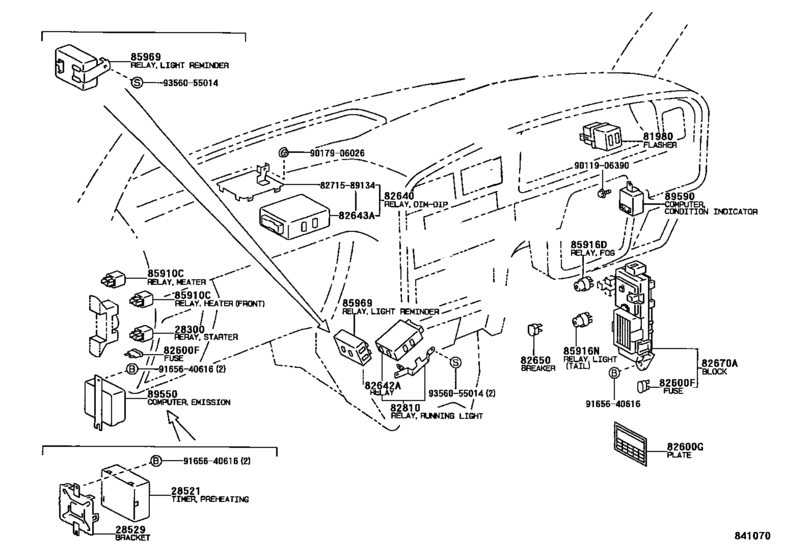

Switch & Relay & Computer ([01.1989 - ] COWL RELAY (8901- )VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[06.1992 - 10.1992] 2Y..YN85..VWP |
28300-10020 |
from US $53.76 |
||
|
28300
|
28300
28341-11010
Relay Assy, Starter
[10.1992 - 10.1994] 2Y..YN85..VWP |
28341-11010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-10020 Relay Assy, Starter[10.1992 - 10.1994] 2Y..YN85..VWP |
28300-10020 |
from US $53.76 |
||
|
28300
|
28300
90987-02009 Relay Assy[10.1991 - 06.1992] 2Y..YN85..VWP |
90987-02009 |
from US $26.15 |
||
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[01.1989 - 02.1997] LN85,YN85..VWP |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[01.1989 - 02.1997] LN85,YN85..VWP |
81980-32010 |
from US $53.92 |
||
|
82600F
|
82600F
90080-82012
Fuse, Fuse Block
[11.1989 - 10.1994] YN85..VWP..LHD 10A |
90080-82012 |
— | ||
|
82600F
|
82600F
90080-82013 Fuse, Fuse Block[11.1989 - 02.1997] LN85,YN85..VWP 15A |
90080-82013 |
US $1.60 |
||
|
82600F
|
82600F
90080-82014
Fuse, Fuse Block
[11.1989 - 02.1997] LN85,YN85..VWP 20A |
90080-82014 |
— | ||
| replacement | |||||
|
82600F
|
82600F
90982-09004 Fusible Link[11.1989 - 02.1997] LN85,YN85..VWP 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90080-82015
Fuse, Fuse Block
[11.1989 - 02.1997] LN85,YN85..VWP 7.5A |
90080-82015 |
— | ||
|
82600F
|
82600F
90982-09002 Fusible Link[01.1989 - 11.1989] LN85,YN85..VWP..LHD 10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[01.1989 - 11.1989] LN85,YN85..VWP 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1989 - 11.1989] LN85,YN85..VWP 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1989 - 11.1989] LN85,YN85..VWP 7.5A |
90982-09005 |
from US $0.99 |
||
|
82600G
|
82600G
82683-35010 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [10.1991 - 02.1997] LN85,YN85..VWP..LHD *FRG |
82683-35010 |
US $3.93 |
||
|
82600G
|
82600G
82683-89102 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU FINLAND SPEC & VW BRAND |
82683-89102 |
US $4.08 |
||
|
82600G
|
82600G
82683-89103 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG |
82683-89103 |
US $4.08 |
||
|
82600G
|
82600G
82683-89114 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [10.1991 - 10.1992] LN85,YN85..VWP..LHD FINLAND SPEC & VW BRAND |
82683-89114 |
US $3.93 |
||
|
82642A
|
82642A
82642-13010
Relay, Running Light
[10.1991 - 02.1997] LN85,YN85..VWP..LHD |
82642-13010 |
— | ||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[01.1989 - 06.1991] LN85,YN85..VWP..CBU 30A |
82650-20011 |
US $15.77 |
||
|
82670A
|
82670A
82670-35010 Block Assy, Junction, No.1JUNCTION, NO.1 [11.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG |
82670-35010 |
US $243.15 |
||
|
82670A
|
82670A
82670-35020 Block Assy, Junction, No.1JUNCTION, NO.1 [11.1989 - 06.1991] LN85,YN85..VWP..CBU; LN85,YN85..VWP..LHD..CBU FINLAND SPEC & VW BRAND |
82670-35020 |
US $243.15 |
||
|
82670A
|
82670A
82670-35040 Block Assy, Junction, No.1JUNCTION, NO.1 [10.1992 - 02.1997] LN85,YN85..VWP..LHD *FRG |
82670-35040 |
US $219.86 |
||
|
82670A
|
82670A
82670-35050 Block Assy, Junction, No.1JUNCTION, NO.1 [10.1992 - 02.1997] LN85,YN85..VWP; LN85..VWP..LHD FINLAND SPEC & VW BRAND |
82670-35050 |
US $219.86 |
||
|
82670A
|
82670A
82670-89109 Block Assy, Junction, No.1JUNCTION, NO.1 [01.1989 - 11.1989] LN85,YN85..VWP..LHD *FRG |
82670-89109 |
US $50.38 |
||
|
82670A
|
82670A
82670-89110
Block Assy, Junction, No.1
[01.1989 - 11.1989] LN85,YN85..VWP; LN85,YN85..VWP..LHD FINLAND SPEC & VW BRAND |
82670-89110 |
— | ||
|
82810
|
82810
82810-89101 Relay Assy, Running LightRUNNING LIGHT [01.1989 - 11.1989] LN85,YN85..VWP..LHD FINLAND SPEC & VW BRAND OR NORWAY SPEC |
82810-89101 |
US $174.72 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[01.1989 - 02.1997] LN85,YN85..VWP |
90987-04002 |
from US $24.32 |
||
|
85916D
|
85916D
90987-02004 Relay Assy, Starter[01.1989 - 08.1989] LN85,YN85..VWP..LHD BELGIUM SPEC |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
85916D
|
85916D
909870200483 [01.1989 - 08.1989] LN85,YN85..VWP..LHD BELGIUM SPEC |
909870200483 |
US $53.75 |
||
|
85916D
|
85916D
90987-02009 Relay Assy[10.1991 - 02.1997] LN85,YN85..VWP |
90987-02009 |
from US $26.15 |
||
|
85916N
|
85916N
90987-01003 Relay, Fuel Lid Opener[01.1989 - 02.1997] LN85,YN85..VWP |
90987-01003 |
from US $35.65 |
||
|
85969
|
85969
85969-17010
Relay, Light Reminder
[01.1989 - 11.1989] LN85,YN85..VWP..LHD NORWAY SPEC OR FINLAND SPEC & VW BRAND |
85969-17010 |
— | ||
|
85969
|
85969
85969-89102
Relay, Light Reminder
[01.1989 - 10.1991] LN85,YN85..VWP..LHD..CBU W(LIGHT LEMIND WARNING) |
85969-89102 |
— | ||
|
89550
|
89550
89550-35360
Computer Assy, Emission Control
[01.1989 - 03.1990] YN85..VWP |
89550-35360 |
— | ||
|
89550
|
89550
89550-35450 Computer Assy, Emission ControlEMISSION CONTROL [03.1990 - 10.1994] YN85..VWP |
89550-35450 |
US $180.54 |
||
|
8271589134
|
8271589134
82715-89134
Bracket,wiring Harness Clamp
|
82715-89134 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.64 |
||
