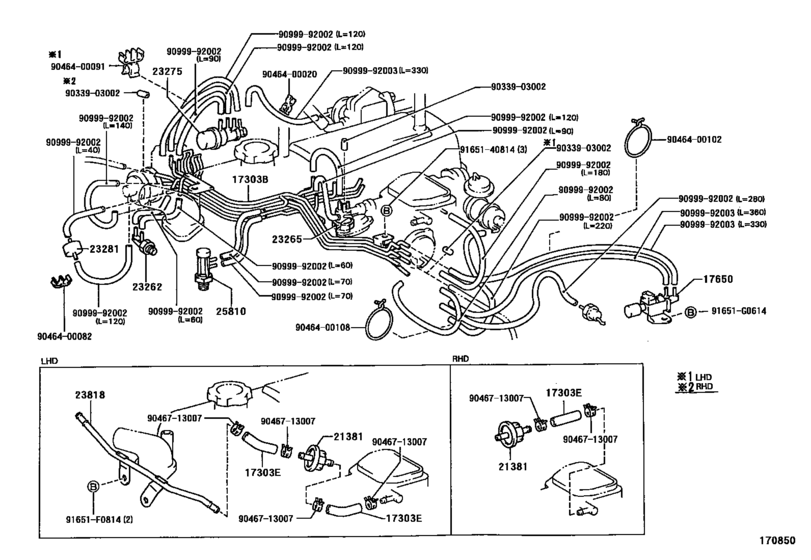

Vacuum Piping ([01.1989 - 03.1990] (8901-9003)2Y..VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-73030 Pipe Sub-Assy, Air, No.1AIR, NO.1 [01.1989 - 03.1990] 2Y..YN85..VWP |
17303-73030 |
US $154.34 |
||
|
17303B
|
17303B
17303-73080 Pipe Sub-Assy, Air, No.1AIR, NO.1 [03.1990 - 10.1994] 2Y..YN85..VWP |
17303-73080 |
US $126.67 |
||
|
17303E
|
17303E
90445-14075 Hose, No.1(For Air Pipe)[01.1989 - 10.1994] 2Y..YN85..VWP..LHD |
90445-14075 |
US $5.39 |
||
|
17650
|
17650
89570-35200
Valve Assy, Vacuum Switching
[01.1989 - 10.1994] 2Y..YN85..VWP |
89570-35200 |
— | ||
|
21381
|
21381
21381-71050
Bimetal, Thermostatic
[01.1989 - 10.1994] 2Y..YN85..VWP |
21381-71050 |
— | ||
|
23262
|
23262
90925-05044
Valve, Bimetal Vacuum Switching, No.1
[01.1989 - 10.1994] 2Y..YN85..VWP |
90925-05044 |
— | ||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[01.1989 - 04.1990] 2Y..YN85..VWP |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[01.1989 - 04.1990] 2Y..YN85..VWP |
90917-11027 |
from US $26.21 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[04.1990 - 10.1994] 2Y..YN85..VWP |
90917-11027 |
from US $26.21 |
||
|
23275
|
23275
90925-03166
Valve, Vacuum Control, No.1
[01.1989 - 10.1994] 2Y..YN85..VWP |
90925-03166 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[01.1989 - 03.1990] 2Y..YN85..VWP |
90925-01014 |
— | ||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[03.1990 - 10.1994] 2Y..YN85..VWP |
90925-01041 |
— | ||
|
23818
|
23818
23818-71011 Pipe, Fuel Vapor FeedFUEL VAPOR FEED [01.1989 - 03.1990] 2Y..YN85..VWP..LHD |
23818-71011 |
US $30.14 |
||
| replacement | |||||
|
23818
|
23818
23818-71012 Pipe, Fuel Vapor FeedFUEL VAPOR FEED [01.1989 - 03.1990] 2Y..YN85..VWP..LHD |
23818-71012 |
US $29.99 |
||
|
23818
|
23818
23818-71012 Pipe, Fuel Vapor FeedFUEL VAPOR FEED [03.1990 - 10.1994] 2Y..YN85..VWP..LHD |
23818-71012 |
US $29.99 |
||
|
25810
|
25810
25820-37010 Valve Assy, Bimetal[01.1989 - 03.1990] 2Y..YN85..VWP |
25820-37010 |
US $72.16 |
||
|
25810
|
25810
90925-02077
Valve, Thermostatic Vacuum Switching, No.1
[03.1990 - 10.1994] 2Y..YN85..VWP |
90925-02077 |
— | ||
|
91651F0814
|
91651F0814
91651-F0814 New Genuine Part |
91651-F0814 |
US $1.16 |
||
|
91651G0614
|
91651G0614
91651-G0614
BOLT,W/WASHER
|
91651-G0614 |
— | ||
| replacement | |||||
|
91651G0614
|
91651G0614
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9046400020
|
9046400020
90464-00020 New Genuine Part |
90464-00020 |
US $3.94 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400091
|
9046400091
90464-00091
New Genuine Part
|
90464-00091 |
— | ||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046400108
|
9046400108
90464-00108 New Genuine Part |
90464-00108 |
from US $2.43 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
