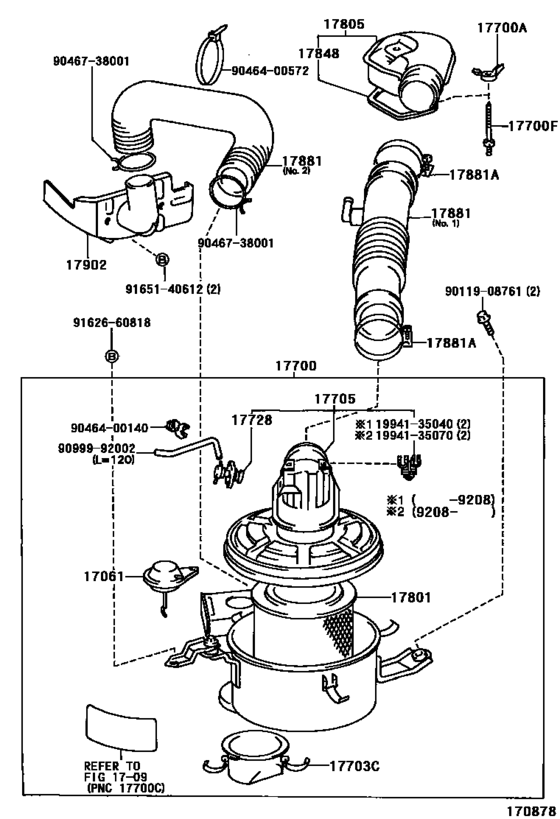

Air Cleaner ([05.1990 - ] (9005- )2Y..YN85..ARL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1992
- Sales region
- General
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX 2WD
- From
- 08.1988
- To
- 08.1992
- Body
- RCB
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-35020 Diaphragm Sub-Assy[05.1990 - 08.1997] 2Y..YN85..ARL |
17061-35020 |
US $49.94 |
||
|
17700
|
17700
17700-35460 Cleaner Assy, Air[05.1990 - 07.1990] 22R..RN85,90..ARL; 2Y..YN85..ARL |
17700-35460 |
US $428.06 |
||
| replacement | |||||
|
17700
|
17700
17700-35461 Cleaner Assy, Air[05.1990 - 07.1990] 22R..RN85,90..ARL; 2Y..YN85..ARL |
17700-35461 |
US $612.98 |
||
|
17700
|
17700
17700-35461 Cleaner Assy, Air[07.1990 - 08.1992] 22R..RN85,90..RHD; 2Y..YN85..ARL |
17700-35461 |
US $612.98 |
||
|
17700
|
17700
17700-54490 Cleaner Assy, Air[08.1988 - 03.1990] 2L..LN8#,90; 2Y,3Y..YN81,85,86..ARL,V |
17700-54490 |
US $428.06 |
||
| replacement | |||||
|
17700
|
17700
17700-54491 Cleaner Assy, AirAIR [08.1988 - 03.1990] 2L..LN8#,90; 2Y,3Y..YN81,85,86..ARL,V |
17700-54491 |
from US $304.61 |
||
|
17700
|
17700
17700-54491 Cleaner Assy, AirAIR [03.1990 - 05.1990] 2Y,3Y..YN81,85,86..ARL,V |
17700-54491 |
from US $304.61 |
||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1988 - 04.1989] 2Y,3Y..YN81,85,86..ARL,V NO.2; 2Y,4Y..YN80,85,87,92..GEN |
90175-06003 |
from US $1.21 |
||
|
17700A
|
17700A
90175-06013
Nut, Wing(For Air Cleaner)
[04.1989 - 08.1991] 2Y,3Y,4Y..YN8#,92 NO.2 |
90175-06013 |
— | ||
|
17700A
|
17700A
94271-00800 Nut, Wing(For Air Cleaner)[08.1988 - 05.1990] 2Y,3Y..YN81,85,86..ARL,V NO.1 |
94271-00800 |
US $1.12 |
||
|
17700F
|
17700F
90116-06024 Bolt, Stud(For Air Cleaner Setting)[08.1988 - 09.1999] 2Y,3Y,4Y..YN8#,9# |
90116-06024 |
US $2.62 |
||
|
17703C
|
17703C
17703-35010
Cap Sub-Assy, Dust
[05.1990 - 08.1997] 2Y..YN85..ARL |
17703-35010 |
— | ||
|
17705
|
17705
17705-35200
Cap Sub-Assy, Air Cleaner
[05.1990 - 08.1992] 22R..RN85,90..RHD; 2Y..YN85..ARL |
17705-35200 |
— | ||
|
17728
|
17728
17728-35020 Valve, ThermostaticTHERMOSTATIC [05.1990 - 08.1997] 2Y..YN85..ARL |
17728-35020 |
US $88.82 |
||
|
17801
|
17801
17801-35030 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [05.1990 - 08.1997] 2Y..YN85..ARL |
17801-35030 |
US $30.23 |
||
|
17801
|
17801
17801-54080 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.1988 - 05.1990] 2Y,3Y..YN81,85,86..ARL,V |
17801-54080 |
from US $60 |
||
|
17805
|
17805
17805-73030 Connector Sub-Assy, Intake AirINTAKE AIR [08.1988 - 08.1991] 2Y,4Y..YN80,85,87,92 |
17805-73030 |
US $122.30 |
||
|
17848
|
17848
17848-35010 Gasket, Air Cleaner To Carburetor[08.1988 - 09.1999] 22R..RN125,8#,90; 2Y,3Y,4Y..YN8#,9# |
17848-35010 |
from US $6.64 |
||
|
17881
|
17881
17881-25013
Hose, Air Cleaner, No.1
[05.1990 - 08.1997] 2Y..YN85..ARL NO.2 |
17881-25013 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-66050
Hose, Air Cleaner, No.5
[05.1990 - 08.1997] 2Y..YN85..ARL NO.2 |
17881-66050 |
— | ||
|
17881
|
17881
17881-72060
Hose, Air Cleaner, No.1
[08.1988 - 05.1990] 2Y..YN85..ARL |
17881-72060 |
— | ||
|
17881
|
17881
17881-72061
Hose, Air Cleaner, No.1
[05.1990 - 08.1997] 2Y..YN85..ARL NO.1 |
17881-72061 |
— | ||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[08.1988 - 08.1991] 2Y,3Y..YN80,81,86;2Y,4Y..YN85,87,92..LHD;2Y,4Y..YN85,87..ARL,TH; 2Y,4Y..YN85,87,92..RHD..GEN W(CYCLONE TYPE AIR CLEANER) |
96111-10780 |
from US $3.53 |
||
|
17902
|
17902
17895-73050 Inlet Sub-Assy, Hot Air Intake, No.1[05.1990 - 08.1991] 2Y,4Y..YN85,87,92..RHD..(ARL,GEN) |
17895-73050 |
US $54.89 |
||
|
1994135040
|
1994135040
19941-35040
Clamp, Resistive Cord, No.1
|
19941-35040 |
— | ||
|
1994135070
|
1994135070
19941-35070
Clamp, Resistive Cord, No.1
|
19941-35070 |
— | ||
|
9011908761
|
9011908761
90119-08761 New Genuine Part |
90119-08761 |
US $2.62 |
||
| replacement | |||||
|
9011908761
|
9011908761
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9046400140
|
9046400140
90464-00140 Clamp, Resistive Cord, No.4 |
90464-00140 |
US $2.62 |
||
|
9046400572
|
9046400572
90464-00572 New Genuine Part |
90464-00572 |
US $2.77 |
||
|
9046738001
|
9046738001
90467-38001
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
90467-38001 |
— | ||
| replacement | |||||
|
9046738001
|
9046738001
90466-41006 Clamp Or Clip, Hose(For Radiator Inlet) |
90466-41006 |
from US $7.98 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162660818
|
9162660818
91626-60818
Bolt (For Transmission Control Cable Bracket)
|
91626-60818 |
— | ||
| replacement | |||||
|
9162660818
|
9162660818
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
