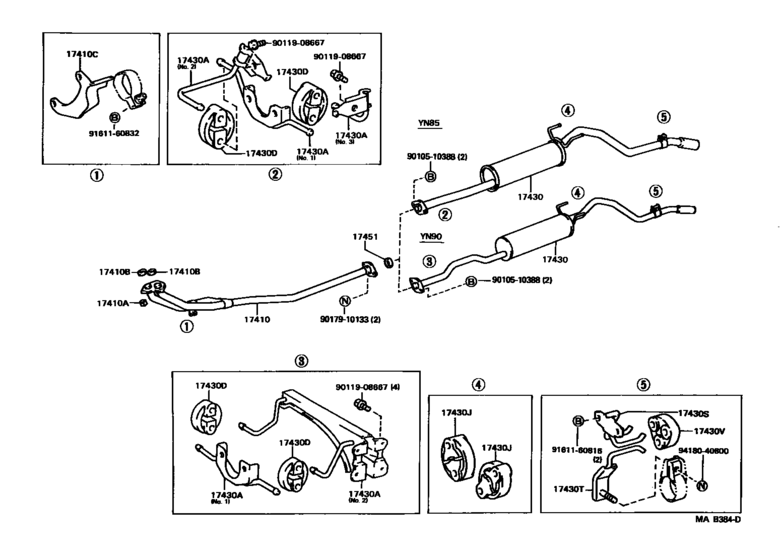

Exhaust Pipe ([08.1988 - 09.1994] (8808-9409)2Y..JPP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- HILUX
- From
- 08.1988
- To
- 08.1994
- Body
- RCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (JPP)
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-71130 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1988 - 08.1994] 2Y..YN85,90..JPP |
17410-71130 |
from US $118.93 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1988 -] 22RE,2L#,3VZE,2Y,4Y..LN10#,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1988 -] 22RE,2L#,3VZE,2Y,4Y..LN10#,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06038 Gasket, Exhaust Pipe[08.1988 - 05.1995] 22RE,2Y,4Y..RN106,110,YN106,110,85,90..JPP |
90917-06038 |
from US $2.30 |
||
|
17410C
|
17410C
17571-71050 Bracket, Exhaust Pipe Front (For Front)[08.1988 - 08.1994] 2Y..YN85,90..JPP |
17571-71050 |
US $20.68 |
||
|
17430
|
17430
17430-72240
Pipe Assy, Exhaust, Tail
[08.1988 - 08.1994] 2Y..YN85..JPP |
17430-72240 |
— | ||
|
17430A
|
17430A
17503-71010 Bracket, Exhaust Tail Pipe(For Front)[08.1988 - 08.1994] 2Y..YN85..JPP NO.1 |
17503-71010 |
US $29.27 |
||
|
17430A
|
17430A
17587-35010
Bracket, Exhaust Tail Pipe(For Front)
[08.1988 -] 2L,2Y..LN85,YN85..JPP..T1 NO.2 |
17587-35010 |
— | ||
|
17430A
|
17430A
17588-35010
Bracket, Exhaust Tail Pipe(For Front)
[08.1988 -] 2L,2Y..LN85,YN85..JPP NO.3 |
17588-35010 |
— | ||
|
17430D
|
17430D
17563-35020 Bolt Or Ring, Exhaust Tail Pipe (For Front)[08.1988 -] 22RE,1KZT,2L#,3VZE,2Y,4Y..KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85 ,90..JPP |
17563-35020 |
from US $9.61 |
||
|
17430J
|
17430J
17565-35010 Bolt Or Ring, Exhaust Tail Pipe(For Center)[08.1988 -] 22RE,2L#,3VZE,2Y,4Y..LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
17565-35010 |
from US $9.71 |
||
|
17430S
|
17430S
17575-71030 Bracket, Exhaust Tail Pipe (For Rear)[08.1988 -] 2L,2Y..LN85,90,YN85,90..JPP |
17575-71030 |
US $12.38 |
||
|
17430T
|
17430T
17585-71010
Cushion, Exhaust Tail Pipe (For Rear)
[08.1988 -] 2L#,2Y,4Y..LN10#,110,130,85,90,YN106,110,85,90..JPP |
17585-71010 |
— | ||
|
17430V
|
17430V
17566-35010 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1988 -] 2L,2Y..LN85,90,YN85,90..JPP |
17566-35010 |
US $18.35 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[08.1988 - 12.1989] 2Y..YN85,90..JPP |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[08.1988 - 12.1989] 2Y..YN85,90..JPP |
90917-06039 |
from US $2.26 |
||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[12.1989 - 08.1994] 2Y..YN85,90..JPP |
90917-06039 |
from US $2.26 |
||
|
9010510388
|
9010510388
90105-10388 BOLT |
90105-10388 |
from US $0.92 |
||
|
9011908667
|
9011908667
90119-08667 BOLT |
90119-08667 |
from US $1.23 |
||
|
9017910133
|
9017910133
90179-10133 NUT |
90179-10133 |
US $2.15 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.06 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
