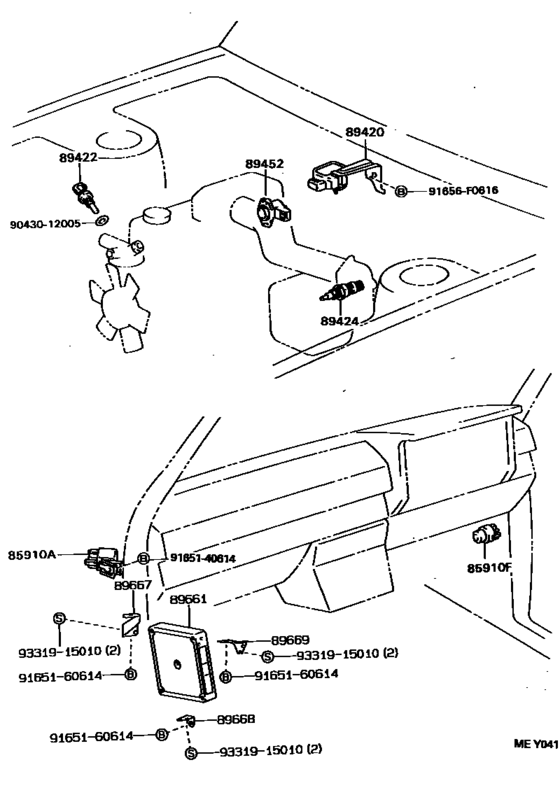

Electronic Fuel Injection System ([08.1994 - ] (9408- )YN107,8#) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- YN86
- grade
- SDX
- body
- RCB
- ENGINE
- 3YE
- TRANSMISSION
- ATM
- Model
- HILUX
- From
- 08.1994
- To
- 08.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-35010 Relay Assy, Circuit Opening (For Efi)[04.1989 -] VZN130,YN107,130,81,86..EFI |
85910-35010 |
US $93.48 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[08.1991 -] VZN130,YN107,81,86..EFI |
90987-02009 |
from US $26.15 |
||
|
89420
|
89420
89420-35040 Sensor Assy, Vacuum[04.1989 -] YN107,130,81,86..EFI |
89420-35040 |
US $126.67 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.1994 -] YN107,8# ENGINE BLOCK |
89422-35010 |
from US $44.58 |
||
|
89424
|
89424
89424-24010 Sensor, Inlet Air Temperature (For E.f.i.)[08.1994 -] YN107,8# |
89424-24010 |
US $116.44 |
||
|
89452
|
89452
89452-22090 Sensor, Throttle Position[08.1994 - 08.1997] YN107,8# |
89452-22090 |
from US $131.47 |
||
|
89661
|
89661
89661-3D110
Computer, Engine Control
[08.1994 -] YN107,8# |
89661-3D110 |
— | ||
|
89667
|
89667
89667-35040 Bracket, Emission Control Computer, No.1[04.1989 -] VZN130,YN107,130,81,86..EFI |
89667-35040 |
US $6.99 |
||
|
89668
|
89668
89668-35060 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1990 -] VZN130,YN107,81,86..EFI |
89668-35060 |
US $4.95 |
||
|
89669
|
89669
89669-35040 Bracket, Emission Control Computer[04.1989 -] VZN130,YN107,130,81,86..EFI |
89669-35040 |
US $4.66 |
||
|
91656F0616
|
91656F0616
91656-F0616
New Genuine Part
|
91656-F0616 |
— | ||
| replacement | |||||
|
91656F0616
|
91656F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
