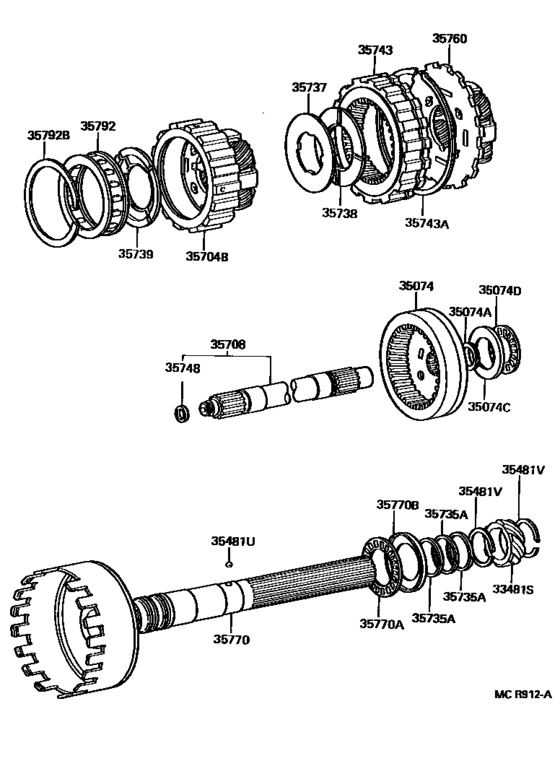

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1994 - ] A44D (9408- )YN86..4FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- YN86
- grade
- SDX
- body
- RCB
- ENGINE
- 3YE
- TRANSMISSION
- ATM
- Model
- HILUX
- From
- 08.1994
- To
- 08.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481S
|
33481S
33481-25021 Gear, Speedometer Drive (Atm)[08.1994 -] YN86..4FC 歯数＝５，マーク ５Ｘ１７−１９ |
33481-25021 |
US $19.74 |
||
|
35074
|
35074
35074-30030 Gear Sub-Assy, Rear Planetary Ring[09.1988 -] LN85,YN86..4FC |
35074-30030 |
US $117.94 |
||
|
35074A
|
35074A
90522-20037 Ring, Set (For Rear Planetary Ring Gear)[09.1988 -] LN85,YN86..4FC |
90522-20037 |
US $2.33 |
||
|
35074C
|
35074C
35789-22020 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)[09.1988 -] LN85,YN86..4FC |
35789-22020 |
US $8.91 |
||
|
35074D
|
35074D
90374-28014 Bearing, Thrust Needle Roller(For Overdrive)[09.1988 -] LN85,YN86..4FC |
90374-28014 |
US $4.89 |
||
|
35481U
|
35481U
90360-06004 Ball, Detent(For Gear Shift Head No.4)[09.1988 -] LN85,YN86..4FC |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
35481U
|
35481U
90080-36191
Ball, Check Valve
[09.1988 -] LN85,YN86..4FC |
90080-36191 |
— | ||
|
35481V
|
35481V
90520-28009 Ring Or Spacer (For Mtm Speedometer Drive Gear)[09.1988 - 08.1997] LN85,YN86..4FC 厚さ＝１．５０，外径＝３３．８ |
90520-28009 |
from US $1.48 |
||
|
35704B
|
35704B
35704-30040 Carrier Sub-Assy, Planetary W/lock Gear[08.1994 -] YN86..4FC |
35704-30040 |
US $407.68 |
||
|
35708
|
35708
35708-30041 Shaft Sub-Assy, Planetary Intermediate[09.1988 -] LN85,YN86..4FC |
35708-30041 |
US $155.79 |
||
|
35735A
|
35735A
35735-22010 Ring, Planetary Output Snap[09.1988 - 08.1997] LN85,YN86..4FC |
35735-22010 |
US $9.32 |
||
|
35737
|
35737
35737-22010 Washer, Planetary Carrier Thrust[08.1994 -] YN86..4FC |
35737-22010 |
US $7.57 |
||
|
35738
|
35738
35738-30030 Washer, Planetary Carrier Thrust, No.2[08.1994 - 08.1997] YN86..4FC |
35738-30030 |
US $6.41 |
||
|
35739
|
35739
35739-30020 Washer, Planetary Carrier Thrust, No.3[08.1994 -] YN86..4FC |
35739-30020 |
US $6.41 |
||
|
35743
|
35743
35743-30010 Gear, Front Planetary Ring[09.1988 -] LN85,YN86..4FC |
35743-30010 |
US $96.10 |
||
|
35743A
|
35743A
90520-99121 Ring, Shaft Snap (For Front Planetary Ring Gear)[09.1988 -] LN85,YN86..4FC |
90520-99121 |
US $5.53 |
||
|
35748
|
35748
35748-30010 Ring, Intermediate Shaft Sleeve Oil Seal[09.1988 -] LN85,YN86..4FC |
35748-30010 |
US $6.41 |
||
|
35760
|
35760
35760-30040 Gear Assy, Rear Planetary[08.1994 - 08.1997] YN86..4FC |
35760-30040 |
US $304.30 |
||
|
35770
|
35770
35770-30010 Shaft Assy, Output[09.1988 -] LN85,YN86..4FC |
35770-30010 |
US $666.85 |
||
|
35770A
|
35770A
90374-38013 Bearing, Thrust (For Output Shaft)[09.1988 -] LN85,YN86..4FC |
90374-38013 |
US $9.46 |
||
|
35770B
|
35770B
35789-22040 Race, Thrust Bearing (For Output Shaft)[09.1988 -] LN85,YN86..4FC |
35789-22040 |
US $8.15 |
||
|
35792
|
35792
35792-30030 Clutch, 1 Way, No.2[08.1994 - 08.1997] YN86..4FC |
35792-30030 |
US $138.32 |
||
|
35792B
|
35792B
90521-79148 Ring, Hole Snap(For Overdrive Planetary Gear)[09.1988 - 08.1997] LN85,YN86..4FC |
90521-79148 |
US $2.62 |
||
