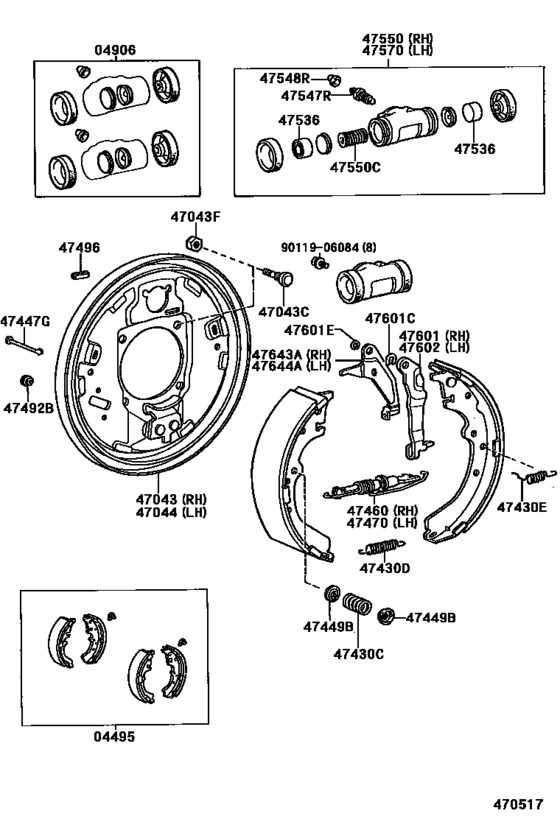

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (9408- )LN8#,YN8#..T1,T3,TW1) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- YN86
- grade
- SDX
- body
- RCB
- ENGINE
- 3YE
- TRANSMISSION
- ATM
- Model
- HILUX
- From
- 08.1994
- To
- 08.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04495
|
04495
04495-35200 Shoe Kit, Rear Brake[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
04495-35200 |
US $180.54 |
||
| replacement | |||||
|
04495
|
04495
04495-35240 Shoe Kit, Rear Brake[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
04495-35240 |
from US $87.81 |
||
|
04906
|
04906
04906-30120 Cup Kit, Rear Wheel Cylinder[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
04906-30120 |
US $16.16 |
||
|
47043
|
47043
47043-26120 Plate Sub-Assy, Brake Backing, Rear Rh[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47043-26120 |
US $59.93 |
||
|
47043C
|
47043C
90114-10002 Bolt, Serration (For Rear Axle Flange)[08.1991 - 08.1997] KZN130,LN13#,81,86,VZN130,YN81,86..2D,4D,T1,T3,TW1 ＊１０−１．２５ＰＸ３７−１８．５ |
90114-10002 |
from US $1.33 |
||
|
47043F
|
47043F
90179-10067 Nut (For Rear Axle Shaft)[09.1988 - 08.1997] KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
90179-10067 |
from US $1.61 |
||
|
47044
|
47044
47044-26120 Plate Sub-Assy, Brake Backing, Rear Lh[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47044-26120 |
US $59.93 |
||
|
47430C
|
47430C
90501-20012 Spring(For Front Brake Shoe Hold Down)[09.1988 -] KZN130,LN10#,112,13#,81,86,VZN130,YN10#,130,81,86..2D,4D,T1,T3,TW1 |
90501-20012 |
from US $2.15 |
||
|
47430D
|
47430D
90506-18299 Spring, Tension(For Rear Brake Shoe Return)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
90506-18299 |
US $1.40 |
||
|
47430E
|
47430E
90507-12036 Spring, Tension(For Rear Brake Shoe Return)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
90507-12036 |
from US $0.70 |
||
|
47447G
|
47447G
47447-20010 Pin, Shoe Hold Down Spring(For Front Brake)[09.1988 -] LN8#,YN8# |
47447-20010 |
from US $1.37 |
||
|
47449B
|
47449B
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[09.1988 -] KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
47449-30020 |
from US $1.31 |
||
|
47460
|
47460
47061-35020 Strut Set, Parking Brake Shoe, Rh[08.1994 -] LN8#,YN8# |
47061-35020 |
from US $32.76 |
||
|
47470
|
47470
47062-35020 Strut Set, Parking Brake Shoe, Rh[08.1994 -] LN8#,YN8# |
47062-35020 |
from US $32.74 |
||
|
47492B
|
47492B
47492-28010 Plug, Shoe Inspection(For Rear Brake)[09.1988 -] KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
47492-28010 |
from US $1.52 |
||
|
47496
|
47496
47491-20011 Plug, Hole(For Rear Brake)[09.1988 -] KZN130,LN10#,112,13#,81,86,VZN130,YN10#,130,81,86..2D,4D,T1,T3,TW1 |
47491-20011 |
from US $2.07 |
||
|
47536
|
47536
47051-30040 Piston, Wheel Brake Cylinder(For Rear Brake)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47051-30040 |
US $10.05 |
||
|
47547R
|
47547R
47547-20030 Plug, Bleeder(For Power Steering By-Pass Valve)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47547-20030 |
from US $4.12 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[09.1988 -] KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
31478-30010 |
from US $1.52 |
||
|
47550
|
47550
47550-30140 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47550-30140 |
US $68.58 |
||
| replacement | |||||
|
47550
|
47550
47550-26130 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47550-26130 |
from US $80.36 |
||
|
47550C
|
47550C
47509-30010 Spring, Compression(For Rear Wheel Brake Cylinder)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47509-30010 |
US $8.01 |
||
|
47570
|
47570
47550-30140 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47550-30140 |
US $68.58 |
||
| replacement | |||||
|
47570
|
47570
47550-26130 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1994 -] LN8#,YN8#..T1,T3,TW1 |
47550-26130 |
from US $80.36 |
||
|
47601
|
47601
47611-26050 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[08.1994 - 08.1997] LN8#,YN8#..T1,T3,TW1 |
47611-26050 |
US $15.20 |
||
|
47601C
|
47601C
90213-07010 Washer, Type C(For Parking Brake Shoe)[09.1988 -] KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 厚さ＝１．６ |
90213-07010 |
from US $0.47 |
||
|
47601E
|
47601E
96160-00500 Ring, E(For Over Center Lever)[09.1988 -] KZN130,LN10#,112,13#,81,86,VZN130,YN10#,130,81,86..2D,4D,T1,T3,TW1 |
96160-00500 |
from US $1.01 |
||
|
47602
|
47602
47612-26050 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[08.1994 - 08.1997] LN8#,YN8#..T1,T3,TW1 |
47612-26050 |
from US $12.93 |
||
|
47643A
|
47643A
47643-26010 Lever, Rear Brake Automatic Adjust, Rh[08.1994 - 08.1997] LN8#,YN8#..T1,T3,TW1 |
47643-26010 |
US $4.95 |
||
| replacement | |||||
|
47643A
|
47643A
47643-26020 Lever, Rear Brake Automatic Adjust, Rh[08.1994 - 08.1997] LN8#,YN8#..T1,T3,TW1 |
47643-26020 |
US $2.91 |
||
|
47644A
|
47644A
47644-26010 Lever, Rear Brake Automatic Adjust, Lh[08.1994 - 08.1997] LN8#,YN8#..T1,T3,TW1 |
47644-26010 |
US $4.95 |
||
| replacement | |||||
|
47644A
|
47644A
47644-26020 Lever, Rear Brake Automatic Adjust, Lh[08.1994 - 08.1997] LN8#,YN8#..T1,T3,TW1 |
47644-26020 |
from US $2.91 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.99 |
||
