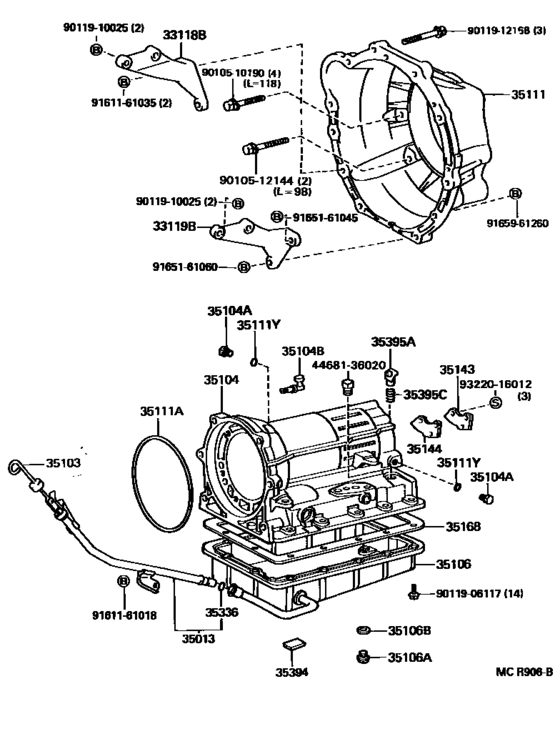

Transmission Case & Oil Pan (Atm) ([08.1994 - ] A44D (9408- )YN86..4FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- YN86
- grade
- SDX
- body
- RCB
- ENGINE
- 3YE
- TRANSMISSION
- ATM
- Model
- HILUX
- From
- 08.1994
- To
- 08.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-28010
Plate, Stiffener, Rh(Mtm)
[04.1989 -] YN130,86..4FC |
33118-28010 |
— | ||
|
33119B
|
33119B
33119-28010 Plate, Stiffener, Lh(Mtm)[04.1989 -] YN130,86..4FC |
33119-28010 |
US $20.53 |
||
|
35013
|
35013
35013-35260 Tube Sub-Assy, Transmission Oil Filler[08.1994 - 08.1997] YN86..4FC |
35013-35260 |
US $31.01 |
||
|
35103
|
35103
35103-35280 Gage Sub-Assy, Transmission Oil Level[08.1994 - 08.1997] YN86..4FC |
35103-35280 |
US $15.43 |
||
|
35104
|
35104
35104-26021 Case Sub-Assy, Automatic Transmission[09.1988 - 08.1997] LN85,YN86..4FC |
35104-26021 |
US $981.34 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.1991 - 08.1997] KZN130,LN108,112,130..4FC RH(RR) OR LH; LN85,VZN130,YN86..4FC |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03108 Plug, Breather, No.1 (Atm)[09.1988 - 08.1997] LN85,YN86..4FC |
90930-03108 |
US $19.70 |
||
|
35106
|
35106
35106-22090 Pan Sub-Assy, Automatic Transmission Oil[08.1994 - 08.1997] YN86..4FC |
35106-22090 |
US $84.45 |
||
| replacement | |||||
|
35106
|
35106
35106-30061
Pan Sub-Assy, Automatic Transmission Oil
[08.1994 - 08.1997] YN86..4FC |
35106-30061 |
— | ||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[09.1988 - 08.1997] KZN130,LN108,112,130,85,VZN130,YN130,86..4FC |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[09.1988 - 08.1997] KZN130,LN108,112,130,85,VZN130,YN130,86..4FC |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[09.1988 - 08.1997] KZN130,LN108,112,130,85,VZN130,YN130,86..4FC |
35178-30010 |
from US $1.77 |
||
|
35111
|
35111
35111-30120 Housing, Automatic Transmission[08.1994 - 08.1997] YN86..4FC |
35111-30120 |
US $690.14 |
||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[09.1988 -] LN85,YN86..4FC |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[09.1988 - 08.1997] KZN130,LN108,112,130,85,VZN130,YN130,86..4FC |
90301-06196 |
from US $2.24 |
||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[09.1988 -] LN85,YN86..4FC |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[12.1990 -] LN85,YN86..4FC |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[09.1988 -] LN85,YN86..4FC |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[09.1988 -] KZN130,LN108,112,130,85,YN130,86..4FC |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1994 - 08.1997] YN86..4FC |
35394-30011 |
from US $5.62 |
||
|
35395A
|
35395A
35395-40010 Strainer, Governor Oil[08.1991 -] LN85,YN86..4FC |
35395-40010 |
US $12.58 |
||
|
35395C
|
35395C
90501-03005 Spring, Compression (For Check Ball Body)[08.1994 - 01.1995] YN86..4FC |
90501-03005 |
from US $0.79 |
||
|
4468136020
|
4468136020
44681-36020 Plug, Automatic Transmission Case |
44681-36020 |
US $2.91 |
||
|
9010510190
|
9010510190
90105-10190 New Genuine Part |
90105-10190 |
US $3.20 |
||
|
9010512144
|
9010512144
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011906117
|
9011906117
90119-06117
Bolt (For Automatic Transmission Oil Pan)
|
90119-06117 |
— | ||
| replacement | |||||
|
9011906117
|
9011906117
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90119-06173 |
from US $0.76 |
||
|
9011910025
|
9011910025
90119-10025 Bolt (For Transmission Control Cable Bracket) |
90119-10025 |
US $1.89 |
||
| replacement | |||||
|
9011910025
|
9011910025
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9165161045
|
9165161045
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9165161060
|
9165161060
91651-61060 New Genuine Part |
91651-61060 |
US $0.96 |
||
|
9165961260
|
9165961260
91659-61260 Bolt(For Transaxle & Engine Setting) |
91659-61260 |
US $3.64 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
