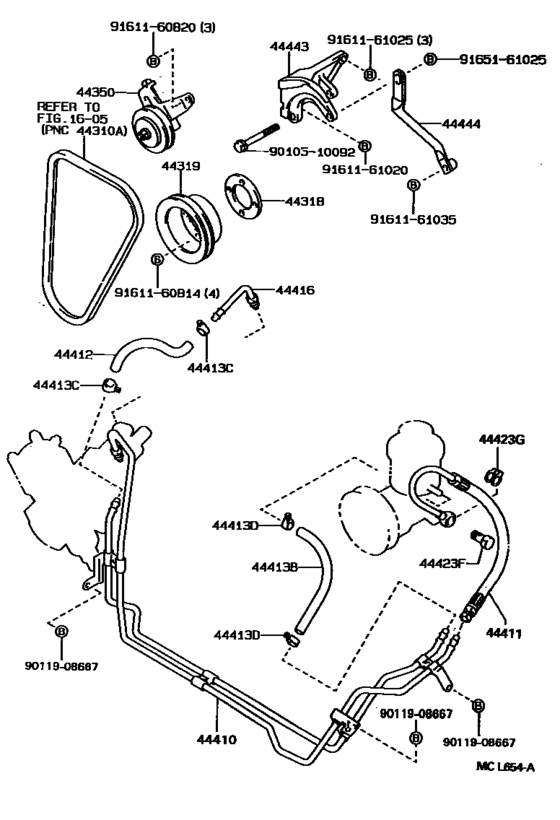

Power Steering Tube ([08.1990 - ] (9008- )YN8#) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- YN86
- grade
- SDX
- body
- RCB
- ENGINE
- 3YE
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 08.1994
- To
- 08.1997
- Gear Shift Type
- 5H
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44318
|
44318
44318-28012 Spacer, Vane Pump Drive Pulley[08.1990 -] YN10#,130,8# |
44318-28012 |
US $4.89 |
||
|
44319
|
44319
44319-28013 Pulley, Vane Pump Drive[08.1990 -] YN10#,130,8# |
44319-28013 |
US $24.98 |
||
|
44350
|
44350
44350-28011 Pulley Assy, Power Steering Idle[08.1990 -] YN10#,130,8# |
44350-28011 |
US $249.60 |
||
|
44410
|
44410
44410-35360 Tube Assy, Pressure Feed[08.1990 -] YN8# |
44410-35360 |
from US $147.21 |
||
|
44411
|
44411
44411-35370 Hose, Pressure Feed[08.1990 -] YN8# |
44411-35370 |
US $149.97 |
||
|
44412
|
44412
90445-18138 Hose, Return[08.1990 -] YN8# |
90445-18138 |
from US $6.73 |
||
|
44413B
|
44413B
90447-18025
Hose(For Reservoir Tank Inlet)
[08.1990 -] YN8# |
90447-18025 |
— | ||
|
44413C
|
44413C
90467-16008
Clip(For Oil Return Hose)
[04.1994 -] LN10#,112,8#,YN10#,8# |
90467-16008 |
— | ||
| replacement | |||||
|
44413C
|
44413C
90467-16019 Clip(For Return No.1)[04.1994 -] LN10#,112,8#,YN10#,8# |
90467-16019 |
from US $2.40 |
||
|
44413D
|
44413D
90467-16008
Clip(For Oil Return Hose)
[04.1994 -] LN10#,112,8#,YN10#,8# |
90467-16008 |
— | ||
| replacement | |||||
|
44413D
|
44413D
90467-16019 Clip(For Return No.1)[04.1994 -] LN10#,112,8#,YN10#,8# |
90467-16019 |
from US $2.40 |
||
|
44416
|
44416
44416-35040
Tube, Return(For Steering Gear Outlet)
[08.1990 -] LN8#,YN8# |
44416-35040 |
— | ||
|
44423F
|
44423F
96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)[04.1994 -] KZN130,VZN130,YN10#,8# |
96341-41603 |
US $5.56 |
||
|
44423G
|
44423G
44327-12010 Gasket(For Pressure Hose)[04.1994 -] KZN130,VZN130,YN10#,8# |
44327-12010 |
from US $4.54 |
||
|
44443
|
44443
44443-28021 Bracket, Pump[09.1988 -] YN10#,130,81,86 |
44443-28021 |
US $108.33 |
||
|
44444
|
44444
44444-27010
Stay, Pump, Rear
[08.1990 -] YN10#,130,8# |
44444-27010 |
— | ||
|
9010510092
|
9010510092
90105-10092 Bolt(For Alternator) |
90105-10092 |
US $4.66 |
||
|
9011908667
|
9011908667
90119-08667 BOLT |
90119-08667 |
from US $1.23 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
