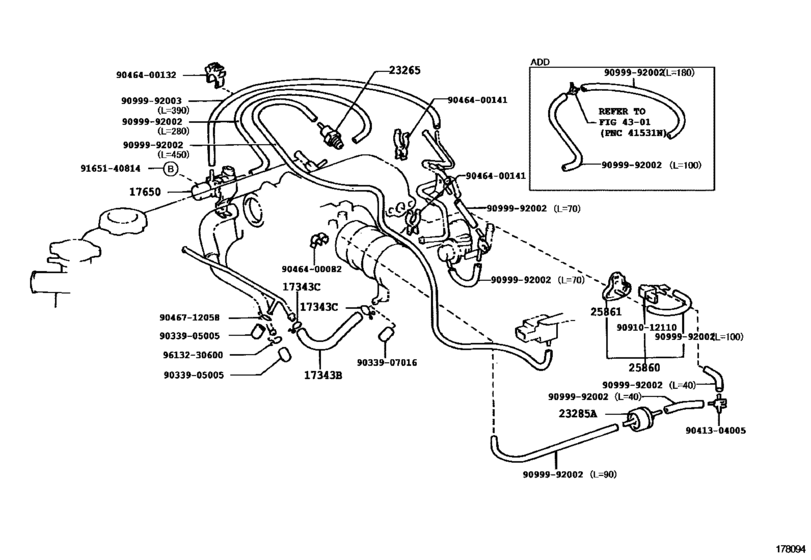

Vacuum Piping ([08.1994 - ] (9408- )3YE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- YN86
- grade
- SDX
- body
- RCB
- ENGINE
- 3YE
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 08.1994
- To
- 08.1997
- Gear Shift Type
- 5H
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17343B
|
17343B
90445-12211 Hose, No.3(For Idle-Up)[04.1989 -] 3YE..YN107,130,81,86 |
90445-12211 |
US $6.99 |
||
|
17343C
|
17343C
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)[04.1989 -] 3YE..YN107,130,81,86 |
90467-12058 |
from US $0.72 |
||
|
17650
|
17650
90910-12038
Valve Assy, Vacuum Switching
[08.1994 -] 3YE..YN107,8# |
90910-12038 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[04.1989 -] 3YE..YN107,130,81,86 |
90917-11022 |
from US $17.14 |
||
|
23285A
|
23285A
90917-10080
Filter, Gas, No.1
[08.1994 -] 3YE..YN107,8# |
90917-10080 |
— | ||
|
25860
|
25860
25860-73071 Valve Assy, Vacuum Switching, No.1[08.1994 -] 3YE..YN107,8# |
25860-73071 |
US $106.29 |
||
|
25861
|
25861
25861-73031 Bracket, Vacuum Switching Valve[08.1994 -] 3YE..YN107,8# |
25861-73031 |
US $38.29 |
||
|
9033905005
|
9033905005
90339-05005 New Genuine Part |
90339-05005 |
US $3.05 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.87 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400132
|
9046400132
90464-00132 New Genuine Part |
90464-00132 |
US $3.20 |
||
|
9046400141
|
9046400141
90464-00141 New Genuine Part |
90464-00141 |
US $2.62 |
||
|
9046712058
|
9046712058
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90467-12058 |
from US $0.72 |
||
|
9091012110
|
9091012110
90910-12110
Valve Assy, Vacuum Switching
|
90910-12110 |
— | ||
| replacement | |||||
|
9091012110
|
9091012110
90910-12218
Valve Assy, Vacuum Switching
|
90910-12218 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
