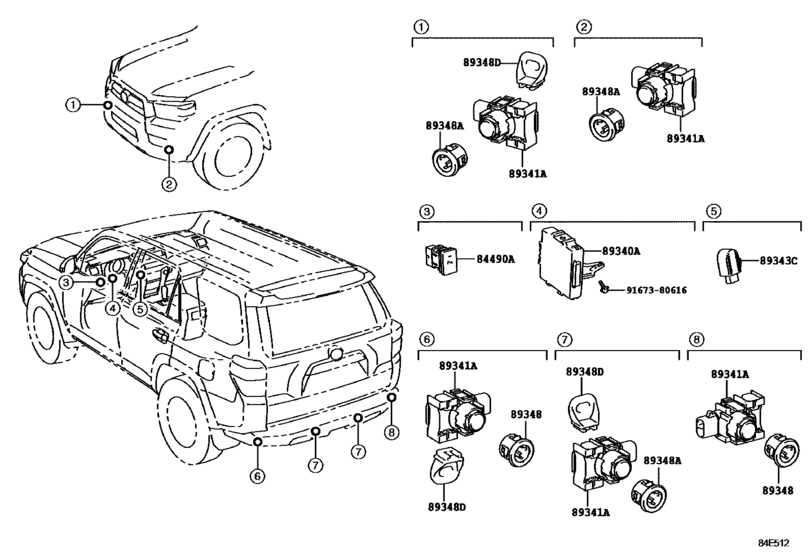

Clearance & Back Sonar ([08.2013 - ] (1308- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84490A
|
84490A
84490-35030
Switch Assy, Back Sonar Or Clearance Sonar
[08.2013 - 01.2015] GRN28# LIMITED PACKAGE |
84490-35030 |
— | ||
| replacement | |||||
|
84490A
|
84490A
84490-35031
Switch Assy, Back Sonar Or Clearance Sonar
[08.2013 - 01.2015] GRN28# LIMITED PACKAGE |
84490-35031 |
— | ||
|
84490A
|
84490A
84490-35031
Switch Assy, Back Sonar Or Clearance Sonar
[02.2015 -] GRN28# LIMITED PACKAGE |
84490-35031 |
— | ||
|
89340A
|
89340A
89340-35060
Computer Assy, Clearance Warning
[08.2013 -] GRN28# LIMITED PACKAGE |
89340-35060 |
— | ||
|
89341A
|
89341A
89341-64010-A0 Sensor, Ultrasonic, No.1[08.2013 -] GRN28# LIMITED PACKAGE,WHITE PEARL CS.,070 |
89341-64010-A0 |
US $148.51 |
||
|
89341A
|
89341A
89341-64010-B1
Sensor, Ultrasonic, No.1
[08.2013 -] GRN28# LIMITED PACKAGE,GRAY ME.,1G3 |
89341-64010-B1 |
— | ||
|
89341A
|
89341A
89341-64010-B2
Sensor, Ultrasonic, No.1
[08.2013 -] GRN28# LIMITED PACKAGE,SILVER ME.,1F7 |
89341-64010-B2 |
— | ||
|
89341A
|
89341A
89341-64010-C4 Sensor, Ultrasonic, No.1[08.2013 -] GRN28# LIMITED PACKAGE,ATTITUDE BLACK MC.,218 |
89341-64010-C4 |
from US $118.08 |
||
|
89341A
|
89341A
89341-64010-D0
Sensor, Ultrasonic, No.1
[08.2013 -] GRN28# LIMITED PACKAGE,RED M.M.,3R3 |
89341-64010-D0 |
— | ||
|
89341A
|
89341A
89341-64010-J0
Sensor, Ultrasonic, No.1
[08.2013 -] GRN28# LIMITED PACKAGE,DK.BLUE MC.,8S6 |
89341-64010-J0 |
— | ||
|
89343C
|
89343C
89343-72010 Buzzer, Clearance Warning, No.1[08.2013 -] GRN28# LIMITED PACKAGE |
89343-72010 |
US $23.28 |
||
|
89348
|
89348
89348-30030-A1 Clip, Ultrasonic Sensor[08.2013 -] GRN28# LIMITED PACKAGE,WHITE PEARL CS.,070 |
89348-30030-A1 |
from US $6.65 |
||
|
89348
|
89348
89348-30030-B3
Retainer, Ultrasonic Sensor, No.1
[08.2013 -] GRN28# LIMITED PACKAGE,GRAY ME.,1G3 |
89348-30030-B3 |
— | ||
|
89348
|
89348
89348-30030-B4 Retainer, Ultrasonic Sensor, No.2[08.2013 -] GRN28# LIMITED PACKAGE,SILVER ME.,1F7 |
89348-30030-B4 |
US $8.78 |
||
|
89348
|
89348
89348-30030-C6
Retainer, Ultrasonic Sensor, No.1
[08.2013 -] GRN28# LIMITED PACKAGE,ATTITUDE BLACK MC.,218 |
89348-30030-C6 |
— | ||
|
89348
|
89348
89348-30030-D1 Bezel, Ultrasonic Sensor, No.1[08.2013 -] GRN28# LIMITED PACKAGE,RED M.M.,3R3 |
89348-30030-D1 |
US $5.82 |
||
|
89348
|
89348
89348-30030-J2 Retainer, Ultrasonic Sensor, No.2[08.2013 -] GRN28# LIMITED PACKAGE,DK.BLUE MC.,8S6 |
89348-30030-J2 |
US $8.78 |
||
|
89348A
|
89348A
89348-64030-A0 Bezel, Ultrasonic Sensor, No.1[08.2013 -] GRN28# LIMITED PACKAGE,WHITE PEARL CS.,070 |
89348-64030-A0 |
from US $7.31 |
||
|
89348A
|
89348A
89348-64030-B1
Retainer, Ultrasonic Sensor, No.2
[08.2013 -] GRN28# LIMITED PACKAGE,GRAY ME.,1G3 |
89348-64030-B1 |
— | ||
|
89348A
|
89348A
89348-64030-B2 Bezel, Ultrasonic Sensor, No.1[08.2013 -] GRN28# LIMITED PACKAGE,SILVER ME.,1F7 |
89348-64030-B2 |
US $8.78 |
||
|
89348A
|
89348A
89348-64030-C3
Retainer, Ultrasonic Sensor, No.2
[08.2013 -] GRN28# LIMITED PACKAGE,ATTITUDE BLACK MC.,218 |
89348-64030-C3 |
— | ||
|
89348A
|
89348A
89348-64030-D0
Retainer, Ultrasonic Sensor, No.2
[08.2013 -] GRN28# LIMITED PACKAGE,RED M.M.,3R3 |
89348-64030-D0 |
— | ||
|
89348A
|
89348A
89348-64030-J0
Retainer, Ultrasonic Sensor, No.2
[08.2013 -] GRN28# LIMITED PACKAGE,DK.BLUE MC.,8S6 |
89348-64030-J0 |
— | ||
|
89348D
|
89348D
89348-35030 Clip, Ultrasonic SensorULTRASONIC SENSOR [08.2013 -] GRN28# LIMITED PACKAGE |
89348-35030 |
from US $1.48 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
