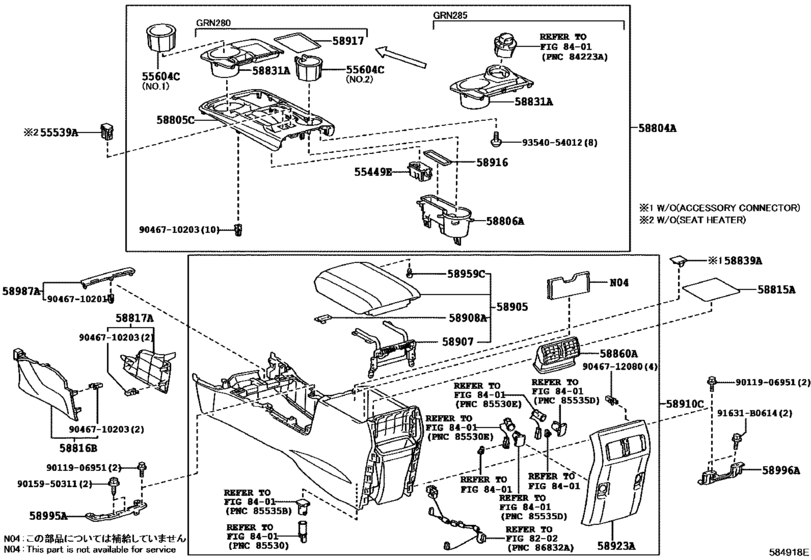

Console Box & Bracket ([08.2013 - ] (1308- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55449E
|
55449E
58814-35010
Base, Switch
[08.2009 - 08.2013] GRN28# |
58814-35010 |
— | ||
|
55539A
|
55539A
55539-58060-C0 Cover, Spare Switch Hole[08.2009 - 08.2013] GRN28# BLACK |
55539-58060-C0 |
from US $4.88 |
||
|
55604C
|
55604C
66991-35020
Holder Sub-Assy, Console Box Cup
[08.2009 - 08.2013] GRN28# NO.1 |
66991-35020 |
— | ||
| replacement | |||||
|
55604C
|
55604C
66991-35030
Holder Sub-Assy, Console Box Cup
[08.2009 - 08.2013] GRN28# NO.1 |
66991-35030 |
— | ||
|
55604C
|
55604C
66991-35030
Holder Sub-Assy, Console Box Cup
[08.2013 -] GRN28# NO.1 |
66991-35030 |
— | ||
|
55604C
|
55604C
66992-35020 Holder Assy, Cup, No.2 RhCUP, NO.2 RH [08.2009 - 08.2013] GRN28# NO.2 |
66992-35020 |
US $22.01 |
||
|
55604C
|
55604C
66992-35030
Holder Sub-Assy, Console Box Cup
[08.2013 -] GRN28# NO.2 |
66992-35030 |
— | ||
|
58804A
|
58804A
58804-35450
Panel Sub-Assy, Console, Upper
[08.2009 - 08.2013] GRN280 |
58804-35450 |
— | ||
|
58804A
|
58804A
58804-35510
Panel Sub-Assy, Console, Upper
[08.2013 -] GRN280 |
58804-35510 |
— | ||
|
58805C
|
58805C
58805-35140
Panel Sub-Assy, Console, Upper Rear
[08.2013 -] GRN28# |
58805-35140 |
— | ||
|
58806A
|
58806A
58806-35010
Pocket Sub-Assy, Console Box
[08.2013 -] GRN28# |
58806-35010 |
— | ||
|
58815A
|
58815A
58815-35030
Carpet, Console Box
[08.2009 - 08.2013] GRN28# |
58815-35030 |
— | ||
|
58816B
|
58816B
58816-35040-B0
Insert, Console Box
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
58816-35040-B0 |
— | ||
|
58816B
|
58816B
58816-35040-C0 Insert, Console BoxCONSOLE BOX [08.2013 -] GRN28# BLACK,TRIM2#,4# |
58816-35040-C0 |
US $32.76 |
||
|
58816B
|
58816B
58816-35040-E0
Insert, Console Box
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
58816-35040-E0 |
— | ||
|
58817A
|
58817A
58817-35020-B0
Insert, Console Box, Front No.2
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
58817-35020-B0 |
— | ||
|
58817A
|
58817A
58817-35020-C0 Insert, Console Box, Front No.2CONSOLE BOX, FRONT NO.2 [08.2013 -] GRN28# BLACK,TRIM2#,4# |
58817-35020-C0 |
US $20.09 |
||
|
58817A
|
58817A
58817-35020-E0
Insert, Console Box, Front No.2
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
58817-35020-E0 |
— | ||
|
58831A
|
58831A
58831-35030
Garnish, Console Upper Panel, Front
[08.2009 - 08.2013] GRN280 |
58831-35030 |
— | ||
|
58839A
|
58839A
58839-35030 Cover, Console Box HoleCONSOLE BOX HOLE [08.2009 - 08.2013] GRN28# |
58839-35030 |
US $3.20 |
||
|
58860A
|
58860A
58860-60050-B0
Register Assy, Console Box
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
58860-60050-B0 |
— | ||
|
58860A
|
58860A
58860-60050-C1 Register Assy, Console BoxCONSOLE BOX [08.2013 -] GRN28# BLACK,TRIM2#,4# |
58860-60050-C1 |
US $53.58 |
||
|
58860A
|
58860A
58860-60050-E1 Register Assy, Console BoxCONSOLE BOX [08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
58860-60050-E1 |
US $58.97 |
||
|
58905
|
58905
58905-35120-B0 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
58905-35120-B0 |
US $279.55 |
||
|
58905
|
58905
58905-35120-C1
Door Sub-Assy, Console Compartment
[08.2013 -] GRN28# BLACK,TRIM2# |
58905-35120-C1 |
— | ||
|
58905
|
58905
58905-35120-C2
Door Sub-Assy, Console Compartment
[08.2013 -] GRN28# BLACK/SAND BEIGE,TRIM4# |
58905-35120-C2 |
— | ||
|
58905
|
58905
58905-35120-E0
Door Sub-Assy, Console Compartment
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
58905-35120-E0 |
— | ||
|
58905
|
58905
58905-35130-B0
Door Sub-Assy, Console Compartment
[08.2009 - 08.2013] GRN28# SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
58905-35130-B0 |
— | ||
|
58905
|
58905
58905-35130-C4
Door Sub-Assy, Console Compartment
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22; GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM22 |
58905-35130-C4 |
— | ||
|
58905
|
58905
58905-35130-C5
Door Sub-Assy, Console Compartment
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/SAND BEIGE,TRIM4#; GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/SAND BEIGE,TRIM4# |
58905-35130-C5 |
— | ||
|
58905
|
58905
58905-35130-C7
Door Sub-Assy, Console Compartment
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED WOOD,TRIM24; GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RED WOOD,TRIM24 |
58905-35130-C7 |
— | ||
|
58905
|
58905
58905-35130-E0
Door Sub-Assy, Console Compartment
[08.2009 - 08.2013] GRN28# SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
58905-35130-E0 |
— | ||
|
58907
|
58907
58907-35030
Hinge Sub-Assy, Console Compartment Door
[08.2009 - 08.2013] GRN28# |
58907-35030 |
— | ||
|
58908A
|
58908A
58908-12080 Lock Sub-Assy, Console Compartment Door[04.2011 - 08.2013] GRN28# |
58908-12080 |
from US $12.77 |
||
|
58908A
|
58908A
58908-32021 Lock Sub-Assy, Console Compartment Door[08.2009 - 03.2011] GRN28# |
58908-32021 |
US $14.71 |
||
| replacement | |||||
|
58908A
|
58908A
58908-12080 Lock Sub-Assy, Console Compartment Door[08.2009 - 03.2011] GRN28# |
58908-12080 |
from US $12.77 |
||
|
58910C
|
58910C
58910-35290-B0
Box Assy, Console, Rear
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
58910-35290-B0 |
— | ||
|
58910C
|
58910C
58910-35290-E0
Box Assy, Console, Rear
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
58910-35290-E0 |
— | ||
|
58910C
|
58910C
58910-35300-B0
Box Assy, Console, Rear
[08.2009 - 08.2013] GRN28# SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
58910-35300-B0 |
— | ||
|
58910C
|
58910C
58910-35300-E0
Box Assy, Console, Rear
[08.2009 - 08.2013] GRN28# SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
58910-35300-E0 |
— | ||
|
58910C
|
58910C
58910-35330-C1
Box Assy, Console, Rear
[08.2013 -] GRN28# BLACK,TRIM2# |
58910-35330-C1 |
— | ||
|
58910C
|
58910C
58910-35330-C2
Box Assy, Console, Rear
[08.2013 -] GRN28# BLACK/SAND BEIGE,TRIM4# |
58910-35330-C2 |
— | ||
|
58910C
|
58910C
58910-35340-C3
Box Assy, Console, Rear
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22; GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM22 |
58910-35340-C3 |
— | ||
|
58910C
|
58910C
58910-35340-C4
Box Assy, Console, Rear
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/SAND BEIGE,TRIM4#; GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/SAND BEIGE,TRIM4# |
58910-35340-C4 |
— | ||
|
58910C
|
58910C
58910-35340-C6
Box Assy, Console, Rear
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED WOOD,TRIM24; GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RED WOOD,TRIM24 |
58910-35340-C6 |
— | ||
|
58916
|
58916
58916-35070
Mat, Box Bottom
[08.2009 - 08.2013] GRN28# |
58916-35070 |
— | ||
|
58917
|
58917
58917-35050
Mat, Box Bottom, No.2
[08.2009 - 08.2013] GRN280 |
58917-35050 |
— | ||
|
58923A
|
58923A
58923-35020-B0
Panel, Console Rear End
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
58923-35020-B0 |
— | ||
|
58923A
|
58923A
58923-35020-E0 Panel, Console Rear EndCONSOLE REAR END [08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
58923-35020-E0 |
US $57.51 |
||
|
58923A
|
58923A
58923-35030-C0
Panel, Console Rear End
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
58923-35030-C0 |
— | ||
|
58959C
|
58959C
58959-35010 Cushion, Console Compartment Door[06.2013 - 08.2013] GRN28# |
58959-35010 |
US $1.31 |
||
|
58959C
|
58959C
58959-60060 Cushion, Instrument Panel[08.2009 - 05.2013] GRN28# |
58959-60060 |
from US $1.21 |
||
|
58987A
|
58987A
58987-35020-B0
Retainer, Console Box, No.2
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
58987-35020-B0 |
— | ||
|
58987A
|
58987A
58987-35020-C0 Retainer, Console Box, No.2CONSOLE BOX, NO.2 [08.2013 -] GRN28# BLACK,TRIM2#,4# |
58987-35020-C0 |
US $7.86 |
||
|
58987A
|
58987A
58987-35020-E0
Retainer, Console Box, No.2
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
58987-35020-E0 |
— | ||
|
58995A
|
58995A
58995-35060
Bracket, Console Box Mounting, No.1
[08.2009 - 08.2013] GRN28# |
58995-35060 |
— | ||
|
58996A
|
58996A
58996-35040
Bracket, Console Box Mounting, No.2
[08.2009 - 08.2013] GRN28# |
58996-35040 |
— | ||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $1.07 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
