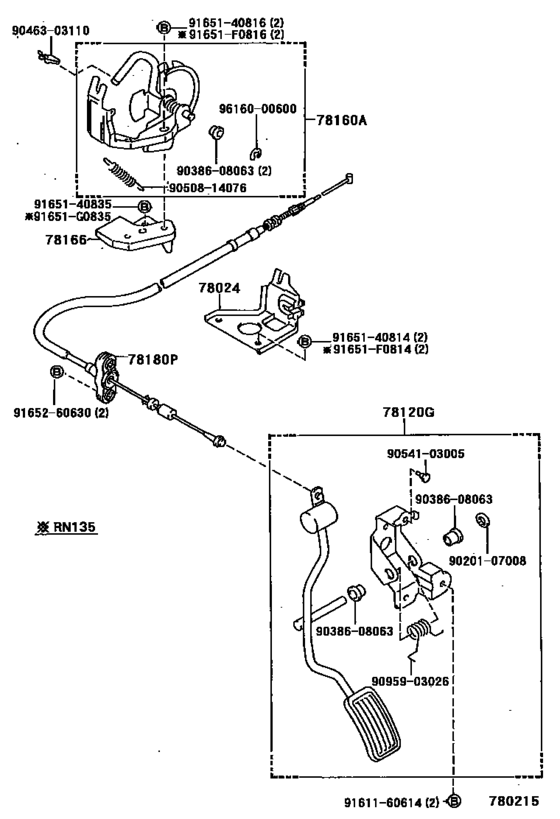

Accelerator Link ([08.1988 - ] (8808- )RN10#,13#..GEN,V..CBU) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- RN135
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- 4RUNNER
- From
- 08.1991
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-22060
Bracket Sub-Assy, Accelerator Control Cable
[08.1988 - 09.1999] RN10#,13#..LHD..CBR |
78024-22060 |
— | ||
|
78120G
|
78120G
78120-89152 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1989 - 09.1999] RN10#,135..LHD..CBR |
78120-89152 |
US $66.98 |
||
|
78160A
|
78160A
78160-89101
Bellcrank Assy, Accelerator
[08.1988 - 09.1999] RN10#,13#..LHD..CBR |
78160-89101 |
— | ||
|
78166
|
78166
78166-35010 Bracket, Accel Control No.2 BellcrankACCEL CONTROL NO.2 BELLCRANK [08.1988 - 09.1999] RN10#,13#..LHD..CBR |
78166-35010 |
US $26.64 |
||
|
78180P
|
78180P
78180-35090 Cable Assy, Accelerator Control[08.1988 - 09.1999] RN10#,135..LHD..CBR |
78180-35090 |
from US $46.74 |
||
|
91651F0814
|
91651F0814
91651-F0814 New Genuine Part |
91651-F0814 |
US $1.16 |
||
|
91651F0816
|
91651F0816
91651-F0816
New Genuine Part
|
91651-F0816 |
— | ||
| replacement | |||||
|
91651F0816
|
91651F0816
90119-08813 BOLT W-WASHER |
90119-08813 |
from US $2.87 |
||
|
91651G0835
|
91651G0835
91651-G0835
New Genuine Part
|
91651-G0835 |
— | ||
| replacement | |||||
|
91651G0835
|
91651G0835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.48 |
||
|
9020107008
|
9020107008
90201-07008 New Genuine Part |
90201-07008 |
US $0.70 |
||
|
9038608063
|
9038608063
90386-08063
Bush (For Accelerator Pedal Rod)
|
90386-08063 |
— | ||
|
9046303110
|
9046303110
90463-03110
Clamp (For Accelerator Torque Rod)
|
90463-03110 |
— | ||
|
9050814076
|
9050814076
90508-14076
Spring (For Accelerator Rod Return)
|
90508-14076 |
— | ||
|
9054103005
|
9054103005
90541-03005 Cushion, Glove Compartment Door Check |
90541-03005 |
from US $3.58 |
||
|
9095903026
|
9095903026
90959-03026
Spring (For Accelerator Pedal Rod)
|
90959-03026 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165140835
|
9165140835
91651-40835 New Genuine Part |
91651-40835 |
US $3.44 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $0.87 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
