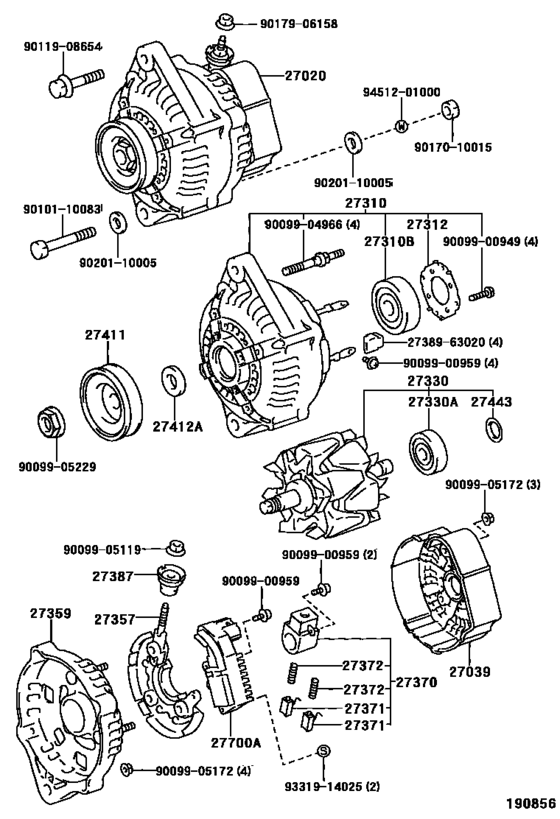

Alternator ([08.1994 - ] 12V 55A (9408- )22R) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- RN135
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- 4RUNNER
- From
- 08.1991
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-34022 Alternator Assy[08.1991 - 08.1994] 22R..RN13#..GEN,V 12V 55A |
27020-34022 |
US $1,033.76 |
||
|
27020
|
27020
27060-35170 Alternator Assy[08.1994 - 09.1999] 22R..RN135..GEN;22R..RN10#,130..LHD 12V 55A |
27060-35170 |
US $1,438.53 |
||
|
27039
|
27039
27039-34022
Cover, Alternator Rear End
[08.1991 - 08.1994] 22R..RN13#..GEN,V |
27039-34022 |
— | ||
|
27039
|
27039
27039-73020
Cover, Alternator Rear End
[08.1994 - 01.1997] 22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
27039-73020 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16380
Cover, Alternator Rear End
[08.1994 - 01.1997] 22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
27039-16380 |
— | ||
|
27310
|
27310
27310-34050
Frame Assy, Drive End, Alternator
[08.1991 - 08.1994] 22R..RN13#..GEN,V |
27310-34050 |
— | ||
|
27310
|
27310
27310-35120
Frame Assy, Drive End, Alternator
[08.1994 - 09.1999] 22R..RN135..GEN;22R#..RN10#,130..LHD |
27310-35120 |
— | ||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[08.1991 - 08.1994] 22R..RN10#,13#..(DLX,SR5)..(GEN,V) |
90099-10125 |
from US $8.74 |
||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[08.1994 - 09.1999] 22R#..RN10#,110,13# |
90099-10199 |
from US $19.39 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[08.1994 - 09.1999] 22R#..RN10#,110,13# |
27312-72100 |
— | ||
|
27330
|
27330
27330-63010
Rotor Assy, Alternator
[08.1991 - 08.1994] 22R..RN13#..GEN,V |
27330-63010 |
— | ||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[08.1994 - 01.1997] 22R#,3VZE..RN10#,110,13#,VZN130 |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[08.1991 - 08.1994] 4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V) |
90099-10116 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1994 - 09.1999] 22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63060
Holder, Alternator, W/rectifier
[08.1994 - 01.1997] 22R..RN135..GEN;22R..RN10#,130..LHD |
27357-63060 |
— | ||
|
27359
|
27359
27359-16011
Frame, Alternator Rectifier End
[08.1994 - 01.1996] 22R#..RN10#,110,13# |
27359-16011 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-16012
Frame, Alternator Rectifier End
[08.1994 - 01.1996] 22R#..RN10#,110,13# |
27359-16012 |
— | ||
|
27359
|
27359
27384-16380
Washer
[08.1994 - 01.1996] 22R#..RN10#,110,13# |
27384-16380 |
— | ||
|
27359
|
27359
27359-24100
Frame, Alternator Rectifier End
[08.1991 - 08.1994] 22R..RN13#..GEN,V |
27359-24100 |
— | ||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[08.1994 - 09.1999] 22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106 |
27370-35060 |
from US $16.80 |
||
|
27371
|
27371
27371-31011 Brush, Alternator[08.1991 - 08.1994] 4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V) |
27371-31011 |
from US $2.45 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1994 - 09.1999] 22R#,4Y..RN10#,13#,YN106;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[08.1991 - 08.1994] 4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V) |
27372-31011 |
— | ||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[08.1994 - 09.1999] 22R#,4Y..RN10#,13#,YN106;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1994 - 09.1999] 22R#,4Y..RN10#,13#,YN106;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
27372-87501 |
— | ||
|
27387
|
27387
27387-34022
Insulator, Terminal
[08.1991 - 08.1994] 4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V) NO.2 |
27387-34022 |
— | ||
|
27387
|
27387
27387-45110
Insulator, Terminal
[08.1991 - 08.1994] 4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V) NO.1 |
27387-45110 |
— | ||
|
27387
|
27387
27387-70170
Insulator, Terminal
[08.1994 - 05.1997] 22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
27387-70170 |
— | ||
|
27411
|
27411
27411-31042 Pulley, Alternator[08.1991 - 08.1994] 22R..RN10#,13#..(DLX,SR5)..(GEN,V) |
27411-31042 |
US $12.52 |
||
|
27411
|
27411
27411-35062
Pulley, Alternator
[08.1994 - 09.1999] 22R#..RN10#,110,13# |
27411-35062 |
— | ||
|
27412A
|
27412A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[08.1991 - 08.1994] 22R..RN10#,13#..(DLX,SR5)..(GEN,V) |
27412-31040 |
— | ||
|
27412A
|
27412A
27412-35100
Collar, Spacer(For Alternator Pulley)
[08.1994 - 09.1999] 22R#..RN10#,110,13# |
27412-35100 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1994 - 09.1999] 22R#,4Y..RN10#,13#,YN106;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-63010
Regulator Assy, Generator
[07.1992 - 08.1994] 22R..RN105..V;22R,3L,4Y..LN106,111,13#,RN106,13#,YN106..GEN,V |
27700-63010 |
— | ||
|
27700A
|
27700A
27700-66040 Regulator Assy, Generator[08.1994 - 09.1999] 22R..RN10#,110,13# |
27700-66040 |
US $264.99 |
||
| replacement | |||||
|
27700A
|
27700A
27700-75020 Regulator Assy, Generator[08.1994 - 09.1999] 22R..RN10#,110,13# |
27700-75020 |
from US $153.71 |
||
|
27700A
|
27700A
27700-72030
Regulator Assy, Generator
[08.1991 - 07.1992] 22R..RN105..V;22R,3L,4Y..LN106,111,13#,RN106,13#,YN106..GEN,V |
27700-72030 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-63010
Regulator Assy, Generator
[08.1991 - 07.1992] 22R..RN105..V;22R,3L,4Y..LN106,111,13#,RN106,13#,YN106..GEN,V |
27700-63010 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900949
|
9009900949
90099-00949
New Genuine Part
|
90099-00949 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905229
|
9009905229
90099-05229
New Genuine Part
|
90099-05229 |
— | ||
|
9010110083
|
9010110083
90101-10083 BOLT |
90101-10083 |
US $4.95 |
||
|
9011908654
|
9011908654
90119-08654 BOLT WWASHER |
90119-08654 |
US $2.34 |
||
|
9017010015
|
9017010015
90170-10015 NUT |
90170-10015 |
US $1.75 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9020110005
|
9020110005
90201-10005 Washer, Plate(For Cylinder Head Set) |
90201-10005 |
US $2.87 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
