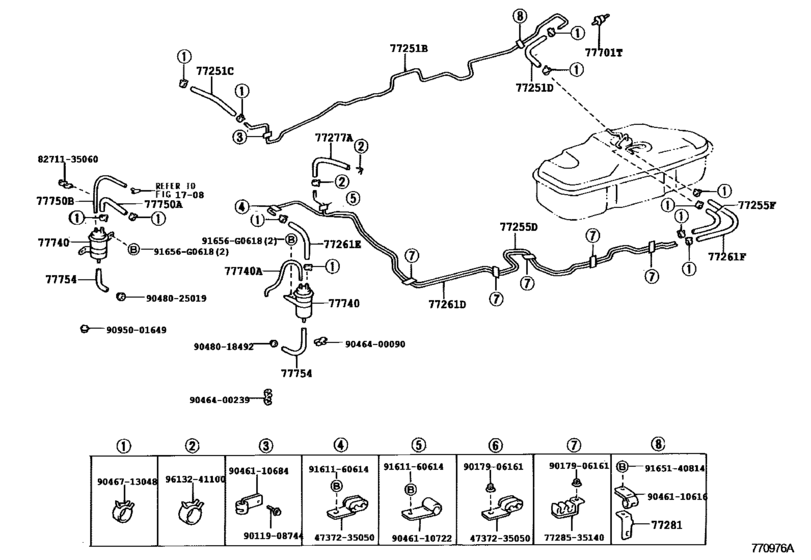

Fuel Tank & Tube ([08.1989 - ] (8908- )RN135) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- RN135
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- 4RUNNER
- From
- 08.1991
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-35640 Tube, Fuel MainFUEL MAIN [04.1989 - 11.1995] YN135;RN13#..LHD |
77251-35640 |
US $44.12 |
||
|
77251C
|
77251C
77259-35200 Hose, Fuel, No.1(For Fuel Main Tube)FUEL, NO.1(FOR FUEL MAIN TUBE) [07.1989 - 11.1995] RN13#..LHD L=420 |
77259-35200 |
US $15.14 |
||
|
77251D
|
77251D
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1990 - 08.1993] RN13#,YN135..4D *H,L=190 |
95333-06020 |
— | ||
| replacement | |||||
|
77251D
|
77251D
95337-06020 Hose, Differential Pressure Control[08.1990 - 08.1993] RN13#,YN135..4D *H,L=190 |
95337-06020 |
from US $10.21 |
||
|
77255D
|
77255D
77255-35450 Tube, Fuel Return[04.1989 - 11.1995] RN13#,YN13# |
77255-35450 |
US $44.12 |
||
|
77255F
|
77255F
77259-35170
Hose, Fuel, No.2(For Fuel Main Tube)
[08.1991 - 11.1995] RN13#..GEN L=600,ID=11.5 |
77259-35170 |
— | ||
|
77255F
|
77255F
90445-12231 Hose, Fuel, No.2 (For Fuel Return Tube)[08.1990 - 11.1995] VZN130;RN13#,YN135..4D L=290 |
90445-12231 |
US $7.72 |
||
|
77261E
|
77261E
77259-35120 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) [07.1989 - 08.1997] RN105,13#..LHD L=340 |
77259-35120 |
US $13.54 |
||
|
77281
|
77281
77281-35020 Bracket, Fuel Main Tube, No.1[04.1989 - 11.1995] RN13#,VZN130,YN13# |
77281-35020 |
US $6.84 |
||
|
77701T
|
77701T
90917-10069
Valve, Check (For Main Fuel Tank)
[08.1991 - 08.1992] RN13#..GEN |
90917-10069 |
— | ||
| replacement | |||||
|
77701T
|
77701T
90917-10082 Hose, Fuel, No.1 (For Breather Valve)[08.1991 - 08.1992] RN13#..GEN |
90917-10082 |
from US $17.31 |
||
|
77701T
|
77701T
90917-10082 Hose, Fuel, No.1 (For Breather Valve)[08.1992 - 11.1995] RN13#..GEN |
90917-10082 |
from US $17.31 |
||
|
77740
|
77740
77740-35170
Canister Assy, Charcoal
[08.1991 - 09.1999] RN106,13#..LHD..CBR..GEN |
77740-35170 |
— | ||
|
77750A
|
77750A
23829-35021 Hose, Fuel, No.1 (For Charcoal Canister)FUEL, NO.1 (FOR CHARCOAL CANISTER) [08.1988 - 09.1999] RN10#,13#..LHD..CBR |
23829-35021 |
US $30.43 |
||
|
77750B
|
77750B
90999-92003
Hose, Breather (For Transfer Case)
[08.1991 - 09.1999] RN106,13#..LHD..CBR..GEN *H,L=570,MARK=#* |
90999-92003 |
— | ||
|
77754
|
77754
77754-35190 Hose, Fuel, No.3 (For Charcoal Canister)FUEL, NO.3 (FOR CHARCOAL CANISTER) [08.1991 - 09.1999] RN106,13#..LHD..CBR..GEN |
77754-35190 |
US $13.10 |
||
|
91656G0618
|
91656G0618
91656-G0618 New Genuine Part |
91656-G0618 |
US $1.60 |
||
| replacement | |||||
|
91656G0618
|
91656G0618
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
4737235050
|
4737235050
47372-35050 Clamp, Brake Tube, No.2 |
47372-35050 |
US $7.13 |
||
|
7728535140
|
7728535140
77285-35140 Bracket, Fuel Tube |
77285-35140 |
US $6.84 |
||
|
8271135060
|
8271135060
82711-35060 Clamp, Wiring Harness |
82711-35060 |
from US $4.23 |
||
|
9011908744
|
9011908744
90119-08744 New Genuine Part |
90119-08744 |
US $2.33 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.92 |
||
|
9046110616
|
9046110616
90461-10616 New Genuine Part |
90461-10616 |
US $1.40 |
||
|
9046110684
|
9046110684
90461-10684 New Genuine Part |
90461-10684 |
US $4.37 |
||
|
9046110722
|
9046110722
90461-10722 Clamp, Fuel Tube, No.1 |
90461-10722 |
US $4.12 |
||
|
9046400090
|
9046400090
90464-00090 New Genuine Part |
90464-00090 |
US $3.49 |
||
|
9046400239
|
9046400239
90464-00239 New Genuine Part |
90464-00239 |
from US $3.49 |
||
|
9046713048
|
9046713048
90467-13048
Clip, No.2(For Idle-Up Hose)
|
90467-13048 |
— | ||
| replacement | |||||
|
9046713048
|
9046713048
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9048018492
|
9048018492
90480-18492 New Genuine Part |
90480-18492 |
US $4.02 |
||
|
9048025019
|
9048025019
90480-25019
New Genuine Part
|
90480-25019 |
— | ||
|
9095001649
|
9095001649
90950-01649
Plug, Hole(For Frame)
|
90950-01649 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
