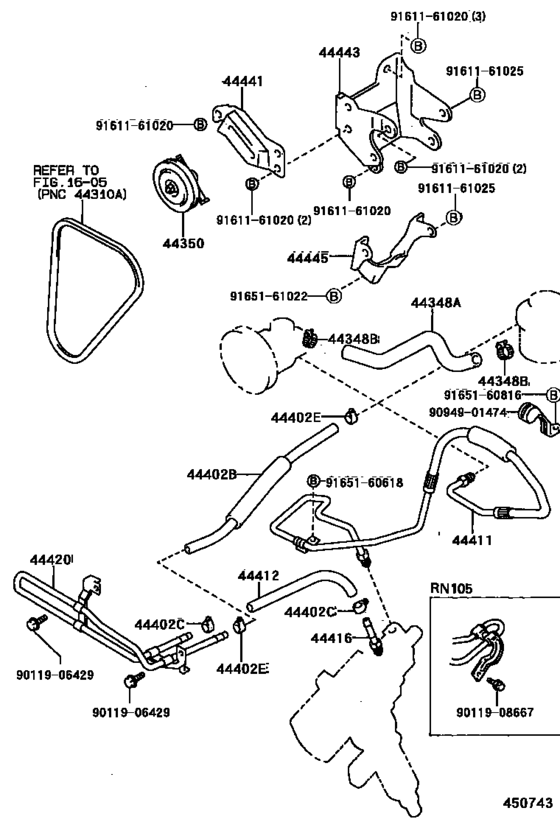

Power Steering Tube ([08.1988 - 09.1999] (8808-9909)RN10#,13#..LHD) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- RN135
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- 4RUNNER
- From
- 08.1991
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-35100
Hose, Oil Reservoir To Pump, No.1
[08.1988 - 09.1999] RN10#,13#..LHD |
44348-35100 |
— | ||
|
44348B
|
44348B
90460-26001 Clamp(For Oil Reservoir To Pump Hose)[08.1988 - 04.1994] LN10#,111,13#,RN10#,110,13# |
90460-26001 |
US $10.57 |
||
|
44348B
|
44348B
90467-21005
Clip(For Suction Hose No.1)
[04.1994 - 06.2001] LN10#,111,13#,RN10#,110,13# |
90467-21005 |
— | ||
| replacement | |||||
|
44348B
|
44348B
90467-21010 Clip(For Ventilation Hose No.2)[04.1994 - 06.2001] LN10#,111,13#,RN10#,110,13# |
90467-21010 |
from US $2.43 |
||
|
44350
|
44350
44350-35010 Pulley Assy, Power Steering Idle[08.1988 - 11.1995] RN10#,110,13#;LN106,111,13#..LHD |
44350-35010 |
from US $144.32 |
||
|
44402B
|
44402B
90447-18039 Hose, Power Steering Oil Cooler OutletPOWER STEERING OIL COOLER OUTLET [08.1988 - 09.1999] RN10#,13#..LHD |
90447-18039 |
US $19.39 |
||
|
44402C
|
44402C
90460-01001 Clamp, Oil Cooler Hose[08.1988 - 04.1994] RN10#,110,13#;YN106,135..LHD |
90460-01001 |
US $10.39 |
||
|
44402C
|
44402C
90467-16008
Clip(For Oil Return Hose)
[04.1994 - 09.1999] YN106..LHD;RN10#,110,13# |
90467-16008 |
— | ||
| replacement | |||||
|
44402C
|
44402C
90467-16019 Clip(For Return No.1)[04.1994 - 09.1999] YN106..LHD;RN10#,110,13# |
90467-16019 |
from US $2.34 |
||
|
44402E
|
44402E
90460-01001 Clamp, Oil Cooler Hose[08.1988 - 04.1994] RN10#,110,13#;YN106,135..LHD |
90460-01001 |
US $10.39 |
||
|
44402E
|
44402E
90467-16008
Clip(For Oil Return Hose)
[04.1994 - 09.1999] YN106..LHD;RN10#,110,13# |
90467-16008 |
— | ||
| replacement | |||||
|
44402E
|
44402E
90467-16019 Clip(For Return No.1)[04.1994 - 09.1999] YN106..LHD;RN10#,110,13# |
90467-16019 |
from US $2.34 |
||
|
44411
|
44411
44411-35290 Hose, Pressure FeedPRESSURE FEED [07.1989 - 11.1995] RN106,13#..LHD |
44411-35290 |
US $366.91 |
||
|
44412
|
44412
44412-35210 Hose, ReturnRETURN [08.1991 - 11.1995] RN13#..LHD |
44412-35210 |
US $17.18 |
||
|
44416
|
44416
44416-35020 Tube, Return(For Steering Gear Outlet)[08.1988 - 06.2001] LN107,111,13#,RN10#,13#,YN106,135..LHD |
44416-35020 |
US $12.75 |
||
|
44420
|
44420
44420-35070 Cooler Assy, OilOIL [08.1991 - 11.1995] RN13#..LHD |
44420-35070 |
US $80.08 |
||
|
44441
|
44441
44441-20010
Bracket, Pump, Front
[08.1988 - 09.1999] RN10#,110,13# |
44441-20010 |
— | ||
|
44443
|
44443
44443-35020 Bracket, PumpPUMP [08.1988 - 09.1999] RN10#,110,13# |
44443-35020 |
US $227.14 |
||
|
44445
|
44445
44445-35010
Bracket, Pump, Lower
[08.1988 - 09.1999] RN10#,110,13# |
44445-35010 |
— | ||
|
9011906429
|
9011906429
90119-06429
New Genuine Part
|
90119-06429 |
— | ||
| replacements | |||||
|
9011906429
|
9011906429
90119-06553
New Genuine Part
|
90119-06553 |
— | ||
|
9011906429
|
9011906429
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
9011908667
|
9011908667
90119-08667 BOLT |
90119-08667 |
from US $1.20 |
||
|
9094901474
|
9094901474
90949-01474
New Genuine Part
|
90949-01474 |
— | ||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.16 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165161022
|
9165161022
91651-61022 Bolt(For Transaxle & Engine Setting) |
91651-61022 |
US $1.10 |
||
