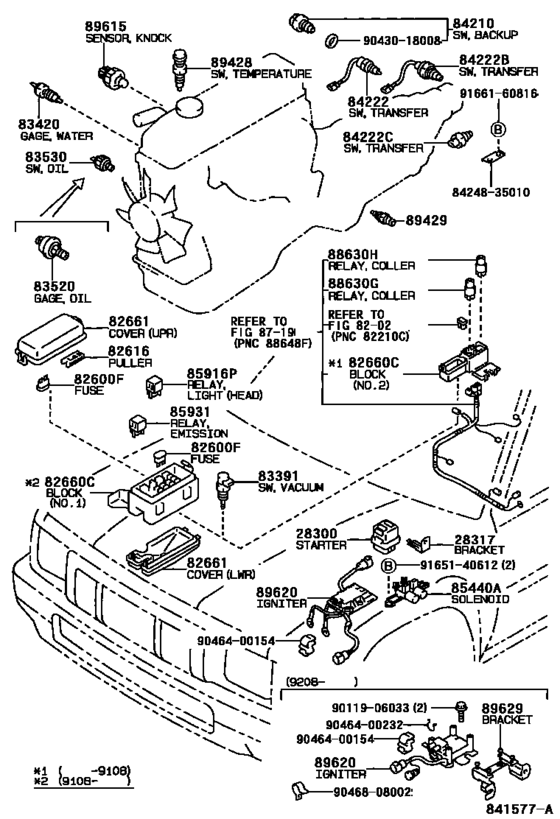

Switch & Relay & Computer ([08.1988 - ] ENGINE & ENGINE ROOM (8808- )RN10#,110,13#) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- RN135
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- 4RUNNER
- From
- 08.1991
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[02.1992 - 08.1992] 22R,3VZE,4Y..RN10#,110,13#,VZN130,YN106 |
28300-10020 |
from US $52.38 |
||
|
28300
|
28300
28341-11010
Relay Assy, Starter
[08.1992 - 05.1995] 22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106..5F |
28341-11010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-10020 Relay Assy, Starter[08.1992 - 05.1995] 22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106..5F |
28300-10020 |
from US $52.38 |
||
|
28300
|
28300
90987-02009 Relay Assy[08.1991 - 02.1992] 22R,3VZE,4Y..RN10#,110,13#,VZN130,YN106 |
90987-02009 |
from US $25.48 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 10A |
90982-09002 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 15A |
90982-09003 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 20A |
90982-09004 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 7.5A |
90982-09005 |
from US $0.97 |
||
|
82616
|
82616
82616-89102
Puller, Fuse
[08.1992 - 06.2001] LN107,RN106,13#,YN106;LN106,111,130,RN105,110,VZN130..ARL,V |
82616-89102 |
— | ||
|
82660C
|
82660C
82660-35030
Block Assy, Relay
[08.1991 - 08.1992] LN10#,111,13#,RN10#,110,13#,VZN130,YN106 |
82660-35030 |
— | ||
|
82660C
|
82660C
82660-35100 Block Assy, Relay[08.1992 - 08.1994] YN106;RN10#,13#..(DLX,SR5)..(GEN,V) NO.1; RN106..EFI;RN10#,110,130..ARL |
82660-35100 |
US $211.12 |
||
|
82661
|
82661
82662-35020
Cover, Relay Block, No.1
[08.1991 - 08.1992] LN106,111,13#,RN13#,YN106..GEN,V UPR |
82662-35020 |
— | ||
|
82661
|
82661
82662-35370 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [08.1994 - 11.1995] RN13#..GEN UPR |
82662-35370 |
US $17.76 |
||
|
82661
|
82661
82663-35010
Cover, Relay Block, No.1
[08.1991 - 08.1992] RN10#..LHD; RN135;RN106..ARL;LN10#,111,13#,RN105,110,130,VZN130,YN106..ARL,GEN LWR |
82663-35010 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1992 - 08.1993] LN10#,111,13#,RN10#,110,13#,YN106 |
83420-16040 |
from US $27.76 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1991 - 08.1992] LN10#,111,13#,RN10#,110,13#,YN106 |
83420-20020 |
from US $28.46 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[08.1991 - 08.1992] RN105,13#,YN106..DLX,STD |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[08.1991 - 08.1992] RN105,13#,YN106..DLX,STD |
83530-28030 |
from US $23.20 |
||
|
83530
|
83530
83530-14070
Switch Assy, Oil Pressure (For Engine)
[08.1992 - 01.1996] RN10#,13#,YN106..DLX,STD |
83530-14070 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[08.1992 - 01.1996] RN10#,13#,YN106..DLX,STD |
83530-28010 |
from US $25.68 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
84210-52050 |
from US $22.85 |
||
|
84222
|
84222
84222-35060 Switch, Transfer Indicator, No.1[08.1990 - 11.1995] VZN130..4D..5F;LN13#,RN13#,YN135 |
84222-35060 |
from US $47.50 |
||
|
84222C
|
84222C
84222-35070 Switch, Transfer Indicator, No.3[08.1993 - 12.1998] LN13#,RN13#..GEN;LN107,111,RN106,110,VZN130..ARL..CBU |
84222-35070 |
from US $46.44 |
||
|
85440A
|
85440A
85440-35010
Solenoid Assy, Four Wheel Drive Control
[08.1993 - 11.1995] VZN130;RN135..LHD..GEN |
85440-35010 |
— | ||
|
85916P
|
85916P
90987-02006 Relay[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
90987-02006 |
from US $26.07 |
||
|
88630G
|
88630G
90987-02009 Relay Assy[08.1993 - 11.1995] LN13#,RN13#,VZN130 |
90987-02009 |
from US $25.48 |
||
|
88630H
|
88630H
90987-03003 Relay Assy, Fuel Pump[08.1993 - 11.1995] LN13#,RN13#,VZN130 |
90987-03003 |
from US $23.01 |
||
|
89620
|
89620
89620-35240
Igniter Assy
[08.1990 - 08.1992] RN10#,13#..(DLX,SR5)..(GEN,V) |
89620-35240 |
— | ||
| replacement | |||||
|
89620
|
89620
89620-35180
Igniter Assy
[08.1990 - 08.1992] RN10#,13#..(DLX,SR5)..(GEN,V) |
89620-35180 |
— | ||
|
89620
|
89620
89620-35290
Igniter Assy
[08.1992 - 09.1999] RN106..CBR..GEN;RN105,13#..(DLX,SR5)..(GEN,V) |
89620-35290 |
— | ||
| replacement | |||||
|
89620
|
89620
89620-35300 Igniter Assy[08.1992 - 09.1999] RN106..CBR..GEN;RN105,13#..(DLX,SR5)..(GEN,V) |
89620-35300 |
US $377.10 |
||
|
89629
|
89629
89629-35020
Band, Ignition Coil, No.1
[08.1992 - 09.1999] RN10#,110,13#..CBR |
89629-35020 |
— | ||
|
8424835010
|
8424835010
84248-35010 Clamp, Center Cluster Module Switch Harness |
84248-35010 |
US $8.30 |
||
|
9011906033
|
9011906033
90119-06033
Bolt
|
90119-06033 |
— | ||
| replacement | |||||
|
9011906033
|
9011906033
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9046808002
|
9046808002
90468-08002
New Genuine Part
|
90468-08002 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9166160816
|
9166160816
91661-60816 Bolt |
91661-60816 |
US $2.33 |
||
