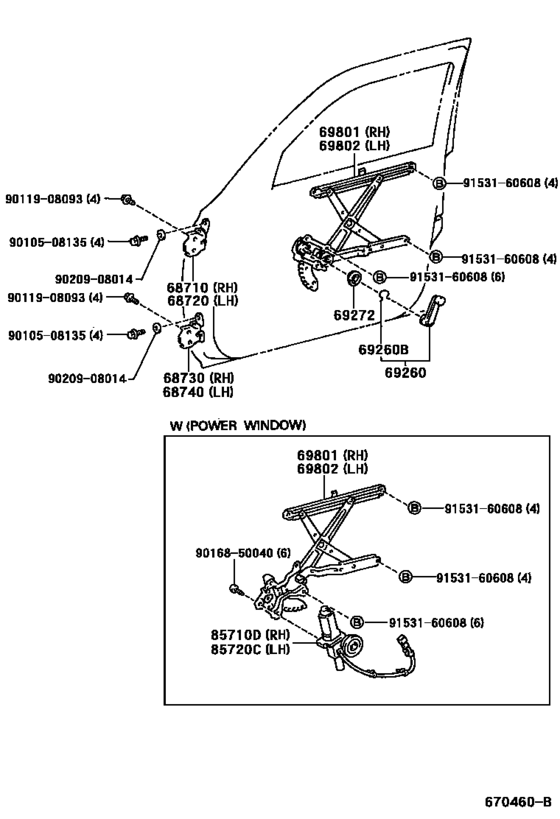

Front Door Window Regulator & Hinge ([11.1995 - ] (9511- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-04010
Hinge Assy, Front Door, Upper Rh
[11.1995 -] RZN18#,VZN18# |
68710-04010 |
— | ||
|
68720
|
68720
68730-04010
Hinge Assy, Front Door, Upper Lh
[11.1995 -] RZN18#,VZN18# |
68730-04010 |
— | ||
|
68730
|
68730
68730-04010
Hinge Assy, Front Door, Upper Lh
[11.1995 -] RZN18#,VZN18# |
68730-04010 |
— | ||
|
68740
|
68740
68710-04010
Hinge Assy, Front Door, Upper Rh
[11.1995 -] RZN18#,VZN18# |
68710-04010 |
— | ||
|
69260
|
69260
69260-89104-B1 Handle Assy, Front Door Window Regulator[11.1995 - 08.2000] RZN18#,VZN18#..SR5B,SR5V MD.MOON MIST,TRIM1# |
69260-89104-B1 |
from US $14.14 |
||
|
69260
|
69260
69260-89104-E3 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [11.1995 - 07.1998] RZN18#,VZN18#..SR5B,SR5V OAK,TRIM4# |
69260-89104-E3 |
US $20.24 |
||
| replacement | |||||
|
69260
|
69260
69260-89104-B0 Handle Assy, Front Door Window Regulator[11.1995 - 07.1998] RZN18#,VZN18#..SR5B,SR5V OAK,TRIM4# |
69260-89104-B0 |
US $21.49 |
||
|
69260
|
69260
69260-89104-E4 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [07.1998 -] RZN18#,VZN18#..SR5B,SR5V SANDAL WOOD,TRIM4# |
69260-89104-E4 |
US $20.24 |
||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[11.1995 -] RZN18#,VZN18#..SR5B,SR5V |
90520-01274 |
from US $0.94 |
||
|
69272
|
69272
69268-20020
Plate, Window Regulator Handle
[11.1995 - 12.1998] RZN18#,VZN18#..SR5B,SR5V |
69268-20020 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[11.1995 - 12.1998] RZN18#,VZN18#..SR5B,SR5V |
69285-22010-08 |
from US $1.76 |
||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[12.1998 - 08.2002] RZN18#,VZN18#..SR5B,SR5V NATURAL WHITE,TRIM1#,4# |
69285-22010-08 |
from US $1.76 |
||
|
69801
|
69801
69801-35091
Regulator Sub-Assy, Front Door Window, Rh
[08.1996 -] RZN18#,VZN18# W(POWER WINDOW) |
69801-35091 |
— | ||
|
69801
|
69801
69801-35120 Regulator Sub-Assy, Front Door Window, RhFRONT DOOR WINDOW, RH [11.1995 -] RZN18#,VZN18#..SR5B,SR5V |
69801-35120 |
US $91.73 |
||
|
69802
|
69802
69802-35101
Regulator Sub-Assy, Front Door Window, Lh
[08.1996 -] RZN18#,VZN18# W(POWER WINDOW) |
69802-35101 |
— | ||
|
69802
|
69802
69802-35120 Regulator Sub-Assy, Front Door Window, LhFRONT DOOR WINDOW, LH [11.1995 -] RZN18#,VZN18#..SR5B,SR5V |
69802-35120 |
US $91.73 |
||
|
85710D
|
85710D
85710-35100 Motor Assy, Power Window Regulator, Rh[08.1996 - 07.1998] RZN18#,VZN18# |
85710-35100 |
US $340.70 |
||
|
85710D
|
85710D
85710-35150
Motor Assy, Power Window Regulator, Rh
[07.1998 -] RZN18#,VZN18# |
85710-35150 |
— | ||
|
85720C
|
85720C
85720-35050 Motor Assy, Power Window Regulator, Lh[08.1996 - 07.1998] RZN18#,VZN18# |
85720-35050 |
US $340.70 |
||
|
85720C
|
85720C
85720-35110
Motor Assy, Power Window Regulator, Lh
[07.1998 -] RZN18#,VZN18# |
85720-35110 |
— | ||
|
9010508135
|
9010508135
90105-08135 BOLTWATER BASED |
90105-08135 |
US $1.89 |
||
| replacement | |||||
|
9010508135
|
9010508135
90105-08187 BOLTWATER BASED |
90105-08187 |
from US $1.07 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.23 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9020908014
|
9020908014
90209-08014 WASHER |
90209-08014 |
US $2.15 |
||
|
9153160608
|
9153160608
91531-60608 BOLT FLANGE |
91531-60608 |
from US $0.76 |
||
