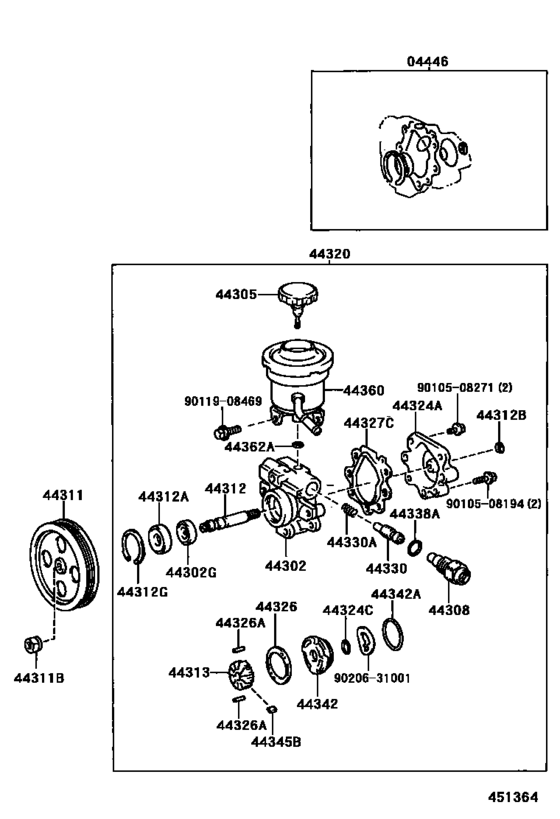

Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- )RZN18#) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-30120 Gasket Kit, Power Steering Pump[11.1995 - 08.2000] RZN18# |
04446-30120 |
from US $30.77 |
||
|
44302
|
44302
44302-34010 Housing Sub-Assy, Vane Pump, Front[11.1995 - 08.2000] RZN18# |
44302-34010 |
US $267.90 |
||
|
44302G
|
44302G
90311-17007 Seal, Oil, No.2(For Vane Pump Housing)[11.1995 - 08.2000] RZN18# |
90311-17007 |
from US $3.40 |
||
|
44305
|
44305
44305-22040
Cap Sub-Assy, Vane Pump Oil Reservoir
[11.1995 - 08.2000] RZN18# |
44305-22040 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[11.1995 - 08.2000] RZN18# |
44305-22061 |
from US $15.88 |
||
|
44308
|
44308
44308-33070 Union Sub-Assy, Pressure Port[11.1995 -] RZN18#,VZN18# |
44308-33070 |
US $28.54 |
||
|
44311
|
44311
44311-34020 Pulley, Vane Pump[11.1995 - 08.2000] RZN18# |
44311-34020 |
US $85.80 |
||
|
44311B
|
44311B
90178-12003 Nut(For Vane Pump Pulley)[07.1998 -] RZN18#,VZN18# |
90178-12003 |
from US $0.92 |
||
|
44311B
|
44311B
90179-12022 Nut(For Vane Pump Pulley)[11.1995 - 07.1998] RZN18#,VZN18# |
90179-12022 |
US $6.63 |
||
|
44312
|
44312
44312-26020 Shaft, Vane Pump[11.1995 - 08.2000] RZN18# |
44312-26020 |
US $22.54 |
||
|
44312A
|
44312A
90363-17008
Bearing(For Vane Pump Shaft)
[11.1995 - 08.2000] RZN18# |
90363-17008 |
— | ||
| replacement | |||||
|
44312A
|
44312A
90363-17013 Bearing(For Vane Pump Shaft)[11.1995 - 08.2000] RZN18# |
90363-17013 |
US $20.83 |
||
|
44312B
|
44312B
90520-15001
Ring, Snap, No.1(For Vane Pump Shaft)
[07.1998 - 08.2000] RZN18# |
90520-15001 |
— | ||
| replacement | |||||
|
44312B
|
44312B
90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)[07.1998 - 08.2000] RZN18# |
90520-15005 |
US $0.70 |
||
|
44312G
|
44312G
90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)[07.1998 - 08.2000] RZN18# |
90521-44002 |
from US $3 |
||
|
44313
|
44313
44313-26060 Rotor, Vane Pump[11.1995 -] RZN18#,VZN18# NO MARK |
44313-26060 |
US $103.38 |
||
|
44313
|
44313
44313-26070 Rotor, Vane Pump[11.1995 -] RZN18#,VZN18# MARK 1 |
44313-26070 |
US $103.38 |
||
|
44313
|
44313
44313-26080 Rotor, Vane Pump[11.1995 -] RZN18#,VZN18# MARK 2 |
44313-26080 |
US $103.38 |
||
|
44313
|
44313
44313-26090 Rotor, Vane Pump[11.1995 -] RZN18#,VZN18# MARK 3 |
44313-26090 |
US $103.38 |
||
|
44313
|
44313
44313-26100 Rotor, Vane Pump[11.1995 -] RZN18#,VZN18# MARK 4 |
44313-26100 |
US $103.38 |
||
|
44320
|
44320
44320-35480 Pump Assy, Vane[11.1995 - 08.2000] RZN18# |
44320-35480 |
US $1,240.51 |
||
|
44324A
|
44324A
44324-34010 Housing, Pump, Rear[11.1995 - 08.2000] RZN18# |
44324-34010 |
US $55.04 |
||
|
44324C
|
44324C
90301-18007 Ring, O(For Pump Housing Rear)[11.1995 -] RZN18#,VZN18# |
90301-18007 |
US $1.97 |
||
|
44326
|
44326
44325-32270 Ring, Cam(For Vane Pump)[11.1995 -] RZN18#,VZN18# NO MARK |
44325-32270 |
US $90.27 |
||
|
44326
|
44326
44325-32280 Ring, Cam(For Vane Pump)[11.1995 -] RZN18#,VZN18# MARK 1 |
44325-32280 |
US $90.27 |
||
|
44326
|
44326
44325-32290 Ring, Cam(For Vane Pump)[11.1995 -] RZN18#,VZN18# MARK 2 |
44325-32290 |
US $90.27 |
||
|
44326
|
44326
44325-32300 Ring, Cam(For Vane Pump)[11.1995 -] RZN18#,VZN18# MARK 3 |
44325-32300 |
US $90.27 |
||
|
44326
|
44326
44325-32310 Ring, Cam(For Vane Pump)[11.1995 -] RZN18#,VZN18# MARK 4 |
44325-32310 |
US $90.27 |
||
|
44326A
|
44326A
90250-04071 Pin, Straight(For Vane Pump Cam Ring)[11.1995 -] RZN18#,VZN18# L=23.3,OD=4.0 |
90250-04071 |
US $1.46 |
||
|
44327C
|
44327C
44327-26010 Gasket, Vane Pump Housing[11.1995 -] RZN18#,VZN18# |
44327-26010 |
from US $7.25 |
||
|
44330
|
44330
44330-26071 Valve Assy, Flow Control[11.1995 -] RZN18#,VZN18# MARK A |
44330-26071 |
US $113.57 |
||
|
44330
|
44330
44330-26081 Valve Assy, Flow Control[11.1995 -] RZN18#,VZN18# MARK B |
44330-26081 |
US $113.57 |
||
|
44330
|
44330
44330-26091 Valve Assy, Flow Control[11.1995 -] RZN18#,VZN18# MARK C |
44330-26091 |
US $113.57 |
||
|
44330
|
44330
44330-26101 Valve Assy, Flow Control[11.1995 -] RZN18#,VZN18# MARK D |
44330-26101 |
US $113.57 |
||
|
44330
|
44330
44330-26111 Valve Assy, Flow Control[11.1995 -] RZN18#,VZN18# MARK E |
44330-26111 |
US $113.57 |
||
|
44330
|
44330
44330-26121 Valve Assy, Flow Control[11.1995 -] RZN18#,VZN18# MARK F |
44330-26121 |
US $113.57 |
||
|
44330A
|
44330A
90501-13034 Spring, Compression(For Flow Control Valve)[11.1995 -] RZN18#,VZN18# |
90501-13034 |
US $1.40 |
||
|
44338A
|
44338A
90301-19003
Ring, O(For Pressure Port Union)
[11.1995 - 11.1997] RZN18#,VZN18# ID=19.5,OD=22.5 |
90301-19003 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[11.1995 - 11.1997] RZN18#,VZN18# ID=19.5,OD=22.5 |
90301-19018 |
from US $2.18 |
||
|
44338A
|
44338A
90301-19013
Seal, Oil, No.1(For Vane Pump Housing)
[11.1997 -] RZN18#,VZN18# ID=19.2,OD=22.3 |
90301-19013 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[11.1997 -] RZN18#,VZN18# ID=19.2,OD=22.3 |
90301-19018 |
from US $2.18 |
||
|
44342
|
44342
44342-26020 Plate, Vane Pump Side, Rear[11.1995 -] RZN18#,VZN18# |
44342-26020 |
US $19.92 |
||
|
44342A
|
44342A
90301-47001 Ring, O(For Vane Pump Side Plate Rear)[11.1995 -] RZN18#,VZN18# |
90301-47001 |
US $3.05 |
||
|
44345B
|
44345B
44345-26010 Plate, Vane Pump[11.1995 -] RZN18#,VZN18# L=15.000 |
44345-26010 |
US $9.32 |
||
|
44345B
|
44345B
44345-26020 Plate, Vane Pump[11.1995 -] RZN18#,VZN18# L=14.998 |
44345-26020 |
US $9.32 |
||
|
44345B
|
44345B
44345-26030 Plate, Vane Pump[11.1995 -] RZN18#,VZN18# L=14.996 |
44345-26030 |
US $9.32 |
||
|
44345B
|
44345B
44345-26040 Plate, Vane Pump[11.1995 -] RZN18#,VZN18# L=14.994 |
44345-26040 |
US $9.32 |
||
|
44345B
|
44345B
44345-26050 Plate, Vane Pump[11.1995 -] RZN18#,VZN18# L=14.992 |
44345-26050 |
US $9.32 |
||
|
44360
|
44360
44306-35250 Reservoir Sub-Assy, Vane Pump Oil[11.1995 - 08.2000] RZN18# |
44306-35250 |
from US $128.36 |
||
|
44362A
|
44362A
90301-11010
Pin, Straight(For Vane Pump Cam Ring)
[11.1995 - 11.1997] RZN18#,VZN18# |
90301-11010 |
— | ||
| replacement | |||||
|
44362A
|
44362A
90301-11016 Ring, O(For Power Steering Suction Port)[11.1995 - 11.1997] RZN18#,VZN18# |
90301-11016 |
from US $1.48 |
||
|
44362A
|
44362A
90301-11016 Ring, O(For Power Steering Suction Port)[11.1997 -] RZN18#,VZN18# |
90301-11016 |
from US $1.48 |
||
|
9010508194
|
9010508194
90105-08194 New Genuine Part |
90105-08194 |
US $1.05 |
||
|
9010508271
|
9010508271
90105-08271 Bolt |
90105-08271 |
US $2.15 |
||
|
9011908469
|
9011908469
90119-08469
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
90119-08469 |
— | ||
|
9020631001
|
9020631001
90206-31001 WASHER WAVE |
90206-31001 |
US $2.33 |
||
