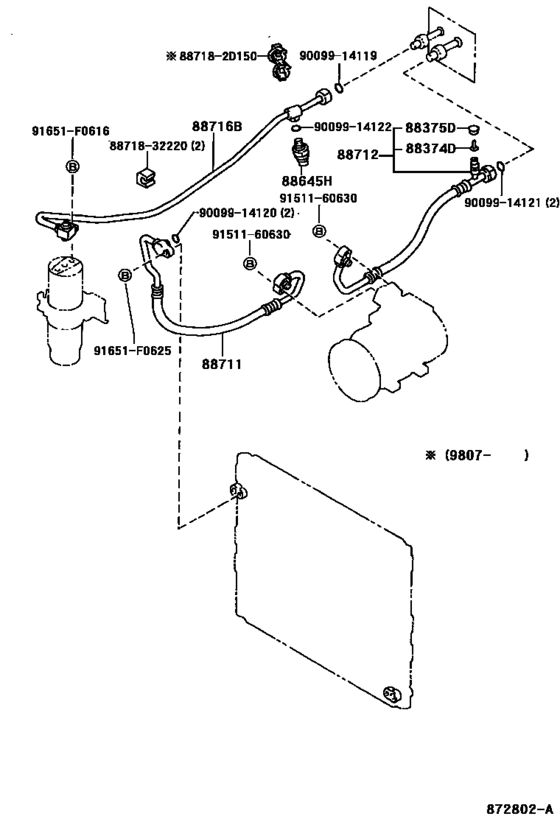

Heating & Air Conditioning - Cooler Piping ([11.1995 - ] HOSE & PIPE (9511- )RZN18#) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374D
|
88374D
88374-30010 Valve, Service, No.1[11.1995 -] RZN18#,VZN18# |
88374-30010 |
from US $3.12 |
||
|
88375D
|
88375D
88375-30290 Cap, Service Valve (For Cooler Pipe)[11.1995 -] RZN18#,VZN18# |
88375-30290 |
from US $0.88 |
||
|
88645H
|
88645H
88645-34010 Switch, Pressure[11.1995 -] RZN18#,VZN18# |
88645-34010 |
from US $32.78 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[11.1995 -] RZN18#,VZN18# |
88645-04040 |
US $120.41 |
||
|
88711
|
88711
88711-35470 Hose, Cooler Refrigerant Discharge, No.1[11.1995 - 08.2000] RZN18# |
88711-35470 |
US $183.46 |
||
|
88712
|
88712
88712-35460 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [11.1995 - 07.1998] RZN18# |
88712-35460 |
US $196.56 |
||
|
88712
|
88712
88712-35530 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [07.1998 - 08.2000] RZN18# |
88712-35530 |
US $198.02 |
||
|
88716B
|
88716B
88716-35350 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [11.1995 - 01.1998] RZN18#,VZN18# |
88716-35350 |
US $99.01 |
||
|
88716B
|
88716B
88716-35390 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [07.1998 -] RZN18#,VZN18# |
88716-35390 |
US $100.46 |
||
|
88716B
|
88716B
88716-6A721
Pipe, Cooler Refrigerant Liquid, B
[01.1998 - 07.1998] RZN18#,VZN18# |
88716-6A721 |
— | ||
|
91651F0616
|
91651F0616
91651-F0616 BOLT |
91651-F0616 |
US $1.97 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.46 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.21 |
||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
US $2.15 |
||
