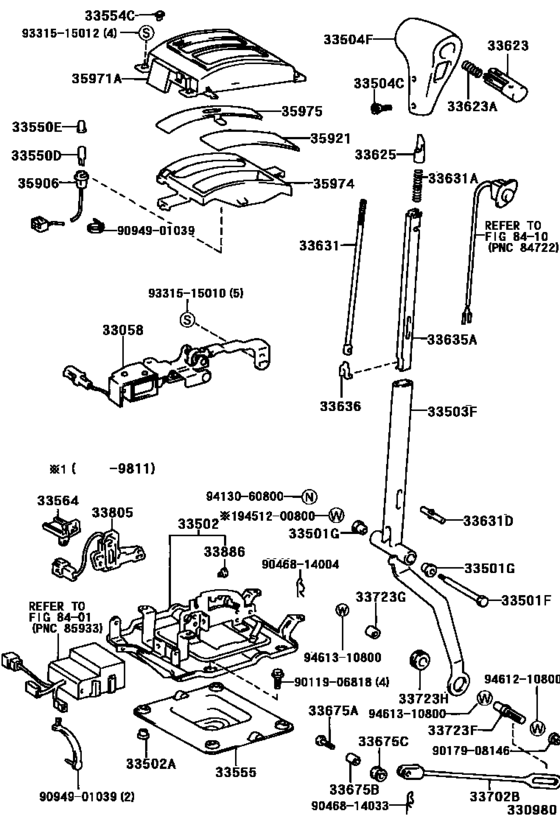

Shift Lever & Retainer ([11.1995 - ] (9511- )RZN180,VZN180..4FC) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33058
|
33058
33058-35040 Bracket Sub-Assy, Shift Lock SolenoidSHIFT LOCK SOLENOID [11.1995 -] RZN180,VZN180..4FC |
33058-35040 |
US $35.38 |
||
|
33501F
|
33501F
33511-22160 Shaft Sub-Assy, Control (For Floor Shift)[11.1995 -] RZN180,VZN180..4FC |
33511-22160 |
US $7.57 |
||
|
33501G
|
33501G
90385-11003 Bush(For Control Shaft)[11.1995 -] RZN180,VZN180..4FC |
90385-11003 |
from US $1.21 |
||
|
33502
|
33502
33502-35380 Plate Sub-Assy, Shift LeverSHIFT LEVER [11.1995 - 05.1996] RZN180,VZN180..4FC |
33502-35380 |
US $88.82 |
||
| replacement | |||||
|
33502
|
33502
33502-35H01 Plate Sub-Assy, Shift Lever[11.1995 - 05.1996] RZN180,VZN180..4FC |
33502-35H01 |
US $126.67 |
||
|
33502
|
33502
33502-35381 Plate Sub-Assy, Shift LeverSHIFT LEVER [05.1996 -] RZN180,VZN180..4FC |
33502-35381 |
US $88.82 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[11.1995 -] RZN180,VZN180..4FC OD=8.8 |
90387-06065 |
US $3.23 |
||
|
33503F
|
33503F
33055-35140 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [11.1995 -] RZN180,VZN180..4FC |
33055-35140 |
US $96.10 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[11.1995 -] RZN18#,VZN18#..4FC |
90159-40109 |
US $1.43 |
||
|
33504F
|
33504F
33542-20150-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [11.1995 -] RZN180,VZN180..4FC..(SR5B,SR5V) BLACK,TRIM1#,4# |
33542-20150-C0 |
US $82.49 |
||
|
33550D
|
33550D
99132-12034 Bulb, Position Indicator Lamp[11.1995 -] RZN180,VZN180..4FC 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
33550D
|
33550D
00234-00158 Bulb, Position Indicator Lamp[11.1995 -] RZN180,VZN180..4FC 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
33550E
|
33550E
90339-09001 Cap, Position Indicator Lamp[11.1995 -] RZN180,VZN180..4FC |
90339-09001 |
US $2.15 |
||
|
33554C
|
33554C
33554-35020 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [11.1995 -] RZN180,VZN180..4FC |
33554-35020 |
US $6.99 |
||
|
33555
|
33555
33555-35180
Boot, Shift Lever
[11.1995 -] RZN180,VZN180..4FC |
33555-35180 |
— | ||
|
33564
|
33564
33564-35080 Link, Shift Lock Release, No.1SHIFT LOCK RELEASE, NO.1 [11.1995 - 05.1996] RZN180,VZN180..4FC |
33564-35080 |
US $5.10 |
||
| replacement | |||||
|
33564
|
33564
33502-35H01 Plate Sub-Assy, Shift Lever[11.1995 - 05.1996] RZN180,VZN180..4FC |
33502-35H01 |
US $126.67 |
||
|
33564
|
33564
33564-35081 Link, Shift Lock Release, No.1SHIFT LOCK RELEASE, NO.1 [05.1996 -] RZN180,VZN180..4FC |
33564-35081 |
US $4.80 |
||
|
33623
|
33623
33623-20070-C0 Button, Shift Lever Knob (Black)[11.1995 -] RZN180,VZN180..4FC..(SR5B,SR5V) BLACK,TRIM1#,4# |
33623-20070-C0 |
US $19.83 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[11.1995 -] RZN180,VZN180..4FC |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-24010 Sleeve, Shift Lever Knob[11.1995 -] RZN180,VZN180..4FC |
33625-24010 |
US $5.78 |
||
|
33631
|
33631
33631-16020 Rod, Detent[11.1995 -] RZN180,VZN180..4FC |
33631-16020 |
US $15.43 |
||
|
33631A
|
33631A
90501-07074 Spring, Compression (For Detent Rod)[11.1995 -] RZN18#,VZN18#..4FC |
90501-07074 |
US $1.10 |
||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[11.1995 -] RZN180,VZN180..4FC |
90256-04003 |
US $2.97 |
||
|
33635A
|
33635A
33635-16020 Guide, Wire, No.1 (For Shift Lever)[11.1995 -] RZN180,VZN180..4FC |
33635-16020 |
US $13.40 |
||
|
33636
|
33636
33636-35010 Protector, Wire[11.1995 -] RZN18#,VZN18#..4FC |
33636-35010 |
US $2.87 |
||
|
33675A
|
33675A
90240-08054 Pin, W/hole (For Transmission Control Rod)[11.1995 -] RZN18#,VZN18#..4FC |
90240-08054 |
from US $1.79 |
||
|
33675B
|
33675B
90389-08005 Bushing(For Gear Selecting Rod)[11.1995 -] RZN18#,VZN18#..4FC |
90389-08005 |
from US $1.77 |
||
|
33675C
|
33675C
90480-17177 Grommet (For Transmission Control Rod)[11.1995 -] RZN18#,VZN18#..4FC |
90480-17177 |
from US $2.07 |
||
|
33702B
|
33702B
33702-35200 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[11.1995 - 08.2000] RZN180..4FC |
33702-35200 |
US $14.56 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[11.1995 -] RZN18#,VZN18#..4FC |
33723-22010 |
from US $11.47 |
||
|
33723G
|
33723G
90389-08005 Bushing(For Gear Selecting Rod)[11.1995 -] RZN18#,VZN18#..4FC |
90389-08005 |
from US $1.77 |
||
|
33723H
|
33723H
33572-22010 Grommet (For Floor Shift Control Shaft)[11.1995 -] RZN18#,VZN18#..4FC |
33572-22010 |
from US $3.47 |
||
|
33805
|
33805
33805-35020 Plate Sub-Assy, Shift Lock (For Floor Shift)SHIFT LOCK (FOR FLOOR SHIFT) [11.1995 -] RZN180,VZN180..4FC |
33805-35020 |
US $21.69 |
||
|
33886
|
33886
33886-16010 Stopper, Shift Lever[11.1995 - 05.1998] RZN180,VZN180..4FC |
33886-16010 |
US $1.35 |
||
|
33886
|
33886
33886-22020 Stopper, Shift Lever[05.1998 -] RZN180,VZN180..4FC |
33886-22020 |
US $1.75 |
||
|
35906
|
35906
35906-35090 Wire Sub-Assy, Indicator Lamp[11.1995 -] RZN180,VZN180..4FC |
35906-35090 |
US $15.58 |
||
|
35921
|
35921
35921-35190
Plate, Control Position Indicator
[11.1995 -] RZN180,VZN180..4FC |
35921-35190 |
— | ||
|
35971A
|
35971A
35971-35100 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [11.1995 -] RZN180,VZN180..4FC |
35971-35100 |
US $26.21 |
||
|
35974
|
35974
35974-35110 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [11.1995 -] RZN180,VZN180..4FC |
35974-35110 |
US $19.66 |
||
|
35975
|
35975
35975-35040 Cover, Slide (For Position Indicator)[11.1995 -] RZN180,VZN180..4FC |
35975-35040 |
US $14.33 |
||
|
9011906818
|
9011906818
90119-06818 BOLT WWASHER |
90119-06818 |
from US $0.72 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.90 |
||
|
9094901039
|
9094901039
90949-01039 CLAMP |
90949-01039 |
US $1.60 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
