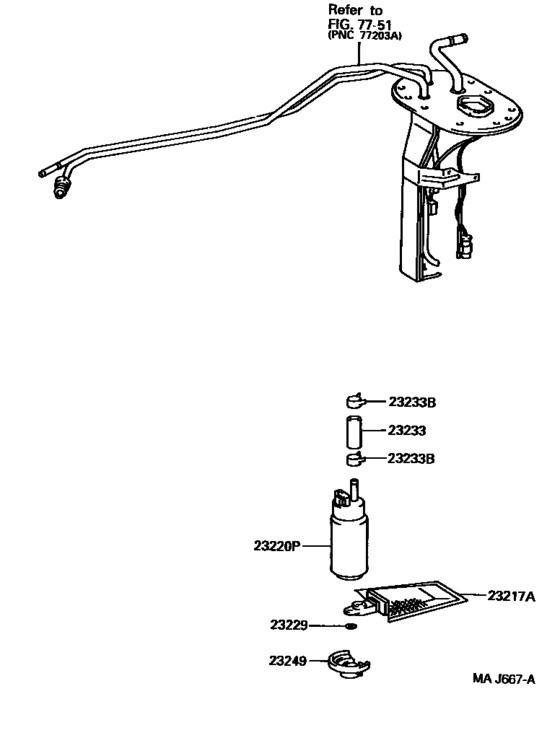

Fuel Injection System ([11.1995 - ] (9511- )3RZFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2000 - 2002
- Sales region
- Japan
- Frame
- RZN180
- grade
- SSRV
- body
- WIB
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2000
- To
- 11.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[11.1995 -] 3RZFE..RZN18#; 5VZFE..VZN18# |
23217-46090 |
from US $7.37 |
||
|
23220P
|
23220P
23221-46010 Pump Assy, Fuel[11.1995 -] 3RZFE..RZN18#; 5VZFE..VZN18# |
23221-46010 |
from US $309.50 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[11.1995 -] 3RZFE..RZN18#; 5VZFE..VZN18# |
23229-16010 |
from US $0.80 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[11.1995 -] 3RZFE..RZN18#; 5VZFE..VZN18# |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[11.1995 -] 3RZFE..RZN18#; 5VZFE..VZN18# |
23239-11010 |
from US $7.62 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[11.1995 -] 3RZFE..RZN18#; 5VZFE..VZN18# |
90467-12067 |
from US $1.27 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[11.1995 -] 3RZFE..RZN18#; 5VZFE..VZN18# |
23249-74610 |
from US $8.15 |
||
