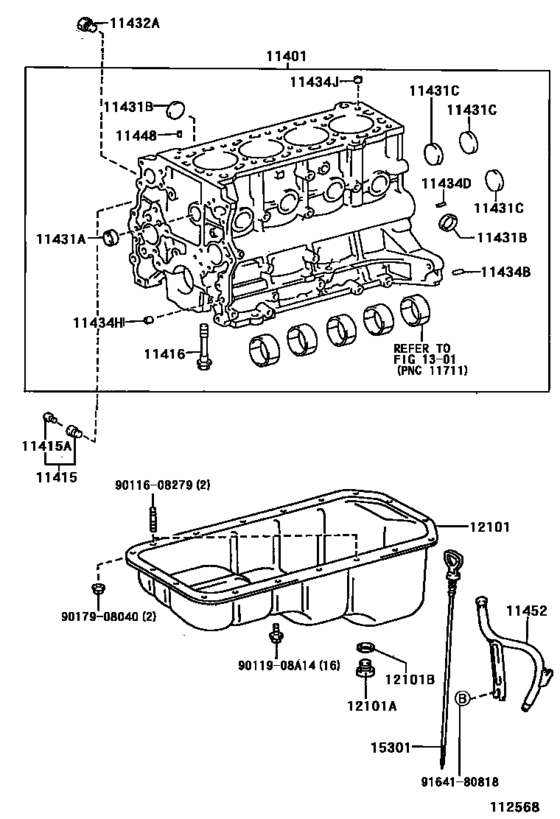

Cylinder Block ([11.2002 - ] (0211- )3RZFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-79686 Block Sub-Assy, Cylinder[11.2002 - 08.2004] 3RZFE..RZN21# |
11401-79686 |
US $3,276 |
||
| replacement | |||||
|
11401
|
11401
11401-79687 Block Sub-Assy, Cylinder[11.2002 - 08.2004] 3RZFE..RZN21# |
11401-79687 |
US $3,290.56 |
||
|
11415
|
11415
90910-09118 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.2002 - 08.2004] 3RZFE..RZN21# |
90910-09118 |
US $6.25 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[11.2002 - 08.2004] 3RZFE..RZN21# |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02092 Bolt(For Crankshaft Bearing Cap Set)[11.2002 - 08.2004] 3RZFE..RZN21# |
90910-02092 |
US $4.37 |
||
| replacement | |||||
|
11416
|
11416
90910-02179 Bolt(For Crankshaft Bearing Cap Set)[11.2002 - 08.2004] 3RZFE..RZN21# |
90910-02179 |
US $4.84 |
||
|
11431A
|
11431A
96411-63000 Plug, Tight[11.2002 - 08.2004] 3RZFE..RZN21# |
96411-63000 |
from US $3.76 |
||
|
11431B
|
11431B
96411-63500 Plug, Tight[11.2002 - 08.2004] 3RZFE..RZN21# |
96411-63500 |
from US $3.58 |
||
|
11431C
|
11431C
96411-64000 Plug, Tight, No.2[11.2002 - 08.2004] 3RZFE..RZN21# |
96411-64000 |
from US $4.12 |
||
|
11432A
|
11432A
90345-53009 Plug, W/head Taper Screw, No.1[11.2002 - 08.2004] 3RZFE..RZN21# |
90345-53009 |
US $3.14 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[11.2002 - 08.2004] 3RZFE..RZN21# 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.17 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[11.2002 - 08.2004] 3RZFE..RZN21# 長さ＝１４，外径＝６ |
90250-06003 |
US $1.61 |
||
|
11434H
|
11434H
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting)[11.2002 - 08.2004] 3RZFE..RZN21# |
90253-11005 |
US $1.08 |
||
|
11434J
|
11434J
90253-15001 Pin, Straight(For Clutch Housing Set)[02.2004 - 08.2004] 3RZFE..RZN21# |
90253-15001 |
from US $1.07 |
||
|
11434J
|
11434J
90253-15016 Pin, Straight(For End Plate)[11.2002 - 02.2004] 3RZFE..RZN21# |
90253-15016 |
from US $1.37 |
||
|
11448
|
11448
90977-02011 Orifice, Cylinder Block Oil[11.2002 - 08.2004] 3RZFE..RZN21# |
90977-02011 |
US $1.31 |
||
|
11452
|
11452
11409-75020 Guide, Oil Level Gage[11.2002 - 08.2004] 3RZFE..RZN21# |
11409-75020 |
from US $15.58 |
||
|
12101
|
12101
12101-75130 Pan Sub-Assy, Oil[11.2002 - 08.2004] 3RZFE..RZN21# |
12101-75130 |
US $247.52 |
||
| replacements | |||||
|
12101
|
12101
12101-75120 Pan Sub-Assy, OilOIL [11.2002 - 08.2004] 3RZFE..RZN21# |
12101-75120 |
US $247.52 |
||
|
12101
|
12101
12129-54010 Plug, Oil Pan[11.2002 - 08.2004] 3RZFE..RZN21# |
12129-54010 |
from US $12.75 |
||
|
12101
|
12101
91651-60614 Bolt[11.2002 - 08.2004] 3RZFE..RZN21# |
91651-60614 |
from US $1.19 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[11.2002 - 08.2004] 3RZFE..RZN21# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[11.2002 - 08.2004] 3RZFE..RZN21# |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[11.2002 - 08.2004] 3RZFE..RZN21# |
90430-12031 |
from US $0.84 |
||
|
15301
|
15301
15301-75011 Gage Sub-Assy, Oil Level[11.2002 - 08.2004] 3RZFE..RZN21# |
15301-75011 |
from US $10.84 |
||
|
9011908A14
|
9011908A14
90119-08A14 BOLT WWASHER |
90119-08A14 |
US $2.33 |
||
|
9011608279
|
9011608279
90116-08279 BOLT STUD |
90116-08279 |
from US $1.29 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
