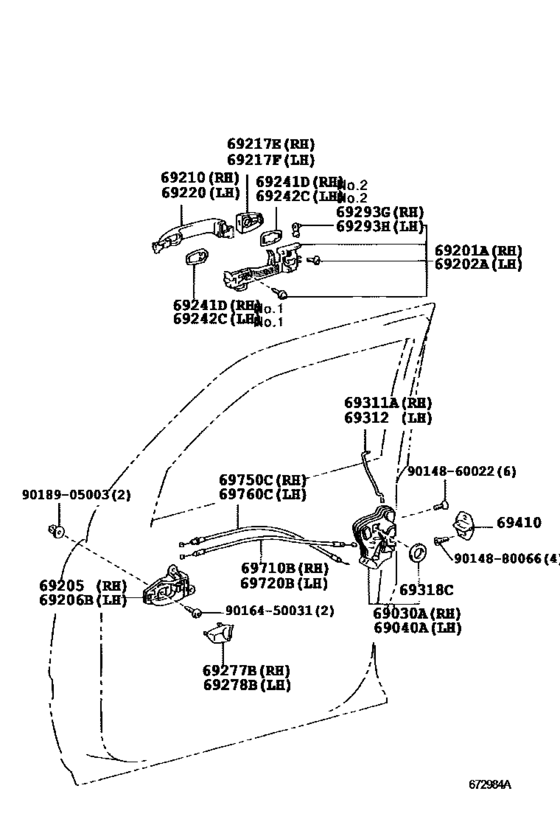

Front Door Lock & Handle ([11.2002 - ] (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-33241 Lock Assy, Front Door W/motor, Rh[11.2002 - 08.2004] RZN21# |
69030-33241 |
US $288 |
||
|
69040A
|
69040A
69040-33271 Lock Assy, Front Door W/motor, Lh[11.2002 - 08.2004] RZN21# |
69040-33271 |
US $187.82 |
||
|
69201A
|
69201A
69201-28010 Frame Sub-Assy, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# |
69201-28010 |
US $73.08 |
||
|
69202A
|
69202A
69202-28010 Frame Sub-Assy, Front Door Outside Handle, Lh[11.2002 - 08.2004] RZN21# |
69202-28010 |
US $73.08 |
||
|
69205
|
69205
69205-44020-B1 Handle Sub-Assy, Front Door Inside, Rh[11.2002 - 08.2004] RZN21# DK.GRAY,TRIM1#,4# |
69205-44020-B1 |
US $34.07 |
||
| replacement | |||||
|
69205
|
69205
69205-44020-C0 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [11.2002 - 08.2004] RZN21# DK.GRAY,TRIM1#,4# |
69205-44020-C0 |
US $34.07 |
||
|
69206B
|
69206B
69206-44020-B1 Handle Sub-Assy, Front Door Inside, Lh[11.2002 - 08.2004] RZN21# DK.GRAY,TRIM1#,4# |
69206-44020-B1 |
US $34.07 |
||
| replacement | |||||
|
69206B
|
69206B
69206-44020-C0 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [11.2002 - 08.2004] RZN21# DK.GRAY,TRIM1#,4# |
69206-44020-C0 |
US $34.07 |
||
|
69210
|
69210
69211-28070-A3 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# WHITE PEARL CS.,070 |
69211-28070-A3 |
US $35.95 |
||
|
69210
|
69210
69211-28070-B0
Handle Assy, Front Door, Outside Rh
[11.2002 - 08.2004] RZN21# SILVER ME.,1D4 |
69211-28070-B0 |
— | ||
| replacement | |||||
|
69210
|
69210
69211-28070-P2 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# SILVER ME.,1D4 |
69211-28070-P2 |
US $35.95 |
||
|
69210
|
69210
69211-28070-B4 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# DK.GRAY M.M.,1E9 |
69211-28070-B4 |
US $29.41 |
||
|
69210
|
69210
69211-28070-C1 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# BLACK,202 |
69211-28070-C1 |
from US $27.83 |
||
|
69210
|
69210
69211-28070-F2 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# CHAMPAGNE M.M.,587 |
69211-28070-F2 |
US $35.38 |
||
| replacement | |||||
|
69210
|
69210
69211-28070-E6 Handle Assy, Rear Door Outside, Rh[11.2002 - 08.2004] RZN21# CHAMPAGNE M.M.,587 |
69211-28070-E6 |
US $35.38 |
||
|
69210
|
69210
69211-28070-J1 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# DK.BLUE MC.,8Q0 |
69211-28070-J1 |
US $35.38 |
||
| replacement | |||||
|
69210
|
69210
69211-28070-R9 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# DK.BLUE MC.,8Q0 |
69211-28070-R9 |
US $29.38 |
||
|
69210
|
69210
69211-28070-J2 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# GRAYISH BLUE ME.,8R3 |
69211-28070-J2 |
US $35.38 |
||
|
69217E
|
69217E
69217-28010-A3 Cover, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# WHITE PEARL CS.,070 |
69217-28010-A3 |
from US $5.23 |
||
|
69217E
|
69217E
69217-28010-B0
Cover, Front Door Outside Handle, Rh
[11.2002 - 08.2004] RZN21# SILVER ME.,1D4 |
69217-28010-B0 |
— | ||
| replacement | |||||
|
69217E
|
69217E
69217-28010-P2 Cover, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# SILVER ME.,1D4 |
69217-28010-P2 |
US $8.24 |
||
|
69217E
|
69217E
69217-28010-B4 Cover, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# DK.GRAY M.M.,1E9 |
69217-28010-B4 |
US $6.12 |
||
|
69217E
|
69217E
69217-28010-C1 Cover, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# BLACK,202 |
69217-28010-C1 |
from US $5.87 |
||
|
69217E
|
69217E
69217-28010-F2 Cover, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# CHAMPAGNE M.M.,587 |
69217-28010-F2 |
US $7.43 |
||
| replacement | |||||
|
69217E
|
69217E
69217-28010-E7 Cover, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# CHAMPAGNE M.M.,587 |
69217-28010-E7 |
US $7.43 |
||
|
69217E
|
69217E
69217-28010-J1 Cover, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# DK.BLUE MC.,8Q0 |
69217-28010-J1 |
US $7.43 |
||
|
69217E
|
69217E
69217-28010-J2 Cover, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# GRAYISH BLUE ME.,8R3 |
69217-28010-J2 |
US $7.43 |
||
|
69217F
|
69217F
69217-60020-A1 Cover, Back Door Outside Handle[11.2002 - 08.2004] RZN21# WHITE PEARL CS.,070 |
69217-60020-A1 |
US $10.75 |
||
|
69217F
|
69217F
69217-60020-B0
Cover, Back Door Outside Handle
[11.2002 - 08.2004] RZN21# SILVER ME.,1D4 |
69217-60020-B0 |
— | ||
| replacement | |||||
|
69217F
|
69217F
69217-60020-P0 Cover, Back Door Outside Handle[11.2002 - 08.2004] RZN21# SILVER ME.,1D4 |
69217-60020-P0 |
US $10.75 |
||
|
69217F
|
69217F
69217-60020-B1 Cover, Back Door Outside Handle[11.2002 - 08.2004] RZN21# DK.GRAY M.M.,1E9 |
69217-60020-B1 |
US $8.15 |
||
|
69217F
|
69217F
69217-60020-C0 Cover, Back Door Outside Handle[11.2002 - 08.2004] RZN21# BLACK,202 |
69217-60020-C0 |
from US $7.06 |
||
|
69217F
|
69217F
69217-60020-F0 Cover, Back Door Outside Handle[11.2002 - 08.2004] RZN21# CHAMPAGNE M.M.,587 |
69217-60020-F0 |
US $9.90 |
||
| replacement | |||||
|
69217F
|
69217F
69217-60020-E7 Cover, Front Door Outside Handle, Lh[11.2002 - 08.2004] RZN21# CHAMPAGNE M.M.,587 |
69217-60020-E7 |
US $9.90 |
||
|
69217F
|
69217F
69217-60020-J0 Cover, Front Door Outside Handle, Lh[11.2002 - 08.2004] RZN21# DK.BLUE MC.,8Q0 |
69217-60020-J0 |
US $9.90 |
||
|
69217F
|
69217F
69217-60020-J1 Cover, Front Door Outside Handle, Lh[11.2002 - 08.2004] RZN21# GRAYISH BLUE ME.,8R3 |
69217-60020-J1 |
US $9.90 |
||
|
69220
|
69220
69211-28070-A3 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# WHITE PEARL CS.,070 |
69211-28070-A3 |
US $35.95 |
||
|
69220
|
69220
69211-28070-B0
Handle Assy, Front Door, Outside Rh
[11.2002 - 08.2004] RZN21# SILVER ME.,1D4 |
69211-28070-B0 |
— | ||
| replacement | |||||
|
69220
|
69220
69211-28070-P2 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# SILVER ME.,1D4 |
69211-28070-P2 |
US $35.95 |
||
|
69220
|
69220
69211-28070-B4 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# DK.GRAY M.M.,1E9 |
69211-28070-B4 |
US $29.41 |
||
|
69220
|
69220
69211-28070-C1 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# BLACK,202 |
69211-28070-C1 |
from US $27.83 |
||
|
69220
|
69220
69211-28070-F2 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# CHAMPAGNE M.M.,587 |
69211-28070-F2 |
US $35.38 |
||
| replacement | |||||
|
69220
|
69220
69211-28070-E6 Handle Assy, Rear Door Outside, Rh[11.2002 - 08.2004] RZN21# CHAMPAGNE M.M.,587 |
69211-28070-E6 |
US $35.38 |
||
|
69220
|
69220
69211-28070-J1 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# DK.BLUE MC.,8Q0 |
69211-28070-J1 |
US $35.38 |
||
| replacement | |||||
|
69220
|
69220
69211-28070-R9 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# DK.BLUE MC.,8Q0 |
69211-28070-R9 |
US $29.38 |
||
|
69220
|
69220
69211-28070-J2 Handle Assy, Front Door, Outside Rh[11.2002 - 08.2004] RZN21# GRAYISH BLUE ME.,8R3 |
69211-28070-J2 |
US $35.38 |
||
|
69241D
|
69241D
69241-28060 Pad, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# ＮＯ．１ |
69241-28060 |
from US $0.84 |
||
|
69241D
|
69241D
69242-60030 Pad, Front Door Outside Handle, Lh[11.2002 - 08.2004] RZN21# ＮＯ．２ |
69242-60030 |
from US $6.45 |
||
|
69242C
|
69242C
69241-28060 Pad, Front Door Outside Handle, Rh[11.2002 - 08.2004] RZN21# ＮＯ．１ |
69241-28060 |
from US $0.84 |
||
|
69242C
|
69242C
69242-60030 Pad, Front Door Outside Handle, Lh[11.2002 - 08.2004] RZN21# ＮＯ．２ |
69242-60030 |
from US $6.45 |
||
|
69277B
|
69277B
69297-30030-B2 Bezel, Front Door Inside Handle, Rh[11.2002 - 08.2004] RZN21# DK.GRAY,TRIM1#,4# |
69297-30030-B2 |
US $3.79 |
||
|
69278B
|
69278B
69298-30030-B2 Bezel, Front Door Inside Handle, Lh[11.2002 - 08.2004] RZN21# DK.GRAY,TRIM1#,4# |
69298-30030-B2 |
US $3.79 |
||
|
69293G
|
69293G
69293-12030 Snap, Front Door Outside Handle[11.2002 - 08.2004] RZN21# |
69293-12030 |
from US $1.97 |
||
|
69293H
|
69293H
69293-12040 Snap, Front Door Outside Handle[11.2002 - 08.2004] RZN21# |
69293-12040 |
from US $1.93 |
||
|
69311A
|
69311A
69311-60040 Rod, Front Door Lock Open, Rh[11.2002 - 08.2004] RZN21# |
69311-60040 |
US $7.57 |
||
|
69312
|
69312
69312-60040 Rod, Front Door Lock Open, Lh[11.2002 - 08.2004] RZN21# |
69312-60040 |
US $7.57 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[11.2002 - 08.2004] RZN21# |
69318-51010 |
US $2.15 |
||
|
69410
|
69410
69410-33010 Plate Assy, Front Door Lock Striker[11.2002 - 08.2004] RZN21# |
69410-33010 |
from US $18.04 |
||
|
69710B
|
69710B
69710-35040 Cable Assy, Front Door Lock Remote Control, Rh[11.2002 - 08.2004] RZN21# |
69710-35040 |
US $20.27 |
||
|
69720B
|
69720B
69710-35040 Cable Assy, Front Door Lock Remote Control, Rh[11.2002 - 08.2004] RZN21# |
69710-35040 |
US $20.27 |
||
|
69750C
|
69750C
69750-35010 Cable Assy, Front Door Inside Locking, Rh[11.2002 - 08.2004] RZN21# |
69750-35010 |
US $21.49 |
||
|
69760C
|
69760C
69750-35010 Cable Assy, Front Door Inside Locking, Rh[11.2002 - 08.2004] RZN21# |
69750-35010 |
US $21.49 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.49 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.66 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.64 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
