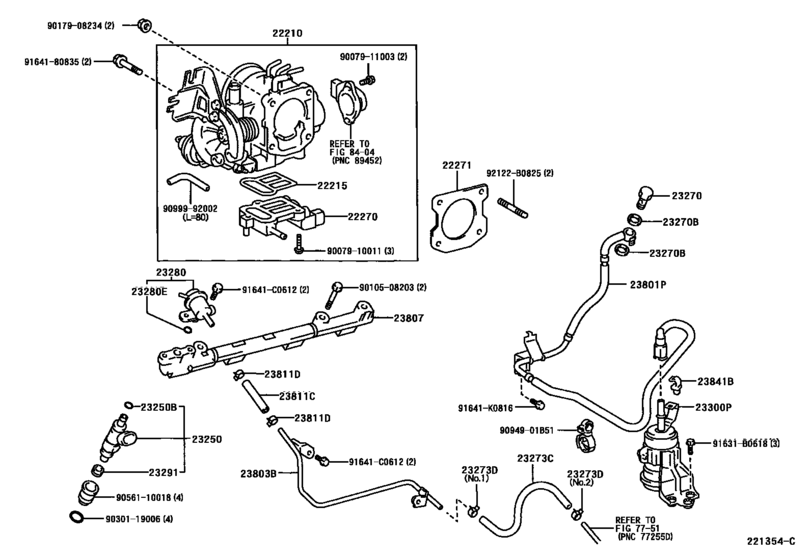

Fuel Injection System ([11.2002 - ] (0211- )3RZFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-75240 Body Assy, Throttle[11.2002 - 08.2004] 3RZFE..RZN21# |
22210-75240 |
US $1,299.92 |
||
|
22215
|
22215
22215-7A680 Gasket, Throttle Body Cover[11.2002 - 08.2004] 3RZFE..RZN21# |
22215-7A680 |
from US $3.32 |
||
|
22270
|
22270
22270-75050 Valve Assy, Idle Speed Control(For Thlottle Body)[11.2002 - 03.2003] 3RZFE..RZN21# |
22270-75050 |
US $601.33 |
||
| replacement | |||||
|
22270
|
22270
22270-75051 Valve Assy, Idle Speed Control(For Thlottle Body)[11.2002 - 03.2003] 3RZFE..RZN21# |
22270-75051 |
from US $352.68 |
||
|
22270
|
22270
22270-75051 Valve Assy, Idle Speed Control(For Thlottle Body)[03.2003 - 08.2004] 3RZFE..RZN21# |
22270-75051 |
from US $352.68 |
||
|
22271
|
22271
22271-75020 Gasket, Throttle Body[11.2002 - 08.2004] 3RZFE..RZN21# |
22271-75020 |
from US $2.32 |
||
|
23250
|
23250
23209-79135 Injector Assy, Fuel[11.2002 - 08.2004] 3RZFE..RZN21# |
23209-79135 |
from US $211.83 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[11.2002 - 08.2004] 3RZFE..RZN21# |
90301-07024 |
from US $2.65 |
||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[11.2002 - 08.2004] 3RZFE..RZN21# |
23207-46010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[11.2002 - 08.2004] 3RZFE..RZN21# |
23207-20011 |
from US $59.75 |
||
|
23270B
|
23270B
23279-74010 Gasket(For Fuel Pump Hose)[11.2002 - 08.2004] 3RZFE..RZN21# |
23279-74010 |
from US $1.09 |
||
|
23273C
|
23273C
23273-75220 Hose, Fuel, No.2[11.2002 - 08.2004] 3RZFE..RZN21# |
23273-75220 |
US $6.41 |
||
|
23273D
|
23273D
96132-51100 Clip (For Hose)[11.2002 - 08.2004] 3RZFE..RZN21# ＮＯ．１ |
96132-51100 |
from US $1.42 |
||
|
23273D
|
23273D
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[11.2002 - 08.2004] 3RZFE..RZN21# ＮＯ．２ |
96135-51100 |
from US $1.83 |
||
|
23280
|
23280
23280-75020 Regulator Assy, Fuel Pressure[11.2002 - 08.2004] 3RZFE..RZN21# |
23280-75020 |
from US $79.56 |
||
|
23280E
|
23280E
90301-07024 Ring, O(For Fuel Injector)[11.2002 - 08.2004] 3RZFE..RZN21# |
90301-07024 |
from US $2.65 |
||
|
23291
|
23291
23291-73010 Insulator, Injector Vibration[11.2002 - 08.2004] 3RZFE..RZN21# |
23291-73010 |
from US $3.28 |
||
|
23300P
|
23300P
23300-31090 Filter, Fuel(For Efi)[11.2002 - 08.2004] 3RZFE..RZN21# |
23300-31090 |
from US $69.73 |
||
|
23801P
|
23801P
23801-75110
Pipe Sub-Assy, Fuel, No.1
[11.2002 - 08.2004] 3RZFE..RZN21# |
23801-75110 |
— | ||
|
23803B
|
23803B
23803-75020 Pipe Sub-Assy, Fuel, No.3[11.2002 - 08.2004] 3RZFE..RZN21# |
23803-75020 |
US $37.91 |
||
|
23807
|
23807
23807-75021
Pipe Sub-Assy, Fuel Delivery
[11.2002 - 09.2003] 3RZFE..RZN21# |
23807-75021 |
— | ||
| replacement | |||||
|
23807
|
23807
23807-75022 Pipe Sub-Assy, Fuel Delivery[11.2002 - 09.2003] 3RZFE..RZN21# |
23807-75022 |
US $127.55 |
||
|
23807
|
23807
23807-75022 Pipe Sub-Assy, Fuel Delivery[09.2003 - 08.2004] 3RZFE..RZN21# |
23807-75022 |
US $127.55 |
||
|
23811C
|
23811C
90445-12290 Hose, Fuel(For Fuel Pipe To Pressure Regulator)[11.2002 - 08.2004] 3RZFE..RZN21# ＊Ｈ，Ｌ＝１２０ |
90445-12290 |
US $4.54 |
||
|
23811D
|
23811D
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[11.2002 - 08.2004] 3RZFE..RZN21# |
96135-51100 |
from US $1.83 |
||
|
23841B
|
23841B
90469-12012 Clamp Or Clip(For Fuel Hose)[11.2002 - 08.2004] 3RZFE..RZN21# |
90469-12012 |
from US $3.49 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.66 |
||
|
91641C0612
|
91641C0612
91641-C0612 New Genuine Part |
91641-C0612 |
US $0.87 |
||
|
91641K0816
|
91641K0816
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.33 |
||
|
92122B0825
|
92122B0825
92122-B0825 Bolt, Stud(For Water Outlet Setting) |
92122-B0825 |
US $1.51 |
||
|
9094901B51
|
9094901B51
90949-01B51 Clamp(For Flexible Hose Clamp) |
90949-01B51 |
US $1.31 |
||
|
9007910011
|
9007910011
90079-10011 New Genuine Part |
90079-10011 |
US $1.97 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9010508203
|
9010508203
90105-08203
New Genuine Part
|
90105-08203 |
— | ||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.82 |
||
|
9030119006
|
9030119006
90301-19006 Ring, O(For Fuel Injector) |
90301-19006 |
from US $1.66 |
||
|
9056110018
|
9056110018
90561-10018 Spacer(For Fuel Injector) |
90561-10018 |
from US $1.93 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9164180835
|
9164180835
91641-80835 Bolt, Compressor, No.1 |
91641-80835 |
US $2.51 |
||
