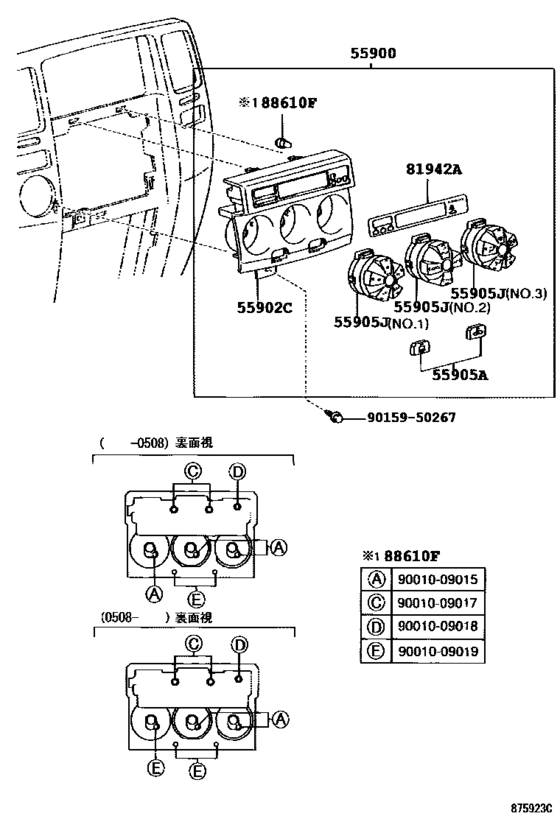

Heating & Air Conditioning - Control & Air Duct ([11.2002 - ] ｺﾝﾄﾛ-ﾙ (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900
|
55900
55900-35420
Control Assy, Air Conditioner
[11.2002 - 08.2004] RZN21#..SSRX |
55900-35420 |
— | ||
|
55902C
|
55902C
55902-35020 Panel Sub-Assy, Air Conditioner[11.2002 - 08.2004] RZN21#..SSRX |
55902-35020 |
US $768.77 |
||
|
55905A
|
55905A
55905-35340 Knob, Heater Control[11.2002 - 08.2004] RZN21# |
55905-35340 |
US $20.38 |
||
|
55905J
|
55905J
55905-35350 Knob Sub-Assy, Control[11.2002 - 08.2004] RZN21# ＮＯ．１ |
55905-35350 |
US $63.67 |
||
|
55905J
|
55905J
55905-35360 Knob Sub-Assy, Control[11.2002 - 08.2004] RZN21# ＮＯ．３ |
55905-35360 |
US $56.35 |
||
|
55905J
|
55905J
55905-35370 Knob Sub-Assy, Control[11.2002 - 08.2004] RZN21# ＮＯ．２ |
55905-35370 |
US $51.25 |
||
|
81942A
|
81942A
81942-35010 Sheet, Heater Control Name, No.1[11.2002 - 08.2004] RZN21# |
81942-35010 |
US $7.57 |
||
|
88610F
|
88610F
90010-09015 Bulb, Cooler Control Switch[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# ＴＹＰＥ Ａ：イラスト参照 |
90010-09015 |
from US $3.28 |
||
|
88610F
|
88610F
90010-09017 Bulb, Cooler Control Switch[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# ＴＹＰＥ Ｃ：イラスト参照 |
90010-09017 |
US $6.99 |
||
|
88610F
|
88610F
90010-09018 Bulb, Cooler Control Switch[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# ＴＹＰＥ Ｄ：イラスト参照 |
90010-09018 |
from US $3.69 |
||
|
88610F
|
88610F
90010-09019 Bulb, Cooler Control Switch[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# ＴＹＰＥ Ｅ：イラスト参照 |
90010-09019 |
from US $3.28 |
||
|
9015950267
|
9015950267
90159-50267 SCREW WWASHER |
90159-50267 |
from US $0.78 |
