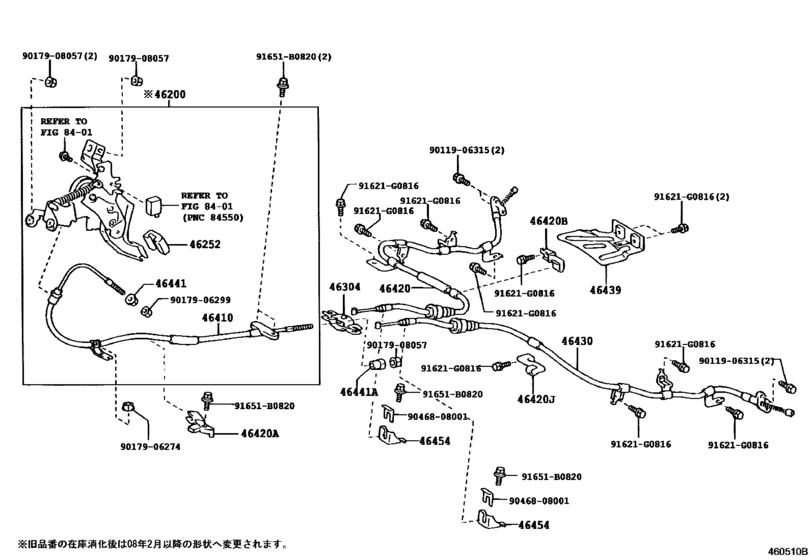

Parking Brake & Cable ([11.2002 - 02.2008] (0211-0802)) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46200
|
46200
46200-35020 Pedal Assy, Parking Brake Control[11.2002 - 08.2004] RZN21# |
46200-35020 |
US $301.39 |
||
| replacements | |||||
|
46200
|
46200
46210-35050 Pedal Assy, Parking Brake Control[11.2002 - 08.2004] RZN21# |
46210-35050 |
US $113.57 |
||
|
46200
|
46200
46410-3D070 Cable Assy, Parking Brake, No.1[11.2002 - 08.2004] RZN21# |
46410-3D070 |
US $53.58 |
||
|
46200
|
46200
46441-12010 Nut, Wire Adjusting, No.1[11.2002 - 08.2004] RZN21# |
46441-12010 |
US $2.87 |
||
|
46200
|
46200
90179-06299 Nut, Wire Adjusting, No.1[11.2002 - 08.2004] RZN21# |
90179-06299 |
from US $0.66 |
||
|
46252
|
46252
46252-35010 Pad, Parking Pedal[11.2002 - 08.2004] RZN21# |
46252-35010 |
US $6.70 |
||
|
46304
|
46304
46304-17020 Equalizer Sub-Assy, Parking Brake[11.2002 - 08.2004] RZN21# |
46304-17020 |
US $6.46 |
||
|
46410
|
46410
46410-3D070 Cable Assy, Parking Brake, No.1[11.2002 - 08.2004] RZN21# |
46410-3D070 |
US $53.58 |
||
|
46420
|
46420
46420-35760 Cable Assy, Parking Brake, No.2[11.2002 - 08.2004] RZN21# |
46420-35760 |
from US $72.60 |
||
|
46420A
|
46420A
46411-35080 Clamp, No.1(For Parking Brake Cable)[11.2002 - 08.2004] RZN21# |
46411-35080 |
US $8.74 |
||
|
46420B
|
46420B
46421-35020 Clamp, No.1(For Parking Brake Cable)[11.2002 - 08.2004] RZN21# |
46421-35020 |
US $4.80 |
||
|
46420J
|
46420J
46431-35020 Clamp, No.2(For Parking Brake Cable)[11.2002 - 08.2004] RZN21# |
46431-35020 |
US $6.12 |
||
|
46430
|
46430
46430-35550 Cable Assy, Parking Brake, No.3[11.2002 - 08.2004] RZN21# |
46430-35550 |
from US $68.74 |
||
|
46439
|
46439
46439-35060 Insulator, Parking Brake Cable Heat[11.2002 - 08.2004] RZN21# |
46439-35060 |
US $23.15 |
||
|
46441
|
46441
46441-12010 Nut, Wire Adjusting, No.1[11.2002 - 08.2004] RZN21# |
46441-12010 |
US $2.87 |
||
|
46441A
|
46441A
46441-35020 Nut, Wire Adjusting, No.1[11.2002 - 08.2004] RZN21# |
46441-35020 |
US $2.10 |
||
|
46454
|
46454
46454-35180 Bracket, Cable Retainer, Front[11.2002 - 08.2004] RZN21# |
46454-35180 |
US $4.80 |
||
|
91621G0816
|
91621G0816
91621-G0816 BOLT WWASHER |
91621-G0816 |
US $2.51 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011906315
|
9011906315
90119-06315 BOLT |
90119-06315 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9017908057
|
9017908057
90179-08057 NUT |
90179-08057 |
from US $0.76 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
