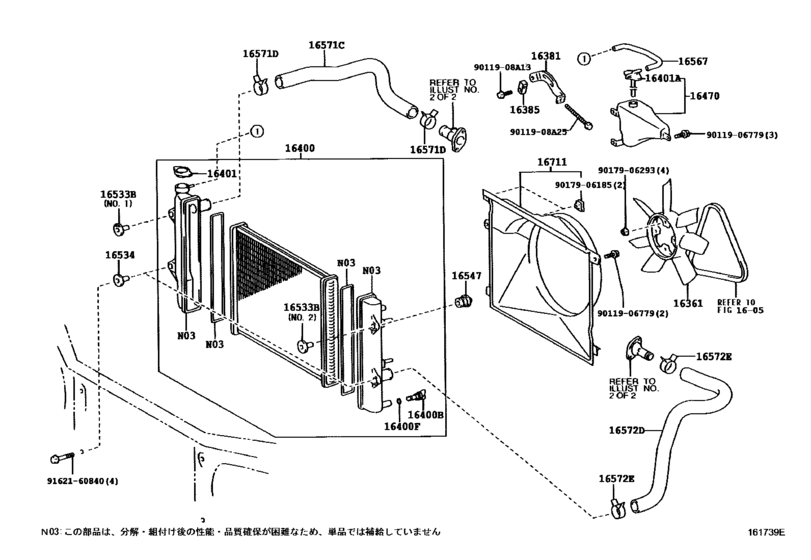

Radiator & Water Outlet ([11.2002 - ] (0211- )3RZFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-75020
Fan
[11.2002 - 08.2004] 3RZFE..RZN21# |
16361-75020 |
— | ||
| replacement | |||||
|
16361
|
16361
16361-75021 Fan[11.2002 - 08.2004] 3RZFE..RZN21# |
16361-75021 |
from US $79.63 |
||
|
16381
|
16381
16381-75050 Bar, Fan Belt Adjusting[11.2002 - 08.2004] 3RZFE..RZN21# |
16381-75050 |
US $30.58 |
||
|
16385
|
16385
16385-75030 Slider, Fan Belt Adjusting[11.2002 - 08.2004] 3RZFE..RZN21# |
16385-75030 |
US $14.33 |
||
|
16400
|
16400
16400-62230 Radiator Assy[11.2002 - 08.2004] 3RZFE..RZN21# |
16400-62230 |
US $639.18 |
||
| replacement | |||||
|
16400
|
16400
16400-62231 Radiator Assy[11.2002 - 08.2004] 3RZFE..RZN21# |
16400-62231 |
US $787.80 |
||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[11.2002 - 08.2004] 3RZFE..RZN21# |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[11.2002 - 08.2004] 3RZFE..RZN21# |
16492-21050 |
from US $2.16 |
||
|
16401
|
16401
16401-5B630
Cap Sub-Assy, Radiator
[11.2002 - 08.2004] 3RZFE..RZN21# |
16401-5B630 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-31650 Cap Sub-Assy, Radiator[11.2002 - 08.2004] 3RZFE..RZN21# |
16401-31650 |
from US $16.97 |
||
|
16401A
|
16401A
16405-50051 Cap Sub-Assy, Radiator Reserve Tank[11.2002 - 08.2004] 3RZFE..RZN21# |
16405-50051 |
from US $5.77 |
||
|
16470
|
16470
16470-50140 Tank Assy, Radiator Reserve[11.2002 - 08.2004] 3RZFE..RZN21# |
16470-50140 |
from US $65.02 |
||
|
16533B
|
16533B
16533-50090 Support, Radiator, No.1[11.2002 - 08.2004] 3RZFE..RZN21# ＮＯ．１ |
16533-50090 |
from US $5.79 |
||
|
16533B
|
16533B
16534-50050 Support, Radiator, No.1[11.2002 - 08.2004] 3RZFE..RZN21# ＮＯ．２ |
16534-50050 |
from US $5.64 |
||
|
16534
|
16534
16534-50050 Support, Radiator, No.1[11.2002 - 08.2004] 3RZFE..RZN21# |
16534-50050 |
from US $5.64 |
||
|
16547
|
16547
16547-50010 Bush, Radiator Support, No.1[11.2002 - 08.2004] 3RZFE..RZN21# |
16547-50010 |
from US $7.49 |
||
|
16567
|
16567
16567-31010 Hose(For Radiator Reserve Tank)[11.2002 - 08.2004] 3RZFE..RZN21# |
16567-31010 |
from US $5.17 |
||
|
16571C
|
16571C
16571-75230 Hose, Radiator, No.1[11.2002 - 08.2004] 3RZFE..RZN21# |
16571-75230 |
from US $22.02 |
||
|
16571D
|
16571D
90467-37005 Clip(For Water Inlet Hose)[11.2002 - 08.2004] 3RZFE..RZN21# |
90467-37005 |
from US $3.98 |
||
|
16572D
|
16572D
16572-75240 Hose, Radiator, No.2[11.2002 - 08.2004] 3RZFE..RZN21# |
16572-75240 |
from US $24.10 |
||
|
16572E
|
16572E
90467-37005 Clip(For Water Inlet Hose)[11.2002 - 08.2004] 3RZFE..RZN21# |
90467-37005 |
from US $3.98 |
||
|
16711
|
16711
16711-75220 Shroud, Fan[11.2002 - 08.2004] 3RZFE..RZN21# |
16711-75220 |
from US $120.67 |
||
|
9011908A13
|
9011908A13
90119-08A13 New Genuine Part |
90119-08A13 |
US $1.31 |
||
|
9011908A25
|
9011908A25
90119-08A25 BOLT WWASHER |
90119-08A25 |
US $2.48 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.68 |
||
|
9017906185
|
9017906185
90179-06185 CLIP BUMPER |
90179-06185 |
US $3.94 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
|
9162160840
|
9162160840
91621-60840 Bolt(For Rocker Support Set) |
91621-60840 |
from US $0.86 |
||
