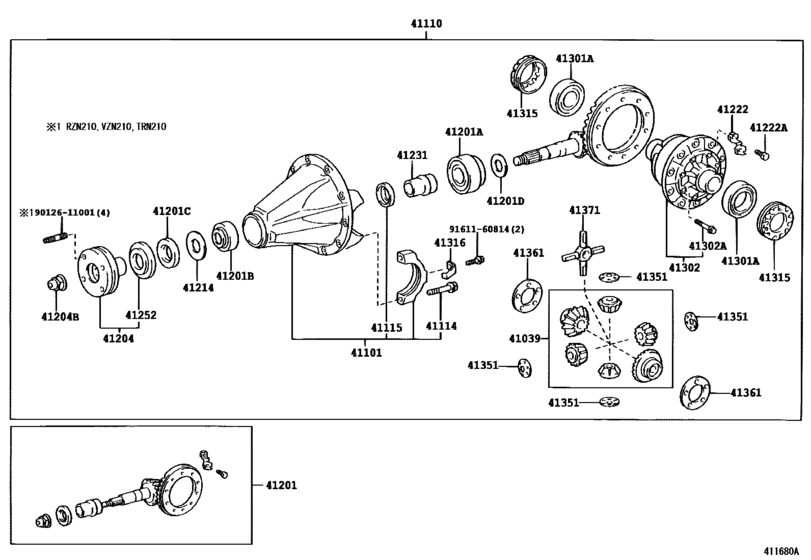

Rear Axle Housing & Differential ([11.2002 - ] (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41039
|
41039
41039-34080 Gear Kit, Differential, Rear[11.2002 - 08.2004] RZN21# |
41039-34080 |
from US $234.12 |
||
|
41101
|
41101
41101-35170
Carrier Sub-Assy, Differential, Rear
[11.2002 - 08.2004] RZN21# |
41101-35170 |
— | ||
| replacements | |||||
|
41101
|
41101
41101-35172 Carrier Sub-Assy, Differential, Rear[11.2002 - 08.2004] RZN21# |
41101-35172 |
US $414.09 |
||
|
41101
|
41101
41115-35010 Ring, Differential Oil Storage[11.2002 - 08.2004] RZN21# |
41115-35010 |
from US $3.08 |
||
|
41110
|
41110
41110-3D500 Carrier Assy, Differential, Rear[11.2002 - 08.2004] RZN210 ＊ＦＧＲ＝４１：９＝４．５５５ |
41110-3D500 |
US $2,082.08 |
||
|
41114
|
41114
90105-12053 Bolt (For Rear Differential Carrier)[11.2002 - 08.2004] RZN21# |
90105-12053 |
from US $1.46 |
||
|
41115
|
41115
41115-35010 Ring, Differential Oil Storage[11.2002 - 08.2004] RZN21# |
41115-35010 |
from US $3.08 |
||
|
41201
|
41201
41201-80192 Final Gear Kit, Differential, Rear[11.2002 - 08.2005] RZN210,TRN210 ＊ＦＧＲ＝４１：９＝４．５５６ |
41201-80192 |
US $773.14 |
||
|
41201A
|
41201A
90366-35087 Bearing , Tapered Roller (for front drive pinion)[11.2002 - 08.2004] RZN21# |
90366-35087 |
from US $58.80 |
||
|
41201B
|
41201B
90366-30067 Bearing (For Rear Drive Pinion Front)[11.2002 - 08.2004] RZN21# |
90366-30067 |
from US $45.73 |
||
|
41201C
|
41201C
90311-41009 Seal, Oil (For Front Differential Carrier)[11.2002 - 08.2004] RZN21# |
90311-41009 |
from US $10.93 |
||
|
41201D
|
41201D
90201-35497 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．７０ |
90201-35497 |
from US $2.83 |
||
|
41201D
|
41201D
90201-35498 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．７３ |
90201-35498 |
from US $2.81 |
||
|
41201D
|
41201D
90201-35499 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．７６ |
90201-35499 |
from US $2.79 |
||
|
41201D
|
41201D
90201-35500 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．７９ |
90201-35500 |
from US $2.81 |
||
|
41201D
|
41201D
90201-35501 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．８２ |
90201-35501 |
from US $2.81 |
||
|
41201D
|
41201D
90201-35502 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．８５ |
90201-35502 |
from US $3.10 |
||
|
41201D
|
41201D
90201-35503 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．８８ |
90201-35503 |
from US $2.93 |
||
|
41201D
|
41201D
90201-35504 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．９１ |
90201-35504 |
US $3.23 |
||
|
41201D
|
41201D
90201-35505 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．９４ |
90201-35505 |
US $3.23 |
||
|
41201D
|
41201D
90201-35506 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝１．９７ |
90201-35506 |
US $3.23 |
||
|
41201D
|
41201D
90201-35507 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．００ |
90201-35507 |
from US $2.89 |
||
|
41201D
|
41201D
90201-35508 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．０３ |
90201-35508 |
from US $2.93 |
||
|
41201D
|
41201D
90201-35509 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．０６ |
90201-35509 |
from US $2.91 |
||
|
41201D
|
41201D
90201-35510 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．０９ |
90201-35510 |
from US $3.23 |
||
|
41201D
|
41201D
90201-35511 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．１２ |
90201-35511 |
from US $2.91 |
||
|
41201D
|
41201D
90201-35512 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．１５ |
90201-35512 |
US $3.23 |
||
|
41201D
|
41201D
90201-35513 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．１８ |
90201-35513 |
from US $3.16 |
||
|
41201D
|
41201D
90201-35514 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．２１ |
90201-35514 |
from US $3.23 |
||
|
41201D
|
41201D
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．２４，マーク ０１ |
90201-35515 |
US $2.15 |
||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．２７，マーク ０２ |
90201-35516 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．３０，マーク ０３ |
90201-35517 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[11.2002 - 08.2004] RZN21# 厚さ＝２．３３，マーク ０４ |
90201-35518 |
from US $2.15 |
||
|
41204
|
41204
41204-35090
Flange Sub-Assy, Rear Drive Pinion Companion, Rear
[11.2002 - 08.2004] RZN210 |
41204-35090 |
— | ||
|
41204B
|
41204B
90177-22003 Nut (For Rear Drive Pinion)[11.2002 - 08.2004] RZN21# 外径＝３９．５ |
90177-22003 |
from US $2.28 |
||
|
41214
|
41214
41214-26011 Slinger, Rear Differential Drive Pinion Oil[11.2002 - 08.2004] RZN21# |
41214-26011 |
from US $4.50 |
||
|
41222
|
41222
41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock[11.2002 - 08.2004] RZN21# |
41222-35020 |
from US $2.73 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[11.2002 - 08.2004] RZN21# |
90101-11353 |
from US $0.90 |
||
|
41231
|
41231
41231-24010 Spacer, Rear Differential Drive Pinion Bearing[11.2002 - 08.2004] RZN21# |
41231-24010 |
from US $11.47 |
||
|
41252
|
41252
41252-35060
Deflector, Dust (For Rear Differential)
[11.2002 - 08.2004] RZN210 |
41252-35060 |
— | ||
|
41301A
|
41301A
90366-50007 Bearing(For Rear Differential Case)[11.2002 - 08.2004] RZN21# |
90366-50007 |
from US $44.40 |
||
|
41302
|
41302
41302-35020
Case Sub-Assy, Rear Differential
[11.2002 - 08.2004] RZN21# |
41302-35020 |
— | ||
|
41302A
|
41302A
90105-10084
Bolt(For Rear Differential Case)
[11.2002 - 08.2004] RZN21# |
90105-10084 |
— | ||
| replacement | |||||
|
41302A
|
41302A
90105-10570 Bolt(For Rear Differential Case)[11.2002 - 08.2004] RZN21# |
90105-10570 |
US $1.49 |
||
|
41315
|
41315
41315-35020 Nut, Rear Differential Bearing Adjusting[11.2002 - 08.2004] RZN21# |
41315-35020 |
from US $6.63 |
||
|
41316
|
41316
41316-35010 Lock, Rear Differential Bearing Adjusting Nut[11.2002 - 08.2004] RZN21# |
41316-35010 |
US $1.61 |
||
|
41351
|
41351
41351-30060 Washer, Rear Differential Pinion Thrust[11.2002 - 08.2004] RZN21# |
41351-30060 |
from US $2.07 |
||
|
41361
|
41361
41361-35310 Washer, Rear Differential Side Gear Thrust, No.1[11.2002 - 08.2004] RZN21# 厚さ＝０．９ |
41361-35310 |
from US $3.32 |
||
|
41361
|
41361
41361-35320 Washer, Rear Differential Side Gear Thrust, No.1[11.2002 - 08.2004] RZN21# 厚さ＝１．０ |
41361-35320 |
US $3.32 |
||
|
41361
|
41361
41361-35330 Washer, Rear Differential Side Gear Thrust, No.1[11.2002 - 08.2004] RZN21# 厚さ＝１．１ |
41361-35330 |
from US $3.49 |
||
|
41361
|
41361
41361-35340 Washer, Rear Differential Side Gear Thrust, No.1[11.2002 - 08.2004] RZN21# 厚さ＝１．２ |
41361-35340 |
US $4.02 |
||
|
41361
|
41361
41361-35350 Washer, Rear Differential Side Gear Thrust, No.1[11.2002 - 08.2004] RZN21# 厚さ＝１．３ |
41361-35350 |
US $4.72 |
||
|
41371
|
41371
41371-35020 Spider, Rear Differential[11.2002 - 08.2004] RZN21# |
41371-35020 |
from US $56.78 |
||
|
9012611001
|
9012611001
90126-11001 Bolt (For Rear Differential Carrier) |
90126-11001 |
US $1.49 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
