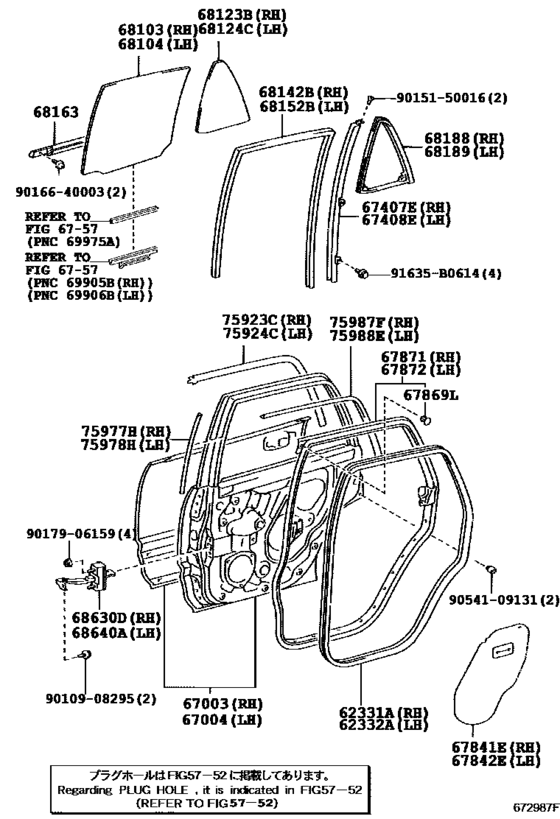

Rear Door Panel & Glass ([11.2002 - ] (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62331A
|
62331A
62331-35020-B0 Weatherstrip, Rear Door Opening Trim, Rh[11.2002 - 08.2004] RZN21# STONE,TRIM1# |
62331-35020-B0 |
US $131.04 |
||
|
62331A
|
62331A
62331-35020-E0 Weatherstrip, Rear Door Opening Trim, Rh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
62331-35020-E0 |
US $103.38 |
||
|
62332A
|
62332A
62332-35020-B0 Weatherstrip, Rear Door Opening Trim, Lh[11.2002 - 08.2004] RZN21# STONE,TRIM1# |
62332-35020-B0 |
US $131.04 |
||
|
62332A
|
62332A
62332-35020-E0 Weatherstrip, Rear Door Opening Trim, Lh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
62332-35020-E0 |
US $103.38 |
||
|
67003
|
67003
67003-35160 Panel Sub-Assy, Rear Door, Rh[11.2002 - 08.2004] RZN21# |
67003-35160 |
US $867.78 |
||
| replacement | |||||
|
67003
|
67003
67003-35171 Panel Sub-Assy, Rear Door, Rh[11.2002 - 08.2004] RZN21# |
67003-35171 |
US $720.72 |
||
|
67004
|
67004
67004-35160 Panel Sub-Assy, Rear Door, Lh[11.2002 - 08.2004] RZN21# |
67004-35160 |
US $867.78 |
||
| replacement | |||||
|
67004
|
67004
67004-35171 Panel Sub-Assy, Rear Door, Lh[11.2002 - 08.2004] RZN21# |
67004-35171 |
US $720.72 |
||
|
67407E
|
67407E
67407-35040 Bar Sub-Assy, Rear Door Window Division, Rh[11.2002 - 08.2004] RZN21# |
67407-35040 |
US $39.17 |
||
|
67408E
|
67408E
67408-35040
Bar Sub-Assy, Rear Door Window Division, Lh
[11.2002 - 08.2004] RZN21# |
67408-35040 |
— | ||
|
67841E
|
67841E
67841-35090 Cover, Rear Door Service Hole, Rh[11.2002 - 08.2004] RZN21# |
67841-35090 |
US $7.43 |
||
| replacement | |||||
|
67841E
|
67841E
67805-35010 Cover, Rear Door Service Hole, Rh[11.2002 - 08.2004] RZN21# |
67805-35010 |
US $7.43 |
||
|
67842E
|
67842E
67842-35050 Cover, Rear Door Service Hole, Lh[11.2002 - 08.2004] RZN21# |
67842-35050 |
US $7.43 |
||
| replacement | |||||
|
67842E
|
67842E
67806-35010 Cover, Rear Door Service Hole, Lh[11.2002 - 08.2004] RZN21# |
67806-35010 |
US $7.43 |
||
|
67869L
|
67869L
67869-35010 Clip, Front Door Weatherstrip[11.2002 - 08.2004] RZN21# |
67869-35010 |
from US $1.97 |
||
|
67871
|
67871
67871-35060
Weatherstrip, Rear Door, Rh
[11.2002 - 08.2004] RZN21# |
67871-35060 |
— | ||
| replacement | |||||
|
67871
|
67871
67871-35080 Weatherstrip, Rear Door, Rh[11.2002 - 08.2004] RZN21# |
67871-35080 |
US $96.10 |
||
|
67872
|
67872
67872-35060
Weatherstrip, Rear Door, Lh
[11.2002 - 08.2004] RZN21# |
67872-35060 |
— | ||
| replacement | |||||
|
67872
|
67872
67872-35080 Weatherstrip, Rear Door, Lh[11.2002 - 08.2004] RZN21# |
67872-35080 |
US $96.10 |
||
|
68103
|
68103
68113-35100
Glass Sub-Assy, Rear Door, Rh
[11.2002 - 08.2004] RZN21# ＊ＵＶＣＴＴ，厚さ＝３．１，ダークグレー |
68113-35100 |
— | ||
|
68104
|
68104
68114-35100
Glass Sub-Assy, Rear Door, Lh
[11.2002 - 08.2004] RZN21# ＊ＵＶＣＴＴ，厚さ＝３．１，ダークグレー |
68114-35100 |
— | ||
|
68123B
|
68123B
68123-35070 Glass, Rear Door Quarter Window, Rh[11.2002 - 08.2004] RZN21# ＊ＵＶＣＴＴ，厚さ＝３．１，ダークグレー |
68123-35070 |
US $84.45 |
||
|
68124C
|
68124C
68124-35070 Glass, Rear Door Quarter Window, Lh[11.2002 - 08.2004] RZN21# ＊ＵＶＣＴＴ，厚さ＝３．１，ダークグレー |
68124-35070 |
US $84.45 |
||
|
68142B
|
68142B
68142-35040 Run, Rear Door Window, Rh[11.2002 - 08.2004] RZN21# |
68142-35040 |
US $38.50 |
||
|
68152B
|
68152B
68152-35040 Run, Rear Door Window, Lh[11.2002 - 08.2004] RZN21# |
68152-35040 |
US $31.89 |
||
|
68163
|
68163
68163-35030 Weatherstrip, Rear Door Glass, Outer[11.2002 - 08.2004] RZN21# 右側 |
68163-35030 |
from US $32.94 |
||
|
68163
|
68163
68164-35030 Weatherstrip, Rear Door Glass, Outer[11.2002 - 08.2004] RZN21# 左側 |
68164-35030 |
from US $37.30 |
||
|
68188
|
68188
68188-35020
Weatherstrip, Rear Door Quarter Window, Rh
[11.2002 - 08.2004] RZN21# |
68188-35020 |
— | ||
|
68189
|
68189
68189-35020 Weatherstrip, Rear Door Quarter Window, Lh[11.2002 - 08.2004] RZN21# |
68189-35020 |
US $22.42 |
||
|
68630D
|
68630D
68630-35040 Check Assy, Rear Door, Rh[11.2002 - 08.2004] RZN21# |
68630-35040 |
US $58.53 |
||
|
68640A
|
68640A
68640-35020 Check Assy, Rear Door, Lh[11.2002 - 08.2004] RZN21# |
68640-35020 |
US $58.53 |
||
|
75923C
|
75923C
75923-35010 Tape, Black Out, No.2 Rh[11.2002 - 08.2004] RZN21# |
75923-35010 |
US $46.96 |
||
|
75924C
|
75924C
75924-35010 Tape, Black Out, No.2 Lh[11.2002 - 08.2004] RZN21# |
75924-35010 |
US $46.96 |
||
|
75977H
|
75977H
75977-35140 Stripe, Rear Door Outside, Lower Rh[11.2002 - 08.2004] RZN21# |
75977-35140 |
US $24.46 |
||
| replacement | |||||
|
75977H
|
75977H
75977-35141 Stripe, Rear Door Outside, Lower Rh[11.2002 - 08.2004] RZN21# |
75977-35141 |
US $20.38 |
||
|
75978H
|
75978H
75978-35140 Stripe, Rear Door Outside, Lower Lh[11.2002 - 08.2004] RZN21# |
75978-35140 |
US $24.46 |
||
| replacement | |||||
|
75978H
|
75978H
75978-35141 Stripe, Rear Door Outside, Lower Lh[11.2002 - 08.2004] RZN21# |
75978-35141 |
US $20.38 |
||
|
75987F
|
75987F
75987-35320 Stripe, Rear Door, Outside, Rh[11.2002 - 08.2004] RZN21# |
75987-35320 |
US $34.36 |
||
| replacement | |||||
|
75987F
|
75987F
75987-35321 Stripe, Rear Door, Outside, Rh[11.2002 - 08.2004] RZN21# |
75987-35321 |
US $28.39 |
||
|
75988E
|
75988E
75988-35340 Stripe, Rear Door, Outside Lh[11.2002 - 08.2004] RZN21# |
75988-35340 |
US $34.36 |
||
| replacement | |||||
|
75988E
|
75988E
75988-35341 Stripe, Rear Door, Outside Lh[11.2002 - 08.2004] RZN21# |
75988-35341 |
US $28.39 |
||
|
91635B0614
|
91635B0614
91635-B0614 New Genuine Part |
91635-B0614 |
US $0.69 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.78 |
||
|
9015150016
|
9015150016
90151-50016 New Genuine Part |
90151-50016 |
US $1.43 |
||
|
9016640003
|
9016640003
90166-40003 Screw Hex Lobular |
90166-40003 |
US $1.97 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9054109131
|
9054109131
90541-09131 Cushion, Front Door Panel |
90541-09131 |
from US $1.79 |
||
