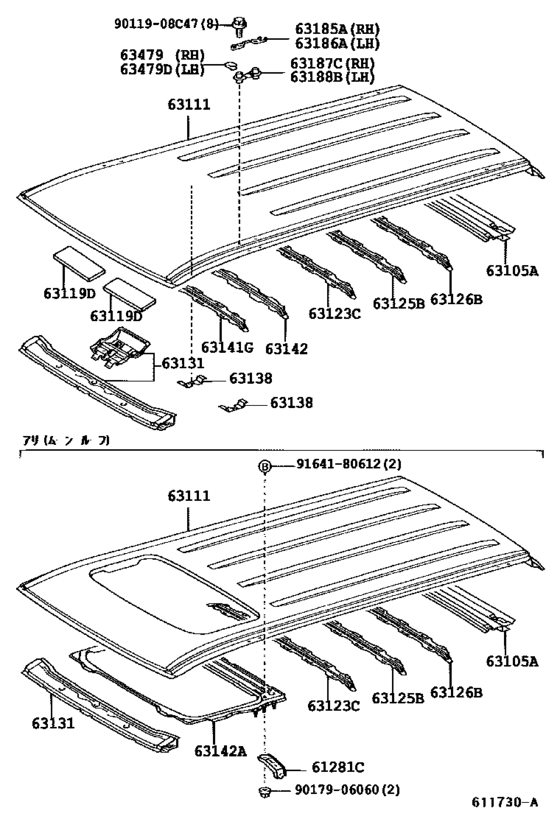

Roof Panel & Back Panel ([11.2002 - ] ﾙ-ﾌ ﾊﾟﾈﾙ (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61281C
|
61281C
61281-60030 Bracket, Sliding Roof Housing Side Mounting, No.1[11.2002 - 08.2004] RZN21# ムーンルーフ有り |
61281-60030 |
US $6.55 |
||
|
63105A
|
63105A
63019-35010 Frame Sub-Assy, Back Door Opening[11.2002 - 05.2003] KDN215,RZN21#,VZN21# |
63019-35010 |
US $158.70 |
||
| replacement | |||||
|
63105A
|
63105A
63019-35012 Frame Sub-Assy, Back Door Opening[11.2002 - 05.2003] KDN215,RZN21#,VZN21# |
63019-35012 |
US $128.13 |
||
|
63105A
|
63105A
63019-35011 Frame Sub-Assy, Back Door Opening[05.2003 - 08.2004] RZN21# |
63019-35011 |
US $157.25 |
||
| replacement | |||||
|
63105A
|
63105A
63019-35012 Frame Sub-Assy, Back Door Opening[05.2003 - 08.2004] RZN21# |
63019-35012 |
US $128.13 |
||
|
63111
|
63111
63111-35250 Panel, Roof[11.2002 - 08.2004] RZN21# |
63111-35250 |
US $1,000.27 |
||
|
63111
|
63111
63111-35270 Panel, Roof[11.2002 - 08.2004] RZN21# ムーンルーフ有り |
63111-35270 |
US $1,000.27 |
||
|
63119D
|
63119D
63119-35010 Pad, Roof Panel, No.1[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
63119-35010 |
US $23.76 |
||
|
63123C
|
63123C
63123-35010 Reinforcement, Roof Panel[11.2002 - 08.2004] RZN21# |
63123-35010 |
US $38.88 |
||
|
63125B
|
63125B
63125-35020 Reinforcement, Roof Panel, Front[11.2002 - 08.2004] RZN21# |
63125-35020 |
US $38.88 |
||
|
63126B
|
63126B
63126-35050 Reinforcement, Roof Panel, Rear No.2[11.2002 - 08.2004] RZN21# |
63126-35050 |
US $38.88 |
||
|
63131
|
63131
63102-35020 Panel, Windshield Header, Outer[11.2002 - 08.2004] RZN21# |
63102-35020 |
US $222.77 |
||
| replacement | |||||
|
63131
|
63131
63102-35021 Panel, Windshield Header, Outer[11.2002 - 08.2004] RZN21# |
63102-35021 |
US $183.46 |
||
|
63131
|
63131
63102-35040 Panel, Windshield Header, Outer[11.2002 - 08.2004] RZN21# ムーンルーフ有り |
63102-35040 |
US $138.32 |
||
|
63138
|
63138
63138-12011 Bracket, Dome Lamp, No.2[11.2002 - 08.2004] RZN21# |
63138-12011 |
US $5.24 |
||
|
63141G
|
63141G
63141-35040 Reinforcement, Roof Panel, No.1[11.2002 - 08.2004] RZN21# |
63141-35040 |
US $38.88 |
||
|
63142
|
63142
63143-35020 Reinforcement, Roof Panel, No.2[11.2002 - 08.2004] RZN21# |
63143-35020 |
US $51.25 |
||
| replacement | |||||
|
63142
|
63142
63143-35022 Reinforcement, Roof Panel, No.2[11.2002 - 08.2004] RZN21# |
63143-35022 |
US $42.66 |
||
|
63142A
|
63142A
63142-60901 Reinforcement, Roof Panel, No.2[11.2002 - 08.2004] RZN21# ムーンルーフ有り |
63142-60901 |
US $135.41 |
||
|
63185A
|
63185A
63185-42020 Bracket, Roof Rack, Front Rh[11.2002 - 08.2004] RZN21# |
63185-42020 |
from US $2.42 |
||
|
63186A
|
63186A
63185-42020 Bracket, Roof Rack, Front Rh[11.2002 - 08.2004] RZN21# |
63185-42020 |
from US $2.42 |
||
|
63187C
|
63187C
63187-35020 Bracket, Roof Rack, Rear[11.2002 - 08.2004] RZN21# |
63187-35020 |
from US $3.32 |
||
|
63188B
|
63188B
63187-35020 Bracket, Roof Rack, Rear[11.2002 - 08.2004] RZN21# |
63187-35020 |
from US $3.32 |
||
|
63479
|
63479
63479-42010 Retainer, Roof Inner Rack[11.2002 - 08.2004] RZN21# |
63479-42010 |
US $1.97 |
||
|
63479D
|
63479D
63479-42010 Retainer, Roof Inner Rack[11.2002 - 08.2004] RZN21# |
63479-42010 |
US $1.97 |
||
|
9011908C47
|
9011908C47
90119-08C47 BOLT WWASHER |
90119-08C47 |
from US $0.66 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.33 |
||
|
9164180612
|
9164180612
91641-80612 New Genuine Part |
91641-80612 |
US $1.97 |
||
