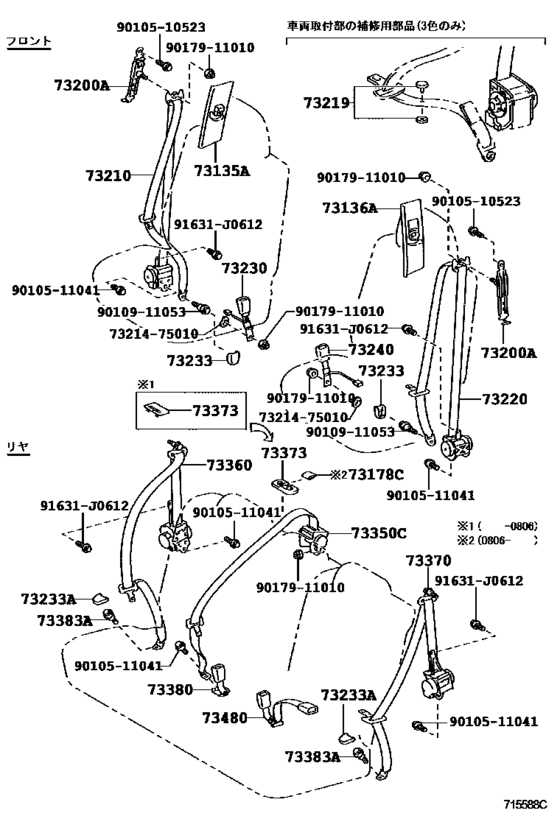

Seat Belt ([11.2002 - ] (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135A
|
73135A
73023-35010-B0 Cover, Shoulder Belt Anchor, Rh[11.2002 - 08.2004] RZN21# STONE,TRIM1# |
73023-35010-B0 |
US $24.17 |
||
|
73135A
|
73135A
73023-35010-E0 Cover, Shoulder Belt Anchor, Rh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73023-35010-E0 |
US $24.17 |
||
| replacement | |||||
|
73135A
|
73135A
73023-35010-B0 Cover, Shoulder Belt Anchor, Rh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73023-35010-B0 |
US $24.17 |
||
|
73136A
|
73136A
73024-35010-B0 Cover, Shoulder Belt Anchor, Lh[11.2002 - 08.2004] RZN21# STONE,TRIM1# |
73024-35010-B0 |
US $24.17 |
||
|
73136A
|
73136A
73024-35010-E0 Cover, Shoulder Belt Anchor, Lh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73024-35010-E0 |
US $24.17 |
||
| replacement | |||||
|
73136A
|
73136A
73024-35010-B0 Cover, Shoulder Belt Anchor, Lh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73024-35010-B0 |
US $24.17 |
||
|
73200A
|
73200A
73200-30080 Adjuster Assy, Front Shoulder Belt Anchor[11.2002 - 12.2002] KDN215,RZN21#,VZN21# |
73200-30080 |
US $53.73 |
||
|
73200A
|
73200A
73200-60030 Adjuster Assy, Front Shoulder Belt Anchor[01.2003 - 08.2004] RZN21# |
73200-60030 |
US $59.40 |
||
|
73210
|
73210
73210-35890-B0 Belt Assy, Front Seat Outer, Rh[11.2002 - 08.2004] RZN21#;VZN215..SSRX GRAY,TRIM1# |
73210-35890-B0 |
US $442.62 |
||
|
73210
|
73210
73210-35890-E0 Belt Assy, Front Seat Outer, Rh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73210-35890-E0 |
US $442.62 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[11.2002 - 08.2004] RZN21# ブラック |
73219-33010 |
from US $0.92 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[11.2002 - 08.2004] RZN21# グレー |
73219-33020 |
from US $0.94 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[11.2002 - 08.2004] RZN21# ベージュ |
73219-33030 |
from US $0.92 |
||
|
73220
|
73220
73220-35750-B0 Belt Assy, Front Seat Outer, Lh[11.2002 - 08.2004] RZN21#;VZN215..SSRX GRAY,TRIM1# |
73220-35750-B0 |
US $442.62 |
||
|
73220
|
73220
73220-35750-E0 Belt Assy, Front Seat Outer, Lh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73220-35750-E0 |
US $442.62 |
||
|
73230
|
73230
73230-35830-B0 Belt Assy, Front Seat Inner, Rh[11.2002 - 08.2005] TRN215,VZN215..SSRG;KDN215,RZN21#,TRN210,VZN210 STONE,TRIM1# |
73230-35830-B0 |
US $63.77 |
||
|
73230
|
73230
73230-35830-E0 Belt Assy, Front Seat Inner, Rh[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
73230-35830-E0 |
US $63.77 |
||
|
73233
|
73233
73233-60010-B0 Cover, Lap Belt Outer Anchor[11.2002 - 08.2004] RZN21# STONE,TRIM1# |
73233-60010-B0 |
US $5.59 |
||
|
73233
|
73233
73233-60010-E0 Cover, Lap Belt Outer Anchor[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73233-60010-E0 |
US $4.80 |
||
|
73233A
|
73233A
73233-60010-B0 Cover, Lap Belt Outer Anchor[11.2002 - 08.2004] RZN21# STONE,TRIM1# |
73233-60010-B0 |
US $5.59 |
||
|
73233A
|
73233A
73233-60010-E0 Cover, Lap Belt Outer Anchor[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73233-60010-E0 |
US $4.80 |
||
|
73240
|
73240
73230-35840-B0 Belt Assy, Front Seat Inner, Lh[11.2002 - 08.2005] TRN215,VZN215..SSRG;KDN215,RZN21#,TRN210,VZN210 STONE,TRIM1# |
73230-35840-B0 |
US $71.84 |
||
|
73240
|
73240
73230-35840-E0 Belt Assy, Front Seat Inner, Lh[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
73230-35840-E0 |
US $63.77 |
||
|
73350C
|
73350C
73350-35150-B0 Belt Assy, Rear Seat, Outer Center[11.2002 - 08.2004] RZN21# GRAY,TRIM1# |
73350-35150-B0 |
US $320.32 |
||
| replacement | |||||
|
73350C
|
73350C
73350-35151-B0 Belt Assy, Rear Seat, Outer Center[11.2002 - 08.2004] RZN21# GRAY,TRIM1# |
73350-35151-B0 |
US $266.45 |
||
|
73350C
|
73350C
73350-35150-E0 Belt Assy, Rear Seat, Outer Center[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73350-35150-E0 |
US $320.32 |
||
| replacement | |||||
|
73350C
|
73350C
73350-35151-E0 Belt Assy, Rear Seat, Outer Center[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73350-35151-E0 |
US $266.45 |
||
|
73360
|
73360
73360-35310-B0 Belt Assy, Rear Seat 3 Point Type, Outer Rh[11.2002 - 08.2004] RZN21# GRAY,TRIM1# |
73360-35310-B0 |
US $266.45 |
||
|
73360
|
73360
73360-35310-E0 Belt Assy, Rear Seat 3 Point Type, Outer Rh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73360-35310-E0 |
US $266.45 |
||
|
73370
|
73370
73370-35240-B0 Belt Assy, Rear Seat 3 Point Type, Outer Lh[11.2002 - 08.2004] RZN21# GRAY,TRIM1# |
73370-35240-B0 |
US $266.45 |
||
|
73370
|
73370
73370-35240-E0 Belt Assy, Rear Seat 3 Point Type, Outer Lh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73370-35240-E0 |
US $266.45 |
||
|
73373
|
73373
73373-33020-B6
Cover, Rear Seat Shoulder Belt
[11.2002 - 08.2004] RZN21# STONE,TRIM1# |
73373-33020-B6 |
— | ||
|
73373
|
73373
73373-33020-E1
Cover, Rear Seat Shoulder Belt
[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73373-33020-E1 |
— | ||
|
73380
|
73380
73380-35160-B0 Belt Assy, Rear Seat 3 Point Type, Inner, Rh[11.2002 - 08.2004] RZN21# STONE,TRIM1# |
73380-35160-B0 |
US $51.40 |
||
|
73380
|
73380
73380-35160-E0 Belt Assy, Rear Seat 3 Point Type, Inner, Rh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73380-35160-E0 |
US $51.40 |
||
|
73383A
|
73383A
73383-60010 Hook, Rr Seat Belt[11.2002 - 08.2004] RZN21# |
73383-60010 |
US $2.80 |
||
|
73480
|
73480
73480-35010-B0 Belt Assy, Rear Seat Inner W/center, Lh[11.2002 - 08.2004] RZN21# GRAY,TRIM1# |
73480-35010-B0 |
US $92.60 |
||
|
73480
|
73480
73480-35010-E0 Belt Assy, Rear Seat Inner W/center, Lh[11.2002 - 08.2004] RZN21# FAWN,TRIM4# |
73480-35010-E0 |
US $78.62 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
7321475010
|
7321475010
73214-75010 Plate, Front Seat Belt Anchor |
73214-75010 |
US $3.05 |
||
|
9010510523
|
9010510523
90105-10523 BOLT FLANGE |
90105-10523 |
US $1.79 |
||
|
9010511041
|
9010511041
90105-11041 New Genuine Part |
90105-11041 |
US $1.79 |
||
|
9010911053
|
9010911053
90109-11053 New Genuine Part |
90109-11053 |
US $4.02 |
||
|
9017911010
|
9017911010
90179-11010 NUT |
90179-11010 |
US $1.97 |
||
