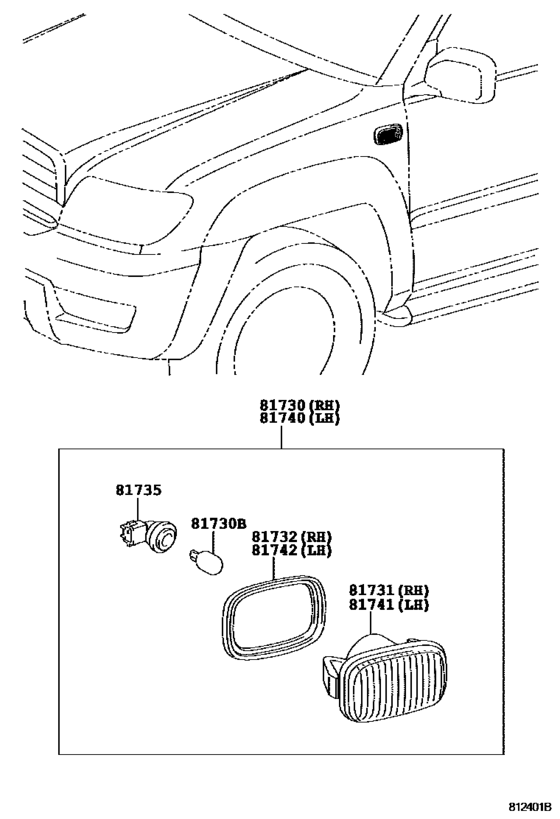

Side Turn Signal Lamp & Outer Mirror Lamp ([11.2002 - ] (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81730
|
81730
81730-20220
Lamp Assy, Side Turn Signal
[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81730-20220 |
— | ||
| replacement | |||||
|
81730
|
81730
81730-20221
Lamp Assy, Side Turn Signal (Clear)
[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81730-20221 |
— | ||
|
81730B
|
81730B
90981-15012 Bulb (For Side Turn Signal Lamp)[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# １２Ｖ ５Ｗ |
90981-15012 |
from US $4.66 |
||
|
81731
|
81731
81731-20220 Lens, Side Turn Signal Lamp[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81731-20220 |
US $18.61 |
||
| replacement | |||||
|
81731
|
81731
81731-20221 Lens, Side Turn Signal Lamp[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81731-20221 |
from US $26.54 |
||
|
81732
|
81732
81732-20220 Gasket, Side Turn Signal Lamp Lens, Rh[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81732-20220 |
US $5.38 |
||
|
81735
|
81735
90075-99012 Socket And Wire, License Plate Lamp[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
90075-99012 |
from US $5.73 |
||
|
81740
|
81740
81730-20220
Lamp Assy, Side Turn Signal
[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81730-20220 |
— | ||
| replacement | |||||
|
81740
|
81740
81730-20221
Lamp Assy, Side Turn Signal (Clear)
[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81730-20221 |
— | ||
|
81741
|
81741
81731-20220 Lens, Side Turn Signal Lamp[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81731-20220 |
US $18.61 |
||
| replacement | |||||
|
81741
|
81741
81731-20221 Lens, Side Turn Signal Lamp[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81731-20221 |
from US $26.54 |
||
|
81742
|
81742
81732-20220 Gasket, Side Turn Signal Lamp Lens, Rh[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
81732-20220 |
US $5.38 |
||
