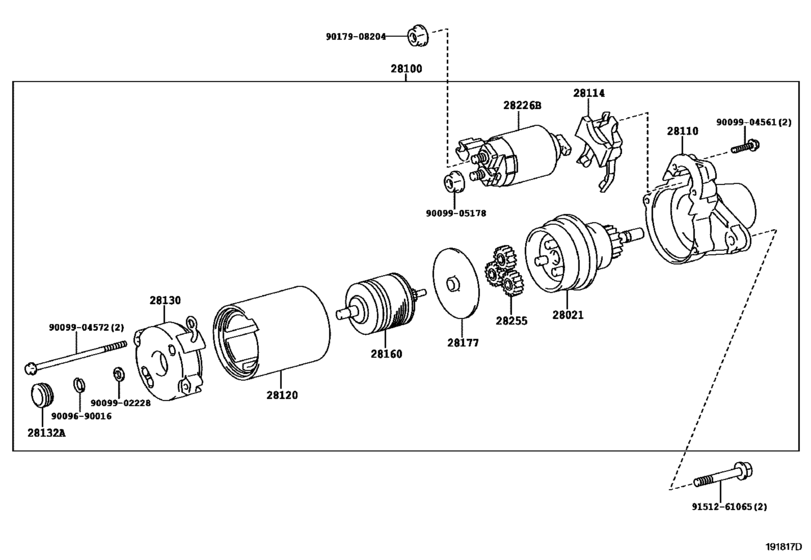

Starter ([11.2002 - 08.2004] 12V 1.6KW (0211-0408)3RZFE ; (0408-0908)2TRFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-73020 Clutch Sub-Assy, Starter Center Bearing[11.2002 - 08.2004] 3RZFE..RZN21# |
28021-73020 |
from US $64.02 |
||
|
28100
|
28100
28100-75190
Starter Assy
[11.2002 - 08.2004] 3RZFE..RZN21# １２Ｖ １．６ＫＷ |
28100-75190 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-75191 Starter Assy[11.2002 - 08.2004] 3RZFE..RZN21# １２Ｖ １．６ＫＷ |
28100-75191 |
from US $592.94 |
||
|
28110
|
28110
28110-75190 Housing Assy, Starter Drive[11.2002 - 08.2004] 3RZFE..RZN21# |
28110-75190 |
US $46.88 |
||
|
28114
|
28114
28114-21060 Pin, Starter Drive Lever Set[11.2002 - 08.2004] 3RZFE..RZN21# |
28114-21060 |
from US $0.92 |
||
|
28120
|
28120
28120-28040
Yoke Assy, Starter
[11.2002 - 08.2004] 3RZFE..RZN21# |
28120-28040 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[11.2002 - 08.2004] 3RZFE..RZN21# |
28120-28060 |
— | ||
|
28130
|
28130
28130-75190 Frame Assy, Starter Commutator End[11.2002 - 08.2004] 3RZFE..RZN21# |
28130-75190 |
from US $33.01 |
||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[11.2002 - 08.2004] 3RZFE..RZN21# |
28132-28040 |
from US $1.75 |
||
|
28160
|
28160
28160-21060 Armature Assy, Starter[11.2002 - 08.2005] 3RZFE,2TRFE..RZN21#,TRN21# |
28160-21060 |
from US $97.60 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[11.2002 - 08.2004] 3RZFE..RZN21# |
28177-28040 |
US $4.19 |
||
|
28226B
|
28226B
28226-28051 Starter Kit, Repair Service[11.2002 - 08.2005] 3RZFE,2TRFE..RZN21#,TRN21# |
28226-28051 |
from US $65.40 |
||
|
28255
|
28255
28255-28040 Gear, Planet[11.2002 - 08.2004] 3RZFE..RZN21# |
28255-28040 |
from US $3.32 |
||
|
9009690016
|
9009690016
90096-90016
Ring, Snap(For Venturi Throttle Valve Shaft)
|
90096-90016 |
— | ||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9151261065
|
9151261065
91512-61065 Bolt(For Transaxle & Engine Setting) |
91512-61065 |
US $2.62 |
||
