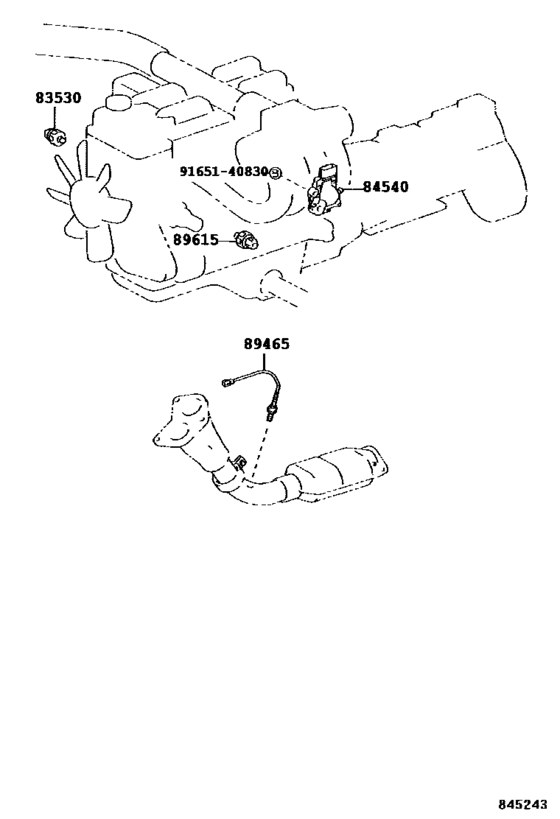

Switch & Relay & Computer ([11.2002 - 08.2004] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (0211-0408)RZN21#) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[11.2002 - 08.2004] RZN21# |
83530-28020 |
from US $24.41 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2002 - 08.2004] RZN21# |
83530-60020 |
from US $24.16 |
||
|
84540
|
84540
84540-51010 Switch Assy, Neutral Start[11.2002 - 08.2005] RZN21#,VZN21# |
84540-51010 |
from US $139.48 |
||
|
89465
|
89465
89465-60200 Sensor, Oxygen[11.2002 - 08.2004] RZN21# |
89465-60200 |
from US $179.20 |
||
|
89615
|
89615
89615-26010 Sensor, Knock Control[11.2002 - 08.2004] RZN21# |
89615-26010 |
US $310.86 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
