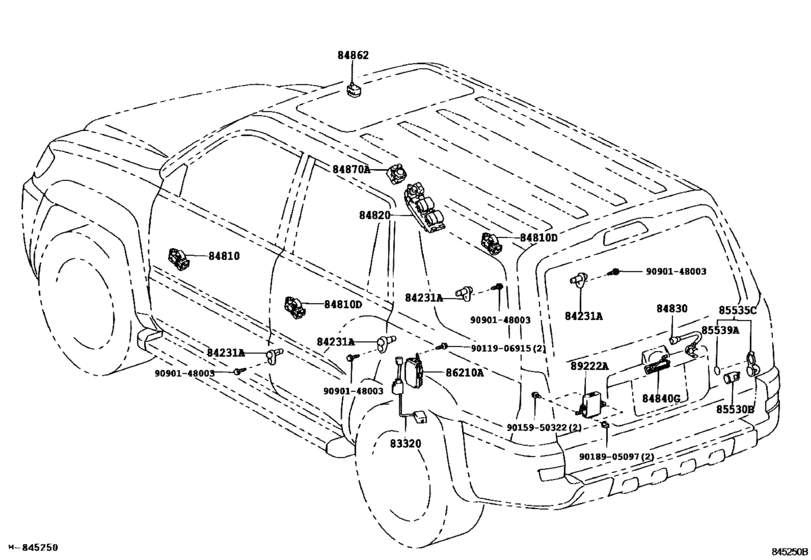

Switch & Relay & Computer ([11.2002 - ] ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-60440 Gage Assy, Fuel Sender[11.2002 - 08.2004] RZN21# |
83320-60440 |
from US $76.28 |
||
|
84231A
|
84231A
84231-60070 Switch, Courtesy Lamp[11.2002 - 08.2004] RZN21# |
84231-60070 |
from US $11.83 |
||
|
84810
|
84810
84030-35010 Switch Assy, Power Window Regulator[11.2002 - 08.2004] RZN21# |
84030-35010 |
US $80.72 |
||
|
84810D
|
84810D
84030-35010 Switch Assy, Power Window Regulator[11.2002 - 08.2004] RZN21# |
84030-35010 |
US $80.72 |
||
|
84820
|
84820
84040-35030 Master Switch Assy, Power Window Regulator[11.2002 - 08.2004] RZN21# |
84040-35030 |
US $449.90 |
||
|
84830
|
84830
84830-35050 Switch Assy, Tail Gate Control[11.2002 - 08.2004] RZN21# |
84830-35050 |
from US $46.30 |
||
|
84840G
|
84840G
84840-35010 Switch Assy, Back Door Opener[11.2002 - 08.2004] RZN21# |
84840-35010 |
from US $42.69 |
||
|
84862
|
84862
84862-AA030-B1
Switch, Slide Roof Motor
[11.2002 - 08.2004] RZN21# ムーンルーフ有り,STONE,TRIM1# |
84862-AA030-B1 |
— | ||
|
84862
|
84862
84862-AA030-E0
Switch, Slide Roof Motor
[11.2002 - 08.2004] RZN21# ムーンルーフ有り,FAWN,TRIM4# |
84862-AA030-E0 |
— | ||
|
84870A
|
84870A
84872-52040 Switch Assy, Outer Mirror[11.2002 - 08.2004] RZN21# |
84872-52040 |
US $113.16 |
||
|
85530B
|
85530B
85530-33020 Socket Assy, Power Outlet, No.1[11.2002 - 08.2004] RZN21# |
85530-33020 |
from US $15.29 |
||
| replacement | |||||
|
85530B
|
85530B
85530-06010 Socket Assy, Power Outlet, No.1[11.2002 - 08.2004] RZN21# |
85530-06010 |
from US $26.06 |
||
|
85535C
|
85535C
85535-35070-C0 Cover, Power Outlet Socket, Rear[11.2002 - 08.2004] RZN21# BLACK,TRIM1#,4# |
85535-35070-C0 |
US $4.82 |
||
|
85539A
|
85539A
85539-60010 Label, Power Outlet Notice[11.2002 - 08.2004] RZN21# |
85539-60010 |
US $1.14 |
||
|
86210A
|
86210A
86210-35030 Inverter Assy, Voltage[11.2002 - 08.2004] RZN215..SSRG; RZN21#..SSRX アクセサリーコネクター−ＤＣ１２Ｖ＝フロント，リヤ ＡＣ１００Ｖ＝フロント |
86210-35030 |
US $318.86 |
||
|
89222A
|
89222A
89222-35010 Computer, Multiplex Network Door[11.2002 - 08.2004] RZN21# |
89222-35010 |
from US $237.28 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
|
9018905097
|
9018905097
90189-05097 GROMMET SCREW |
90189-05097 |
US $1.43 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
