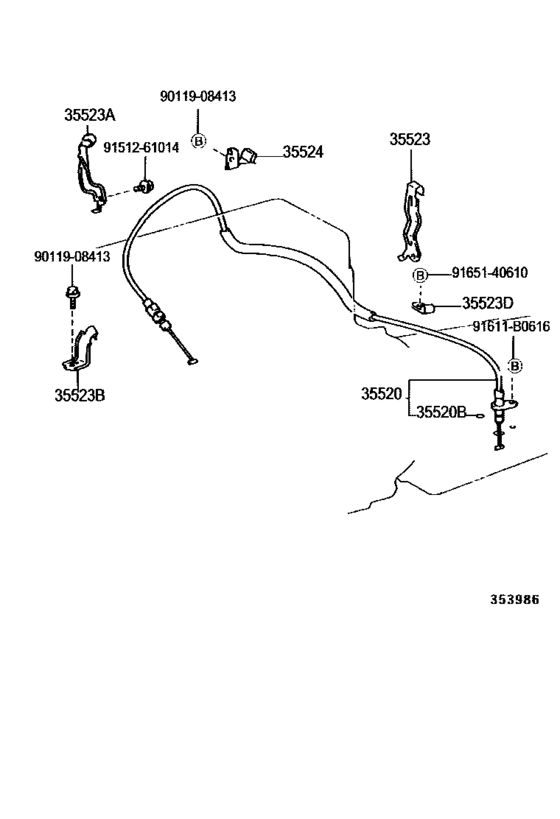

Throttle Link & Valve Lever (Atm) ([11.2002 - ] A343E,A343F (0211- )RZN21#) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- RZN210
- grade
- SSRX
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.2002
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-35250 Cable Assy, Throttle[11.2002 - 08.2004] RZN21# |
35520-35250 |
from US $69.38 |
||
|
35520B
|
35520B
90301-09012 Ring, O (For Automatic Transmission Case Plug)[11.2002 - 08.2004] RZN21# |
90301-09012 |
US $3.94 |
||
|
35523
|
35523
35523-35180 Clamp, Throttle Cable[11.2002 - 08.2004] RZN21# |
35523-35180 |
US $9.46 |
||
|
35523A
|
35523A
35523-35230 Clamp, Throttle Cable, No.1[11.2002 - 08.2004] RZN21# |
35523-35230 |
US $6.84 |
||
|
35523B
|
35523B
35523-35190 Clamp, Throttle Cable, No.3[11.2002 - 08.2004] RZN21# |
35523-35190 |
US $6.84 |
||
|
35523D
|
35523D
90461-08689 Clamp, Throttle Cable, No.4[11.2002 - 08.2004] RZN21# |
90461-08689 |
from US $3.55 |
||
|
35524
|
35524
35524-35030
Clamp, Throttle Cable, No.1
[11.2002 - 08.2004] RZN21# |
35524-35030 |
— | ||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9011908413
|
9011908413
90119-08413 New Genuine Part |
90119-08413 |
US $0.70 |
||
|
9151261014
|
9151261014
91512-61014 BOLT FLANGE |
91512-61014 |
US $1.31 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
