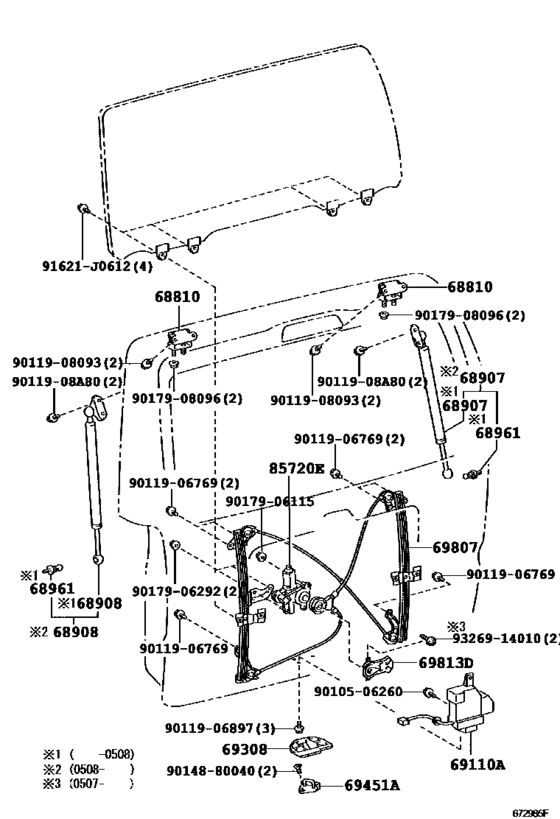

Back Door Lock & Hinge ([11.2002 - ] (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- TRN210
- grade
- SSRX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68810
|
68810
68810-21050
Hinge Assy, Back Door, Upper
[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
68810-21050 |
— | ||
| replacement | |||||
|
68810
|
68810
68810-21051 Hinge Assy, Back Door, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
68810-21051 |
from US $23.02 |
||
|
68907
|
68907
68907-35051 Stay Sub-Assy, Back Door Damper, Rh[01.2004 - 08.2005] KDN215,RZN21#,TRN21#,VZN21#..SSRX |
68907-35051 |
US $142.69 |
||
| replacement | |||||
|
68907
|
68907
68907-39015 Stay Sub-Assy, Back Door Damper, Rh[01.2004 - 08.2005] KDN215,RZN21#,TRN21#,VZN21#..SSRX |
68907-39015 |
US $119.39 |
||
|
68907
|
68907
68907-35060 Stay Sub-Assy, Back Door Damper, Rh[11.2002 - 08.2005] KDN215,RZN215,TRN215,VZN215..SSRG; KDN215,RZN21#,TRN21#,VZN21#..SSRX 寒冷地仕様 |
68907-35060 |
US $139.78 |
||
|
68907
|
68907
68907-39015 Stay Sub-Assy, Back Door Damper, Rh[08.2005 -] GRN215,TRN21#..SSRX |
68907-39015 |
US $119.39 |
||
|
68907
|
68907
68907-39025 Stay Sub-Assy, Back Door Damper, Rh[08.2005 -] GRN215,TRN215..SSRG; GRN215,TRN21#..SSRX 寒冷地仕様 |
68907-39025 |
US $171.20 |
||
|
68908
|
68908
68908-35051 Stay Sub-Assy, Back Door Damper, Lh[01.2004 - 08.2005] KDN215,RZN21#,TRN21#,VZN21#..SSRX |
68908-35051 |
US $144.14 |
||
| replacement | |||||
|
68908
|
68908
68908-39015 Stay Sub-Assy, Back Door Damper, Lh[01.2004 - 08.2005] KDN215,RZN21#,TRN21#,VZN21#..SSRX |
68908-39015 |
US $119.39 |
||
|
68908
|
68908
68908-35060 Stay Sub-Assy, Back Door Damper, Lh[11.2002 - 08.2005] KDN215,RZN215,TRN215,VZN215..SSRG; KDN215,RZN21#,TRN21#,VZN21#..SSRX 寒冷地仕様 |
68908-35060 |
US $139.78 |
||
|
68908
|
68908
68908-39015 Stay Sub-Assy, Back Door Damper, Lh[08.2005 -] GRN215,TRN21#..SSRX |
68908-39015 |
US $119.39 |
||
|
68908
|
68908
68908-39025 Stay Sub-Assy, Back Door Damper, Lh[08.2005 -] GRN215,TRN215..SSRG; GRN215,TRN21#..SSRX 寒冷地仕様 |
68908-39025 |
US $171.20 |
||
|
68961
|
68961
68961-35050 Bolt, Back Door Stay[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
68961-35050 |
US $6.27 |
||
|
69110A
|
69110A
69110-35062
Lock Assy, Back Door W/motor
[04.2004 - 08.2005] KDN215,TRN21#,VZN21# |
69110-35062 |
— | ||
| replacement | |||||
|
69110A
|
69110A
69110-35090 Lock Assy, Back Door W/motor[04.2004 - 08.2005] KDN215,TRN21#,VZN21# |
69110-35090 |
from US $235.20 |
||
|
69308
|
69308
69308-35010 Protector Sub-Assy, Back Door Lock[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
69308-35010 |
US $29.35 |
||
|
69451A
|
69451A
69410-35030 Plate, Door Lock Striker[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
69410-35030 |
US $13.80 |
||
|
69807
|
69807
69807-35020 Regulator Sub-Assy, Back Door Power Window[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
69807-35020 |
from US $135.47 |
||
|
69813D
|
69813D
69813-33010 Plate, Front Door Power Window Regulator Base[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
69813-33010 |
US $6.41 |
||
|
85720E
|
85720E
85720-35150 Motor Assy, Power Window Regulator, Lh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
85720-35150 |
US $435.05 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9011908A80
|
9011908A80
90119-08A80 Bolt |
90119-08A80 |
US $1.43 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.66 |
||
|
9011906769
|
9011906769
90119-06769 New Genuine Part |
90119-06769 |
US $0.44 |
||
|
9011906897
|
9011906897
90119-06897 BOLT WWASHER |
90119-06897 |
from US $0.70 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.23 |
||
|
9014880040
|
9014880040
90148-80040 Screw Hex Lobular |
90148-80040 |
from US $0.66 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.79 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.40 |
||
|
9326914010
|
9326914010
93269-14010 New Genuine Part |
93269-14010 |
US $1.60 |
||
