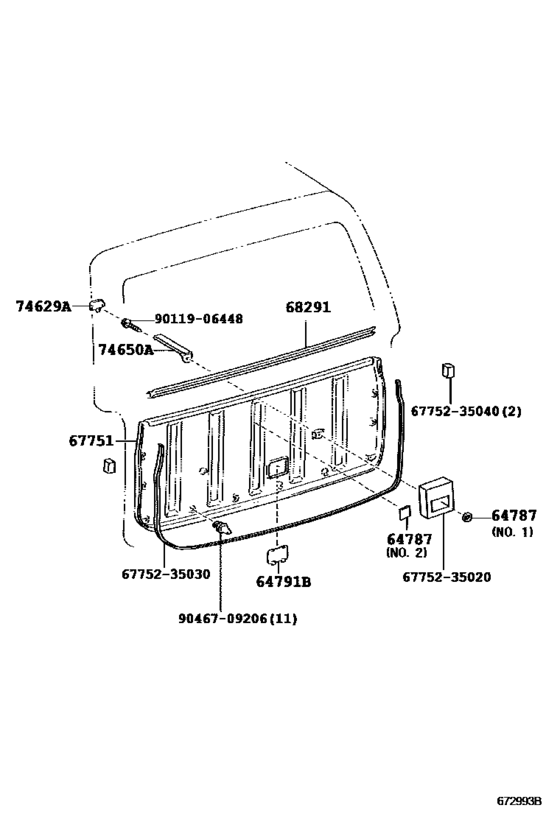

Back Door Panel & Glass ([11.2002 - ] (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- TRN210
- grade
- SSRX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64787
|
64787
64787-35020 Pad, Back Door Trim[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＮＯ．１ |
64787-35020 |
US $4.37 |
||
|
64787
|
64787
64788-35010 Pad, Back Door Trim[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＮＯ．２ |
64788-35010 |
US $6.12 |
||
|
64791B
|
64791B
64791-35010-B0 Cover, Back Door Trim[11.2002 - 08.2005] TRN215,VZN215..SSRG;KDN215,TRN210,VZN210 STONE,TRIM1# |
64791-35010-B0 |
US $16.25 |
||
|
64791B
|
64791B
64791-35010-E0
Cover, Back Door Trim
[11.2002 - 08.2005] KDN215,TRN21#,VZN21# FAWN,TRIM4# |
64791-35010-E0 |
— | ||
| replacement | |||||
|
64791B
|
64791B
64791-35010-B0 Cover, Back Door Trim[11.2002 - 08.2005] KDN215,TRN21#,VZN21# FAWN,TRIM4# |
64791-35010-B0 |
US $16.25 |
||
|
67751
|
67751
64781-35020-B0 Board, Back Door Trim[11.2002 - 08.2005] TRN215,VZN215..SSRG;KDN215,TRN210,VZN210 STONE,TRIM1# |
64781-35020-B0 |
US $225.39 |
||
|
67751
|
67751
64781-35020-E0 Board, Back Door Trim[11.2002 - 08.2005] KDN215,TRN21#,VZN21# FAWN,TRIM4# |
64781-35020-E0 |
US $192.19 |
||
|
68291
|
68291
68291-35021 Weatherstrip, Back Door Glass[02.2004 - 08.2005] KDN215,TRN21#,VZN21# |
68291-35021 |
US $71.74 |
||
|
74629A
|
74629A
74629-35020-B0 Cover, Assist Strap Hole[11.2002 - 08.2005] TRN215,VZN215..SSRX STONE,TRIM12,13; TRN215,VZN215..SSRG;KDN215,TRN210,VZN210 STONE,TRIM1# |
74629-35020-B0 |
US $6.81 |
||
|
74629A
|
74629A
74629-35020-E0
Cover, Assist Strap Hole
[11.2002 - 08.2005] KDN215,TRN21#,VZN21# FAWN,TRIM4# |
74629-35020-E0 |
— | ||
| replacement | |||||
|
74629A
|
74629A
74629-35020-B0 Cover, Assist Strap Hole[11.2002 - 08.2005] KDN215,TRN21#,VZN21# FAWN,TRIM4# |
74629-35020-B0 |
US $6.81 |
||
|
74650A
|
74650A
74650-35030-B0 Strap Assy, Assist[11.2002 - 08.2005] TRN215,VZN215..SSRX GRAY,TRIM12,13; TRN215,VZN215..SSRG;KDN215,TRN210,VZN210 GRAY,TRIM1# |
74650-35030-B0 |
US $20.97 |
||
|
74650A
|
74650A
74650-35030-E0
Strap Assy, Assist
[11.2002 - 08.2005] KDN215,TRN21#,VZN21# FAWN,TRIM4# |
74650-35030-E0 |
— | ||
|
6775235020
|
6775235020
67752-35020 Trim, Back Door, Upper |
67752-35020 |
US $3.20 |
||
|
6775235030
|
6775235030
67752-35030 Trim, Back Door, Upper |
67752-35030 |
US $1.60 |
||
|
6775235040
|
6775235040
67752-35040 Trim, Back Door, Upper |
67752-35040 |
US $0.87 |
||
|
9011906448
|
9011906448
90119-06448 Screw(For Steering Column Tube) |
90119-06448 |
US $1.16 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.47 |
||
