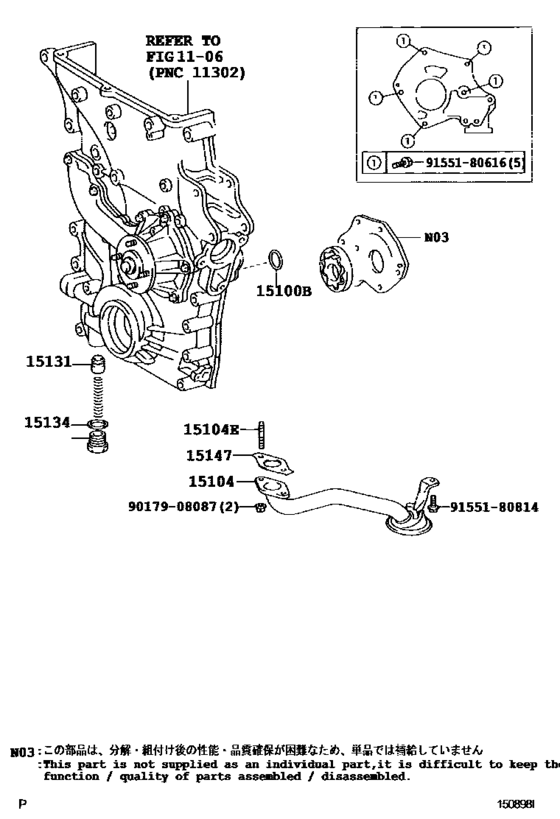

Engine Oil Pump ([08.2004 - ] (0408- )2TRFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- TRN210
- grade
- SSRX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100B
|
15100B
90301-19021 Ring, O(For Oil Pump)[08.2004 - 08.2005] 2TRFE..TRN21# |
90301-19021 |
from US $2.20 |
||
|
15104
|
15104
15104-75120
Strainer Sub-Assy, Oil
[08.2004 - 08.2005] 2TRFE..TRN21# |
15104-75120 |
— | ||
| replacements | |||||
|
15104
|
15104
15104-75200 Strainer Sub-Assy, Oil[08.2004 - 08.2005] 2TRFE..TRN21# |
15104-75200 |
from US $32.70 |
||
|
15104
|
15104
90126-08052 Bolt, Stud(For Oil Pan)[08.2004 - 08.2005] 2TRFE..TRN21# |
90126-08052 |
from US $0.78 |
||
|
15104
|
15104
91551-80825 Bolt(For Cylinder Head Set Sub)[08.2004 - 08.2005] 2TRFE..TRN21# |
91551-80825 |
from US $0.80 |
||
|
15104E
|
15104E
90126-08037 Bolt, Stud(For Oil Strainer)[08.2004 - 08.2005] 2TRFE..TRN21# |
90126-08037 |
from US $3.69 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[08.2004 - 08.2005] 2TRFE..TRN21# |
15131-46040 |
from US $2.94 |
||
|
15134
|
15134
15134-67020 Gasket, Oil Pump Relief Valve[08.2004 - 08.2005] 2TRFE..TRN21# |
15134-67020 |
from US $1.70 |
||
|
15147
|
15147
15147-75030 Gasket, Oil Strainer[08.2004 - 08.2005] 2TRFE..TRN21# |
15147-75030 |
from US $2.61 |
||
|
9017908087
|
9017908087
90179-08087 Nut |
90179-08087 |
US $1.79 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
