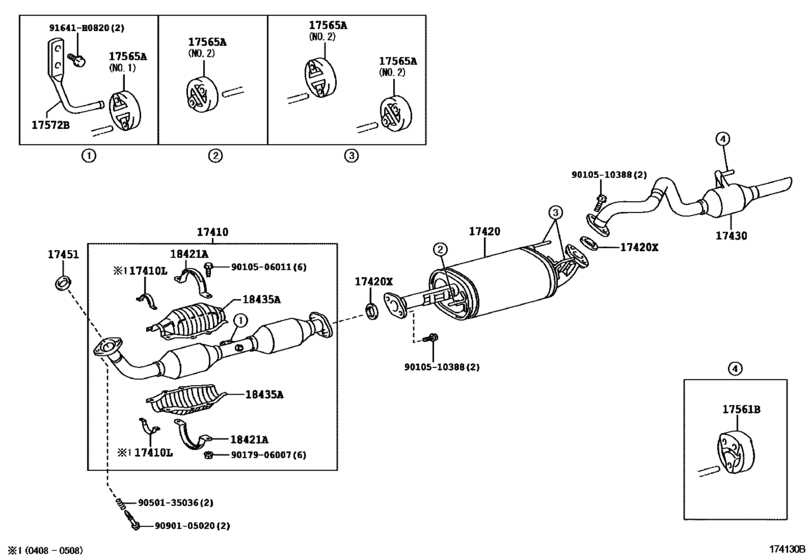

Exhaust Pipe ([08.2004 - ] (0408- )2TRFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- TRN210
- grade
- SSRX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-75520 Pipe Assy, Exhaust, Front[08.2004 - 08.2005] 2TRFE..TRN21# |
17410-75520 |
US $2,044.22 |
||
|
17410L
|
17410L
17541-75030 Stay, Exhaust Pipe Protector (For Front)EXHAUST PIPE PROTECTOR (FOR FRONT) [08.2004 - 08.2005] 2TRFE..TRN21# |
17541-75030 |
US $15.05 |
||
|
17420
|
17420
17420-75440 Pipe Assy, Exhaust, Center[08.2004 - 08.2005] 2TRFE..TRN21# |
17420-75440 |
from US $480.54 |
||
|
17420X
|
17420X
90917-06072 Gasket, Exhaust Pipe[08.2004 - 08.2005] 2TRFE..TRN21# |
90917-06072 |
from US $6.27 |
||
|
17430
|
17430
17430-50220 Pipe Assy, Exhaust, Tail[11.2002 - 08.2005] 2TRFE,5VZFE..TRN21#,VZN21# |
17430-50220 |
from US $195.14 |
||
|
17451
|
17451
17451-74040 Gasket, Exhaust Pipe[08.2004 - 08.2005] 2TRFE..TRN21# |
17451-74040 |
from US $18.06 |
||
|
17561B
|
17561B
17561-73020 Bolt Or Ring, Exhaust Tail Pipe (For Front)[11.2002 - 08.2005] 2TRFE,5VZFE..TRN21#,VZN21# |
17561-73020 |
from US $6.65 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[08.2004 - 08.2005] 2TRFE..TRN21# ＮＯ．１ |
17565-22040 |
from US $9.48 |
||
|
17572B
|
17572B
17572-75290 Bracket, Exhaust Pipe Support, No.2[08.2004 - 08.2005] 2TRFE..TRN21# |
17572-75290 |
US $8.88 |
||
|
18421A
|
18421A
18421-75020 Stay, Converter Protector, Lh[08.2004 - 08.2005] 2TRFE..TRN21# |
18421-75020 |
US $18.98 |
||
|
18435A
|
18435A
18435-75070 Protector, Monolithic Converter[08.2004 - 08.2005] 2TRFE..TRN21# |
18435-75070 |
US $90.20 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.82 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.74 |
||
|
9010510388
|
9010510388
90105-10388 BOLT |
90105-10388 |
from US $0.92 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.84 |
||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
from US $3.41 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
