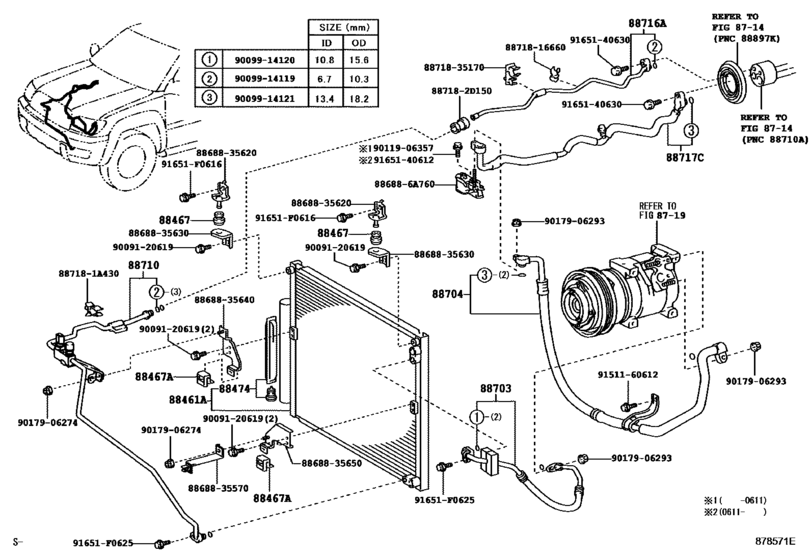

Heating & Air Conditioning - Cooler Piping ([01.2006 - ] (0601- )TRN21#) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- TRN210
- grade
- SSRX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88461A
|
88461A
88461-60091 Core, Cooler Condenser[08.2004 - 08.2005] TRN21# |
88461-60091 |
from US $566.38 |
||
|
88467
|
88467
88467-28050 Cushion, Cooler Condenser, No.1[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
88467-28050 |
US $2.71 |
||
|
88467A
|
88467A
88467-35080 Cushion, Cooler Condenser, No.1[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
88467-35080 |
from US $3.84 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[11.2002 - 08.2005] KDN215,RZN21#,TRN21#,VZN21# |
88474-17010 |
from US $58.54 |
||
|
88703
|
88703
88703-35040 Hose Sub-Assy, Discharge[08.2004 - 08.2005] TRN21# |
88703-35040 |
US $174.72 |
||
|
88704
|
88704
88704-35040 Hose Sub-Assy, Suction[08.2004 - 08.2005] TRN21# |
88704-35040 |
from US $264.99 |
||
|
88704
|
88704
88704-60380 Hose Sub-Assy, Suction[01.2006 -] TRN21# |
88704-60380 |
US $206.75 |
||
|
88710
|
88710
88710-35540 Tube Assy, Air Conditioner[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
88710-35540 |
from US $300.26 |
||
|
88716A
|
88716A
88716-35680 Pipe, Cooler Refrigerant Liquid, A[08.2004 - 08.2005] TRN21# |
88716-35680 |
US $60.13 |
||
|
88717C
|
88717C
88717-35230 Pipe, Cooler Refrigerant Suction, C[08.2004 - 08.2005] TRN21# |
88717-35230 |
US $216.94 |
||
|
88717C
|
88717C
88717-6B040 Pipe, Cooler Refrigerant Suction, C[01.2006 -] GRN215,TRN21# |
88717-6B040 |
US $168.90 |
||
|
91651F0616
|
91651F0616
91651-F0616 BOLT |
91651-F0616 |
US $1.97 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
886886A760
|
886886A760
88688-6A760
Bracket, Cooler Diaphragm
|
88688-6A760 |
— | ||
|
887181A430
|
887181A430
88718-1A430
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-1A430 |
— | ||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
8868835570
|
8868835570
88688-35570 Bracket, Cooler Condenser, No.1 |
88688-35570 |
from US $7.69 |
||
|
8868835620
|
8868835620
88688-35620
Bracket, Cooler Diaphragm
|
88688-35620 |
— | ||
|
8868835630
|
8868835630
88688-35630
Bracket, Cooler Diaphragm
|
88688-35630 |
— | ||
|
8868835640
|
8868835640
88688-35640
Bracket, Cooler Diaphragm
|
88688-35640 |
— | ||
|
8868835650
|
8868835650
88688-35650
Bracket, Cooler Diaphragm
|
88688-35650 |
— | ||
|
8871816660
|
8871816660
88718-16660
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16660 |
— | ||
|
8871835170
|
8871835170
88718-35170
Pipe, Cooler Refrigerant Suction, No.2
|
88718-35170 |
— | ||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.43 |
||
