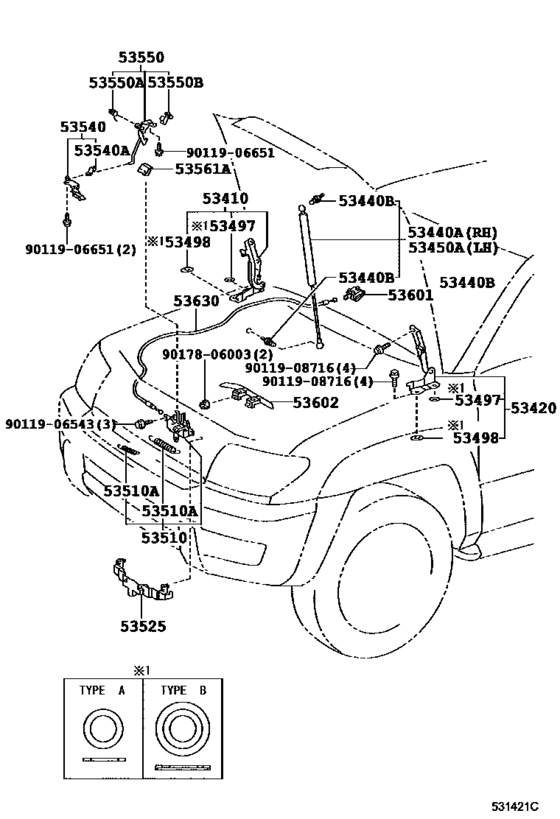

Hood Lock & Hinge ([11.2002 - 08.2005] (0211-0508)) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- TRN210
- grade
- SSRX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-35060 Hinge Assy, Hood, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＴＹＰＥ Ａ：イラスト参照 |
53410-35060 |
from US $26.97 |
||
|
53410
|
53410
53410-48020 Hinge Assy, Hood, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＴＹＰＥ Ｂ：イラスト参照 |
53410-48020 |
from US $28.26 |
||
|
53420
|
53420
53420-35060 Hinge Assy, Hood, Lh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＴＹＰＥ Ａ：イラスト参照 |
53420-35060 |
from US $25.90 |
||
|
53420
|
53420
53420-48020 Hinge Assy, Hood, Lh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＴＹＰＥ Ｂ：イラスト参照 |
53420-48020 |
from US $25.58 |
||
|
53440A
|
53440A
53440-39245 Support Assy, Hood, Rh[08.2005 -] GRN215,TRN21# |
53440-39245 |
US $120.95 |
||
|
53440A
|
53440A
53440-69055
Support Assy, Hood, Rh
[11.2002 - 07.2005] KDN215,RZN21#,TRN21#,VZN21# |
53440-69055 |
— | ||
| replacement | |||||
|
53440A
|
53440A
53440-69065 Support Assy, Hood, Rh[11.2002 - 07.2005] KDN215,RZN21#,TRN21#,VZN21# |
53440-69065 |
from US $117.51 |
||
|
53440A
|
53440A
53440-69065 Support Assy, Hood, Rh[07.2005 - 08.2005] KDN215,TRN21#,VZN21# |
53440-69065 |
from US $117.51 |
||
|
53440B
|
53440B
68961-30020 Bolt, Hood Support, No.1[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
68961-30020 |
from US $7.10 |
||
|
53450A
|
53450A
53450-39225 Support Assy, Hood, Lh[08.2005 -] GRN215,TRN21# |
53450-39225 |
US $100.46 |
||
|
53450A
|
53450A
53450-69055
Support Assy, Hood, Lh
[11.2002 - 07.2005] KDN215,RZN21#,TRN21#,VZN21# |
53450-69055 |
— | ||
| replacement | |||||
|
53450A
|
53450A
53450-69065 Support Assy, Hood, Lh[11.2002 - 07.2005] KDN215,RZN21#,TRN21#,VZN21# |
53450-69065 |
from US $113.41 |
||
|
53450A
|
53450A
53450-69065 Support Assy, Hood, Lh[07.2005 - 08.2005] KDN215,TRN21#,VZN21# |
53450-69065 |
from US $113.41 |
||
|
53497
|
53497
53497-12070 Pad, Hood Hinge, No.1[11.2002 - 08.2005] KDN215,TRN21#,VZN21# 厚さ＝０．５,ＴＹＰＥ Ａ：イラスト参照 |
53497-12070 |
US $1.79 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[08.2005 -] GRN215,TRN21# 厚さ＝０．５ |
53497-42010 |
US $1.79 |
||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[10.2003 - 08.2005] KDN215,TRN21#,VZN21# 厚さ＝１．０,ＴＹＰＥ Ｂ：イラスト参照 |
53497-50020 |
from US $2.24 |
||
|
53498
|
53498
53497-12070 Pad, Hood Hinge, No.1[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＴＹＰＥ Ａ：イラスト参照 |
53497-12070 |
US $1.79 |
||
|
53498
|
53498
53497-42010 Pad, Hood Hinge, No.1[08.2005 -] GRN215,TRN21# |
53497-42010 |
US $1.79 |
||
|
53498
|
53498
53497-50020 Pad, Hood Hinge, No.1[10.2003 - 08.2005] KDN215,TRN21#,VZN21# ＴＹＰＥ Ｂ：イラスト参照 |
53497-50020 |
from US $2.24 |
||
|
53510
|
53510
53510-60140 Lock Assy, Hood[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
53510-60140 |
from US $38.36 |
||
|
53510A
|
53510A
90506-09050 Spring, Tension(For Hood Lock)[11.2002 - 08.2005] KDN215,TRN21#,VZN21# 線径＝０．９，コイル巻数＝２０．５ |
90506-09050 |
from US $1.38 |
||
|
53510A
|
53510A
90506-20065 Spring, Tension(For Hood Lock)[11.2002 - 08.2005] KDN215,TRN21#,VZN21# 線径＝２．０，コイル巻数＝１６．０ |
90506-20065 |
US $2.48 |
||
|
53525
|
53525
53525-33040 Protector, Hood Lock Release Lever[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
53525-33040 |
from US $12.15 |
||
|
53540
|
53540
53540-60010 Lever Assy, Auxiliary Catch Release[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
53540-60010 |
from US $30.97 |
||
|
53540A
|
53540A
69759-20110 Snap, Auxiliary Catch Release Lever Control Link[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
69759-20110 |
from US $1.83 |
||
|
53550
|
53550
53550-35010 Hook Assy, Hood Auxiliary Catch[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
53550-35010 |
US $57.62 |
||
|
53550
|
53550
53550-35020 Hook Assy, Hood Auxiliary Catch[08.2005 -] GRN215,TRN21# |
53550-35020 |
US $57.46 |
||
|
53550A
|
53550A
90508-18102 Spring, Torsion(For Hood Lock Hook)[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
90508-18102 |
US $1.75 |
||
|
53550B
|
53550B
69759-20110 Snap, Auxiliary Catch Release Lever Control Link[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
69759-20110 |
from US $1.83 |
||
|
53561A
|
53561A
53561-30010 Guide, Hood Auxiliary Catch Hook[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
53561-30010 |
from US $4.70 |
||
|
53601
|
53601
53601-52010-B2 Lever Sub-Assy, Hood Lock Control[11.2002 - 08.2005] TRN215,VZN215..SSRX STONE,TRIM12,13; TRN215,VZN215..SSRG;KDN215,TRN210,VZN210 STONE,TRIM1# |
53601-52010-B2 |
US $25.04 |
||
|
53601
|
53601
53601-52010-E0 Lever Sub-Assy, Hood Lock Control[11.2002 - 08.2005] KDN215,TRN21#,VZN21# FAWN,TRIM4# |
53601-52010-E0 |
US $25.04 |
||
| replacement | |||||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[11.2002 - 08.2005] KDN215,TRN21#,VZN21# FAWN,TRIM4# |
53601-52010-C0 |
— | ||
|
53602
|
53602
53602-60010 Protector Sub-Assy, Hood Lock Control Cable[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
53602-60010 |
US $13.07 |
||
|
53630
|
53630
53630-35080 Cable Assy, Hood Lock Control[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
53630-35080 |
US $21.14 |
||
|
9011906543
|
9011906543
90119-06543 BOLT |
90119-06543 |
from US $0.70 |
||
|
9011906651
|
9011906651
90119-06651 BOLT WWASHER |
90119-06651 |
from US $0.68 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.76 |
||
|
9017806003
|
9017806003
90178-06003 New Genuine Part |
90178-06003 |
US $1.16 |
||
