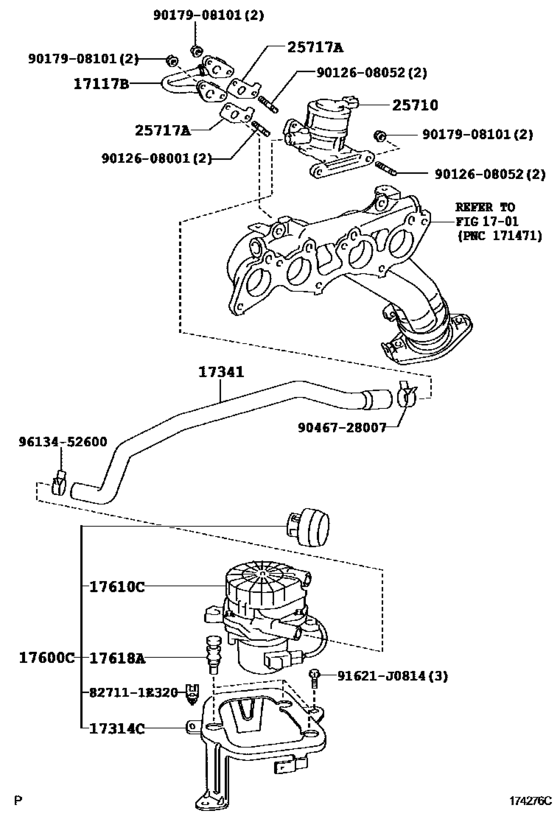

Manifold Air Injection System ([08.2004 - ] (0408- )2TRFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- TRN210
- grade
- SSRX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17117B
|
17117B
17117-75010 Pipe, Intake, No.4[08.2004 - 08.2005] 2TRFE..TRN21# |
17117-75010 |
US $55.04 |
||
| replacement | |||||
|
17117B
|
17117B
17117-75011 Pipe, Intake, No.4[08.2004 - 08.2005] 2TRFE..TRN21# |
17117-75011 |
US $51.91 |
||
|
17314C
|
17314C
17314-0W010 Bracket, Air Pump[08.2004 - 08.2005] 2TRFE..TRN21# |
17314-0W010 |
US $39.60 |
||
|
17341
|
17341
17341-75170 Hose, No.1(For Air Injection System)[08.2004 - 08.2005] 2TRFE..TRN21# |
17341-75170 |
from US $71.04 |
||
|
17600C
|
17600C
17600-0W010 Pump Assy, Air[08.2004 - 08.2005] 2TRFE..TRN21# |
17600-0W010 |
from US $602.10 |
||
|
17610C
|
17610C
17610-0C010 Pump Assy, Air[08.2004 - 08.2005] 2TRFE..TRN21# |
17610-0C010 |
from US $452.81 |
||
|
17618A
|
17618A
17618-0C010 Insulator, Air Pump[08.2004 - 08.2005] 2TRFE..TRN21# |
17618-0C010 |
US $13.08 |
||
|
25710
|
25710
25710-75020
Valve Assy, Air Switching
[08.2004 - 08.2005] 2TRFE..TRN21# |
25710-75020 |
— | ||
| replacements | |||||
|
25710
|
25710
25710-75025 Valve Assy, Air Switching[08.2004 - 08.2005] 2TRFE..TRN21# |
25710-75025 |
from US $124.43 |
||
|
25710
|
25710
17117-75011 Pipe, Intake, No.4[08.2004 - 08.2005] 2TRFE..TRN21# |
17117-75011 |
US $51.91 |
||
|
25710
|
25710
90126-08031 Bolt, Stud[08.2004 - 08.2005] 2TRFE..TRN21# |
90126-08031 |
US $5.56 |
||
|
25717A
|
25717A
25717-75010 Gasket, Air Switching Valve[08.2004 - 08.2005] 2TRFE..TRN21# |
25717-75010 |
from US $2.42 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.25 |
||
|
9012608001
|
9012608001
90126-08001 Bolt, Stud(For Oxygen Sensor) |
90126-08001 |
from US $2.81 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.78 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9046728007
|
9046728007
90467-28007 Clip Or Clamp(For Ventilation Hose) |
90467-28007 |
from US $3.06 |
||
|
9613452600
|
9613452600
96134-52600 Clip Or Clamp(For Ventilation Hose) |
96134-52600 |
from US $2.87 |
||
