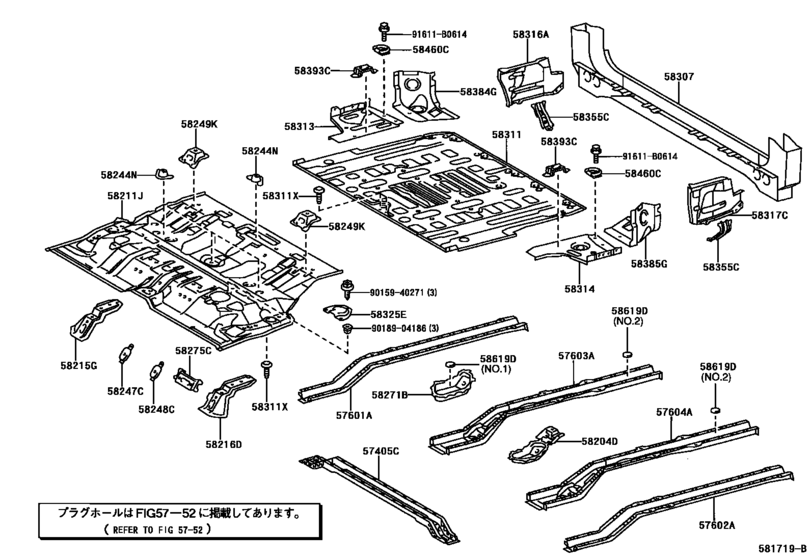

Rear Floor Panel & Rear Floor Member ([11.2002 - ] (0211- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- TRN210
- grade
- SSRX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57405C
|
57405C
57405-35010 Member Sub-Assy, Center Floor Cross, Rear[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
57405-35010 |
US $343.62 |
||
| replacement | |||||
|
57405C
|
57405C
57405-35011 Member Sub-Assy, Center Floor Cross, Rear[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
57405-35011 |
US $214.03 |
||
|
57405C
|
57405C
57405-35011 Member Sub-Assy, Center Floor Cross, Rear[08.2006 -] GRN215,TRN21# |
57405-35011 |
US $214.03 |
||
|
57601A
|
57601A
57601-35010 Member Sub-Assy, Rear Floor Side, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21#..SSRX |
57601-35010 |
US $100.46 |
||
| replacement | |||||
|
57601A
|
57601A
57601-35020 Member Sub-Assy, Rear Floor Side, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21#..SSRX |
57601-35020 |
US $100.46 |
||
|
57601A
|
57601A
57601-35020 Member Sub-Assy, Rear Floor Side, Rh[11.2002 - 08.2005] KDN215,TRN215,VZN215..SSRG; KDN215,TRN21#,VZN21#..SSRX トランク ＆ デッキ カーペット ＆ マット−ダブル デッキ |
57601-35020 |
US $100.46 |
||
|
57602A
|
57602A
57601-35010 Member Sub-Assy, Rear Floor Side, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21#..SSRX |
57601-35010 |
US $100.46 |
||
| replacement | |||||
|
57602A
|
57602A
57601-35020 Member Sub-Assy, Rear Floor Side, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21#..SSRX |
57601-35020 |
US $100.46 |
||
|
57602A
|
57602A
57601-35020 Member Sub-Assy, Rear Floor Side, Rh[11.2002 - 08.2005] KDN215,TRN215,VZN215..SSRG; KDN215,TRN21#,VZN21#..SSRX トランク ＆ デッキ カーペット ＆ マット−ダブル デッキ |
57601-35020 |
US $100.46 |
||
|
57603A
|
57603A
57603-35010 Member Sub-Assy, Rear Floor Side, Rear Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
57603-35010 |
US $126.67 |
||
|
57604A
|
57604A
57604-35010 Member Sub-Assy, Rear Floor Side, Rear Lh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
57604-35010 |
US $126.67 |
||
|
58204D
|
58204D
58204-35050 Bracket Sub-Assy, Rear Seat Hinge, Outer Lh[11.2002 - 03.2005] KDN215,TRN21#,VZN21# |
58204-35050 |
US $52.71 |
||
| replacement | |||||
|
58204D
|
58204D
58204-35051 Bracket Sub-Assy, Rear Seat Hinge, Outer Lh[11.2002 - 03.2005] KDN215,TRN21#,VZN21# |
58204-35051 |
US $33.20 |
||
|
58204D
|
58204D
58204-35051 Bracket Sub-Assy, Rear Seat Hinge, Outer Lh[04.2005 - 08.2005] KDN215,TRN21#,VZN21# |
58204-35051 |
US $33.20 |
||
|
58211J
|
58211J
58211-35020 Pan, Center Floor[11.2002 - 08.2005] KDN215,TRN21#,VZN21#..SSRX |
58211-35020 |
US $371.28 |
||
|
58211J
|
58211J
58211-35030 Pan, Center Floor[11.2002 - 08.2005] KDN215,TRN215,VZN215..SSRG; KDN215,TRN21#,VZN21#..SSRX トランク ＆ デッキ カーペット ＆ マット−ダブル デッキ |
58211-35030 |
US $371.28 |
||
|
58215G
|
58215G
58215-35020 Bracket, Rear Seat Mounting, No.1[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58215-35020 |
US $26.79 |
||
|
58216D
|
58216D
58216-35020 Bracket, Rear Seat Mounting, Lh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58216-35020 |
US $26.79 |
||
|
58244N
|
58244N
58244-35010 Stopper, Rear Seat Cushion Bracket[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58244-35010 |
US $2.71 |
||
|
58247C
|
58247C
58247-35030 Reinforcement, Rear Seat Cushion Hinge, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58247-35030 |
US $7.57 |
||
|
58248C
|
58248C
58247-35030 Reinforcement, Rear Seat Cushion Hinge, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58247-35030 |
US $7.57 |
||
|
58249K
|
58249K
58249-35030 Bracket, Center Floor Board Support[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58249-35030 |
US $12.96 |
||
|
58271B
|
58271B
58271-35010 Plate, Floor Side, Rear, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58271-35010 |
US $19.07 |
||
|
58275C
|
58275C
58275-35020 Bracket, Wire Harness Protector[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58275-35020 |
US $5.10 |
||
|
58307
|
58307
58307-35011 Panel Sub-Assy, Body Lower Back[08.2003 - 08.2005] KDN215,TRN21#,VZN21# |
58307-35011 |
US $276.64 |
||
|
58311
|
58311
58311-35081 Pan, Rear Floor[05.2004 - 08.2005] KDN215,TRN21#,VZN21# |
58311-35081 |
US $317.41 |
||
|
58311X
|
58311X
90115-06166 Bolt, Weld(For Front Floor Pan)[08.2005 - 08.2009] GRN215,TRN21# |
90115-06166 |
from US $0.94 |
||
|
58313
|
58313
58313-35080 Panel, Rear Floor Side, Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58313-35080 |
US $40.19 |
||
|
58314
|
58314
58314-35040 Panel, Rear Floor Side, Lh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58314-35040 |
US $33.78 |
||
| replacement | |||||
|
58314
|
58314
58314-60120 Panel, Rear Floor Side, Lh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58314-60120 |
US $40.54 |
||
|
58316A
|
58316A
58316-35040 Extension, Rear Floor Side Panel, Rear Rh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58316-35040 |
US $27.96 |
||
|
58317C
|
58317C
58317-35030 Extension, Rear Floor Side Panel, Rear Lh[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58317-35030 |
US $22.80 |
||
|
58325E
|
58325E
58325-35010 Cover, Rear Floor Service Hole[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58325-35010 |
US $11.18 |
||
|
58355C
|
58355C
58355-35020 Bracket, Rear Bumper Arm[11.2002 - 08.2005] KDN215,TRN21#,VZN21# |
58355-35020 |
US $5.10 |
||
|
58384G
|
58384G
58384-35011 Gusset, Lower Back, Upper Rh[08.2003 - 08.2005] KDN215,TRN21#,VZN21# |
58384-35011 |
US $43.97 |
||
|
58385G
|
58385G
58385-35011 Gusset, Lower Back, Upper Lh[08.2003 - 08.2005] KDN215,TRN21#,VZN21# |
58385-35011 |
US $43.97 |
||
|
58393C
|
58393C
58393-35010 Support, Deck Board Set[11.2002 - 08.2005] KDN215,TRN215,VZN215..SSRG; KDN215,TRN21#,VZN21#..SSRX トランク ＆ デッキ カーペット ＆ マット−ダブル デッキ |
58393-35010 |
US $4.95 |
||
|
58460C
|
58460C
58460-35012 Striker Assy, Luggage Hold Belt[11.2002 - 08.2005] KDN215,TRN21#,VZN21#..SSRX |
58460-35012 |
from US $10.51 |
||
|
58619D
|
58619D
58619-35010 Sheet, Center Floor Silencer Sub[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＮＯ．１ |
58619-35010 |
US $1.46 |
||
|
58619D
|
58619D
58619-60010 Sheet, Center Floor Silencer Sub[11.2002 - 08.2005] KDN215,TRN21#,VZN21# ＮＯ．２ |
58619-60010 |
US $1.10 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9015940271
|
9015940271
90159-40271 New Genuine Part |
90159-40271 |
US $0.69 |
||
|
9018904186
|
9018904186
90189-04186 GROMMET SCREW |
90189-04186 |
from US $0.76 |
||
