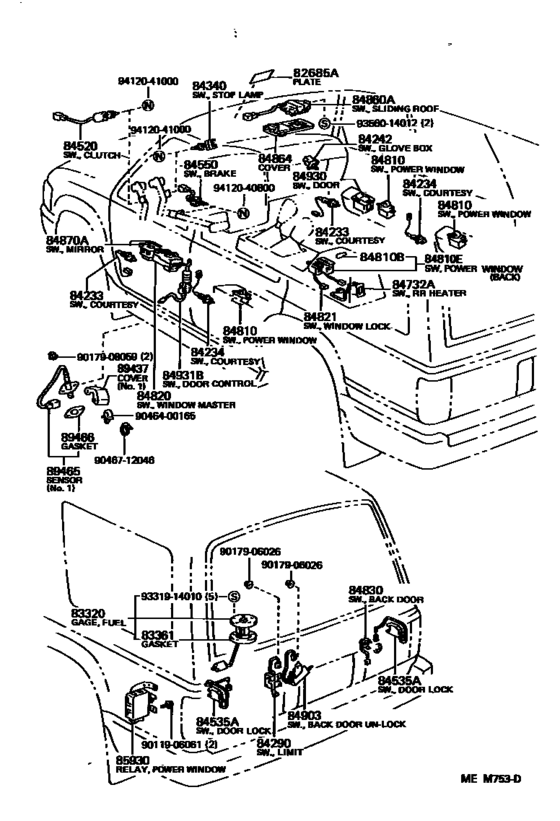

Switch & Relay & Computer ([08.1988 - ] (8808- )RN12#,VZN120..JPP) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1989 - 1995
- Sales region
- U.S.A.
- Frame
- VZN120
- grade
- SR5
- ENGINE
- 3VZE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- CAB
- WG
- Model
- 4RUNNER
- From
- 04.1989
- To
- 11.1995
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- 4Runner
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80136 Gage Assy, Fuel Sender[04.1989 - 11.1995] RN12#,VZN120 |
83320-80136 |
US $129.56 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[08.1988 - 11.1995] RN12#,8#,90,VZN120,85,9# |
83361-20030 |
from US $2.30 |
||
|
84233
|
84233
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[08.1988 - 11.1995] RN12#,8#,90,VZN120,85,9# |
84230-12120 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[08.1988 - 11.1995] RN12#,8#,90,VZN120,85,9# |
84231-22060 |
from US $13.26 |
||
|
84234
|
84234
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[04.1989 - 11.1995] RN12#,VZN120 |
84230-12120 |
— | ||
| replacement | |||||
|
84234
|
84234
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[04.1989 - 11.1995] RN12#,VZN120 |
84231-22060 |
from US $13.26 |
||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[08.1988 - 11.1995] RN12#,85,90,VZN120,90..SR5 |
84242-20030 |
US $18.35 |
||
|
84290
|
84290
84290-35010
Switch Assy, Limit
[08.1991 - 11.1995] VZN120 |
84290-35010 |
— | ||
|
84290
|
84290
84290-89102
Switch Assy, Limit
[04.1989 - 08.1991] RN12#,VZN120 |
84290-89102 |
— | ||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[08.1988 - 08.1990] RN12#,8#,90,VZN120,85,9# |
84340-30030 |
from US $29.29 |
||
|
84340
|
84340
84340-30050
Switch Assy, Stop Lamp
[08.1988 - 08.1990] RN12#,85,90,VZN120,85,9#..SR5,STD W(CRUISE CONTROL) |
84340-30050 |
— | ||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[08.1990 - 11.1995] RN12#,8#,90,VZN120,85,9# |
84340-32050 |
from US $18.82 |
||
|
84340
|
84340
84340-32070 Switch Assy, Stop Lamp[08.1990 - 08.1992] VZN95;VZN90..SR5..CND;RN85,90,VZN85,90..USA;RN12#,80,VZN120..DLX,SR5 W(CRUISE CONTROL) |
84340-32070 |
US $59.55 |
||
| replacement | |||||
|
84340
|
84340
84340-20060 Switch Assy, Stop Lamp[08.1990 - 08.1992] VZN95;VZN90..SR5..CND;RN85,90,VZN85,90..USA;RN12#,80,VZN120..DLX,SR5 W(CRUISE CONTROL) |
84340-20060 |
from US $20.87 |
||
|
84535A
|
84535A
84535-35010 Switch, Door Lock[08.1991 - 11.1995] VZN120 LH |
84535-35010 |
US $27.52 |
||
|
84535A
|
84535A
84535-89103 Switch, Door Lock[04.1989 - 11.1995] RN12#,VZN120 RH |
84535-89103 |
US $27.52 |
||
|
84535A
|
84535A
84535-89104 Switch, Door Lock[04.1989 - 08.1991] RN12#,VZN120 LH |
84535-89104 |
US $27.96 |
||
|
84550
|
84550
84550-35010 Switch Assy, Parking Brake[08.1988 - 08.1991] RN12#,8#,90,VZN120,85,9# |
84550-35010 |
from US $35.41 |
||
|
84732A
|
84732A
84732-89116 Switch, Rear Heater Blower[04.1989 - 11.1995] RN12#,VZN120 |
84732-89116 |
US $45.86 |
||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[04.1989 - 11.1995] RN12#,VZN120 |
84810-32070 |
from US $39.48 |
||
|
84810B
|
84810B
84999-10170 Bulb, Indicator Lamp[08.1991 - 11.1995] VZN120 12V 1.12W |
84999-10170 |
US $7.88 |
||
|
84810E
|
84810E
84810-35010 Switch Assy, Back Door Power Window Regulator[08.1991 - 11.1995] VZN120 |
84810-35010 |
US $62.55 |
||
|
84810E
|
84810E
84810-89104 Switch Assy, Back Door Power Window Regulator[04.1989 - 08.1991] RN12#,VZN120 |
84810-89104 |
US $50.67 |
||
|
84820
|
84820
84820-22320
Master Switch Assy, Power Window Regulator
[04.1989 - 08.1993] RN12#,VZN120 |
84820-22320 |
— | ||
|
84820
|
84820
84820-35010 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.1993 - 11.1995] VZN120 |
84820-35010 |
from US $197.96 |
||
|
84821
|
84821
84821-35010
Switch, Power Window Lock
[08.1991 - 11.1995] VZN120 |
84821-35010 |
— | ||
|
84821
|
84821
84821-89103
Switch, Power Window Lock
[04.1989 - 08.1991] RN12#,VZN120 |
84821-89103 |
— | ||
|
84830
|
84830
84830-35020
Switch Assy, Tail Gate Control
[08.1991 - 11.1995] VZN120 |
84830-35020 |
— | ||
|
84830
|
84830
84830-89103
Switch Assy, Tail Gate Control
[04.1989 - 08.1991] RN12#,VZN120 |
84830-89103 |
— | ||
|
84860A
|
84860A
84860-35010
Switch Assy, Sliding Roof
[08.1991 - 11.1995] VZN120 |
84860-35010 |
— | ||
|
84860A
|
84860A
84860-89101
Switch Assy, Sliding Roof
[04.1989 - 08.1991] RN12#,VZN120 |
84860-89101 |
— | ||
|
84864
|
84864
84864-89101-02
Cover, Slide Roof Motor Switch
[04.1989 - 08.1991] RN12#,VZN120 RED,TRIM3# |
84864-89101-02 |
— | ||
| replacement | |||||
|
84864
|
84864
84864-89101-03
Cover, Slide Roof Motor Switch
[04.1989 - 08.1991] RN12#,VZN120 RED,TRIM3# |
84864-89101-03 |
— | ||
|
84864
|
84864
84864-89101-03
Cover, Slide Roof Motor Switch
[04.1989 - 08.1991] RN12#,VZN120 GRAY,TRIM1# |
84864-89101-03 |
— | ||
|
84864
|
84864
84864-89101-04
Cover, Slide Roof Motor Switch
[04.1989 - 08.1991] RN12#,VZN120 BLUE,TRIM8# |
84864-89101-04 |
— | ||
| replacement | |||||
|
84864
|
84864
84864-89101-03
Cover, Slide Roof Motor Switch
[04.1989 - 08.1991] RN12#,VZN120 BLUE,TRIM8# |
84864-89101-03 |
— | ||
|
84864
|
84864
84864-89101-06
Cover, Slide Roof Motor Switch
[04.1989 - 08.1991] RN12#,VZN120 BROWN,TRIM4# |
84864-89101-06 |
— | ||
| replacement | |||||
|
84864
|
84864
84864-89101-03
Cover, Slide Roof Motor Switch
[04.1989 - 08.1991] RN12#,VZN120 BROWN,TRIM4# |
84864-89101-03 |
— | ||
|
84864
|
84864
84864-89101-E0 Cover, Slide Roof Motor SwitchSLIDE ROOF MOTOR SWITCH [08.1991 - 08.1993] VZN120 TAN,TRIM4# |
84864-89101-E0 |
US $27.66 |
||
| replacement | |||||
|
84864
|
84864
84864-89101-03
Cover, Slide Roof Motor Switch
[08.1991 - 08.1993] VZN120 TAN,TRIM4# |
84864-89101-03 |
— | ||
|
84864
|
84864
84864-89101-E1
Cover, Slide Roof Motor Switch
[08.1993 - 11.1995] VZN120 OAK,TRIM4# |
84864-89101-E1 |
— | ||
| replacement | |||||
|
84864
|
84864
84864-89101-03
Cover, Slide Roof Motor Switch
[08.1993 - 11.1995] VZN120 OAK,TRIM4# |
84864-89101-03 |
— | ||
|
84864
|
84864
84864-89101-J0
Cover, Slide Roof Motor Switch
[08.1991 - 11.1995] VZN120 BLUE,TRIM8# |
84864-89101-J0 |
— | ||
| replacement | |||||
|
84864
|
84864
84864-89101-03
Cover, Slide Roof Motor Switch
[08.1991 - 11.1995] VZN120 BLUE,TRIM8# |
84864-89101-03 |
— | ||
|
84870A
|
84870A
84870-89101 Switch Assy, Outer Mirror[08.1988 - 08.1991] RN12#,85,90,VZN120,90..SR5 |
84870-89101 |
US $79.32 |
||
|
84903
|
84903
84903-35010 Switch Sub-Assy, Door Un-Lock[08.1991 - 11.1995] VZN120 |
84903-35010 |
US $59.70 |
||
|
84903
|
84903
84903-89102 Switch Sub-Assy, Door Un-Lock[04.1989 - 08.1991] RN12#,VZN120 |
84903-89102 |
US $60.42 |
||
|
84930
|
84930
84930-32040
Switch Assy, Door Control
[08.1988 - 08.1989] RN12#,85,90,VZN120,90..SR5 |
84930-32040 |
— | ||
|
84931B
|
84931B
84931-35010 Switch, Door ControlDOOR CONTROL [08.1991 - 08.1993] VZN120 LH |
84931-35010 |
US $48.63 |
||
| replacement | |||||
|
84931B
|
84931B
84931-35040 Switch, Door ControlDOOR CONTROL [08.1991 - 08.1993] VZN120 LH |
84931-35040 |
US $48.63 |
||
|
84931B
|
84931B
84931-35020 Switch, Door Control[08.1991 - 08.1993] VZN120 RH |
84931-35020 |
US $48.34 |
||
| replacement | |||||
|
84931B
|
84931B
84931-35030
Switch, Door Control
[08.1991 - 08.1993] VZN120 RH |
84931-35030 |
— | ||
|
84931B
|
84931B
84931-35050 Switch, Door Control[08.1993 - 11.1995] VZN120 RH |
84931-35050 |
US $48.48 |
||
| replacement | |||||
|
84931B
|
84931B
84931-35070
Switch, Door Control
[08.1993 - 11.1995] VZN120 RH |
84931-35070 |
— | ||
|
84931B
|
84931B
84931-35060
Switch, Door Control
[08.1993 - 11.1995] VZN120 LH |
84931-35060 |
— | ||
|
84931B
|
84931B
84931-89101 Switch, Door ControlDOOR CONTROL [08.1988 - 08.1989] RN12#,85,90,VZN120,90..SR5 LH |
84931-89101 |
US $45.43 |
||
|
84931B
|
84931B
84931-89102 Switch, Door Control[08.1988 - 08.1989] RN12#,85,90,VZN120,90..SR5 RH |
84931-89102 |
US $45.43 |
||
|
85930
|
85930
85930-89102 Relay Assy, Power Window[04.1989 - 08.1990] RN12#,VZN120 |
85930-89102 |
US $282.46 |
||
|
85930
|
85930
85930-89103 Relay Assy, Power Window[04.1989 - 08.1990] RN12#,VZN120 W(REAR WIPER) |
85930-89103 |
US $365.46 |
||
|
85930
|
85930
85930-89104 Relay Assy, Power Window[08.1990 - 08.1991] RN12#,VZN120 |
85930-89104 |
US $279.55 |
||
|
85930
|
85930
85930-89105
Relay Assy, Power Window
[08.1990 - 08.1991] RN12#,VZN120 W(REAR WIPER) |
85930-89105 |
— | ||
|
89437
|
89437
89437-35020 Cover, Sensor[10.1992 - 01.1994] VZN120 NO.1 |
89437-35020 |
US $13.69 |
||
|
89437
|
89437
89437-35030 Cover, Sensor[04.1989 - 10.1992] RN12#,VZN120 NO.2 |
89437-35030 |
US $13.69 |
||
|
89465
|
89465
89465-39355
Sensor, Oxygen
[04.1989 - 08.1991] VZN120 |
89465-39355 |
— | ||
|
89465
|
89465
89465-39485 Sensor, Oxygen[08.1991 - 11.1995] VZN120 |
89465-39485 |
US $141.52 |
||
|
89465
|
89465
89465-39745
Sensor, Oxygen
[08.1993 - 11.1995] VZN120 CALIFORNIA SPEC,NO.1 |
89465-39745 |
— | ||
|
89465
|
89465
89465-39755 Sensor, Oxygen[08.1993 - 11.1995] VZN120 CALIFORNIA SPEC,NO.2 |
89465-39755 |
US $149.97 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 08.1989] RN80..4HC;VZN95..CND;RN80,VZN95..R,W;RN12#,85,90,VZN120,85,90..EFI |
89466-20020 |
from US $12.77 |
||
|
9011906061
|
9011906061
90119-06061 New Genuine Part |
90119-06061 |
US $0.87 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9046400165
|
9046400165
90464-00165 Clamp, No.2(For Luggage Door Lock Control Cable) |
90464-00165 |
US $1.40 |
||
|
9046712046
|
9046712046
90467-12046
New Genuine Part
|
90467-12046 |
— | ||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.25 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
