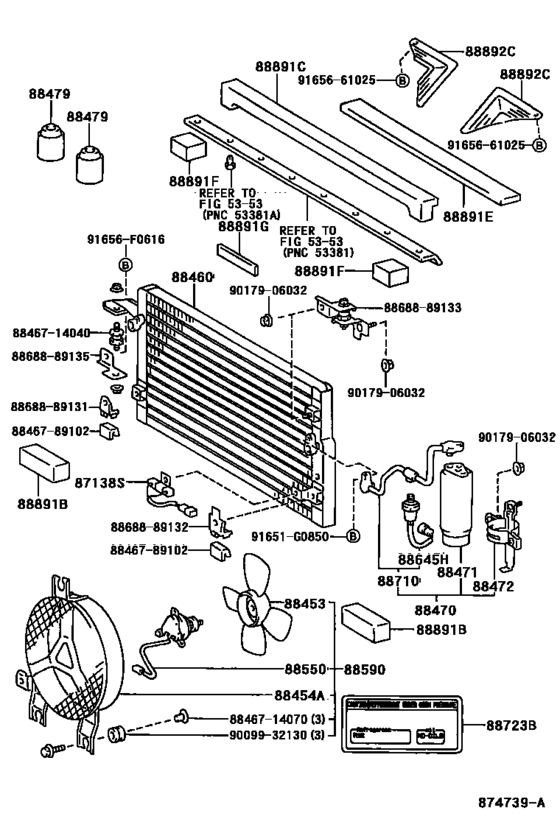

Heating & Air Conditioning - Cooler Piping ([08.1990 - 08.1993] BLOWER ASSY,CONDENSER & RECEIVER (9008-9308)VZN130) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- VZN130
- grade
- SR5
- ENGINE
- 3VZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1990
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87138S
|
87138S
88635-35010
Resistor, Blower
[08.1991 - 11.1995] LN13#,RN13#,VZN130 |
88635-35010 |
— | ||
|
87138S
|
87138S
88635-89107
Resistor, Blower
[04.1989 - 08.1991] LN13#,RN13#,VZN130,YN13# |
88635-89107 |
— | ||
|
88453
|
88453
88453-12030
Fan, No.2
[04.1989 - 08.1991] LN135,RN135,VZN130,YN135 |
88453-12030 |
— | ||
| replacement | |||||
|
88453
|
88453
88453-28010
Fan, No.2
[04.1989 - 08.1991] LN135,RN135,VZN130,YN135 |
88453-28010 |
— | ||
|
88453
|
88453
88453-28010
Fan, No.2
[08.1991 - 08.1992] LN130,RN130..ARL; VZN130 DEALER OPTION |
88453-28010 |
— | ||
|
88454A
|
88454A
88454-35030
Shroud, Fan
[04.1989 - 11.1995] LN13#,RN13#,VZN130,YN13# |
88454-35030 |
— | ||
|
88460
|
88460
88460-35060
Condenser Assy, Cooler
[08.1991 - 08.1993] LN130,RN130..ARL; VZN130 DEALER OPTION |
88460-35060 |
— | ||
| replacement | |||||
|
88460
|
88460
88460-35070
Condenser Assy, Cooler
[08.1991 - 08.1993] LN130,RN130..ARL; VZN130 DEALER OPTION |
88460-35070 |
— | ||
|
88460
|
88460
88460-35080
Condenser Assy, Cooler
[08.1993 - 11.1995] LN13#,RN13#..GEN,V; VZN130 MAKER OPTION |
88460-35080 |
— | ||
| replacement | |||||
|
88460
|
88460
88460-35090
Condenser Assy, Cooler
[08.1993 - 11.1995] LN13#,RN13#..GEN,V; VZN130 MAKER OPTION |
88460-35090 |
— | ||
|
88460
|
88460
88460-35110 Condenser Assy, CoolerCOOLER [08.1993 - 11.1995] LN130,RN130..ARL; VZN130 DEALER OPTION |
88460-35110 |
US $534.35 |
||
| replacement | |||||
|
88460
|
88460
88460-35090
Condenser Assy, Cooler
[08.1993 - 11.1995] LN130,RN130..ARL; VZN130 DEALER OPTION |
88460-35090 |
— | ||
|
88460
|
88460
88460-89117
Condenser Assy, Cooler
[04.1989 - 08.1991] LN13#,RN13#,VZN130,YN13# |
88460-89117 |
— | ||
| replacement | |||||
|
88460
|
88460
88460-89118
Condenser Assy, Cooler
[04.1989 - 08.1991] LN13#,RN13#,VZN130,YN13# |
88460-89118 |
— | ||
|
88470
|
88470
88470-89103 Receiver & Dryer Assy, Cooler[04.1989 - 08.1991] LN135,RN135,VZN130,YN135 |
88470-89103 |
US $218.40 |
||
|
88471
|
88471
88471-16040
Receiver & Dryer Assy, Cooler
[08.1988 - 05.1993] RN105..ARL,V;LN10#,111,13#,RN106,110,13#,VZN130,YN106,13# |
88471-16040 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-16050 Receiver & Dryer Assy, Cooler[08.1988 - 05.1993] RN105..ARL,V;LN10#,111,13#,RN106,110,13#,VZN130,YN106,13# |
88471-16050 |
US $57.46 |
||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[08.1993 - 11.1995] LN13#,RN13#,VZN130 |
88471-34010 |
from US $47.25 |
||
|
88472
|
88472
88472-35010
Bracket, Receiver Tank, No.1
[08.1991 - 11.1995] LN13#,RN13#,VZN130 |
88472-35010 |
— | ||
|
88472
|
88472
88472-89110
Bracket, Receiver Tank, No.1
[08.1988 - 08.1991] LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
88472-89110 |
— | ||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[10.1989 - 01.1993] LN130,RN130,VZN130,YN130..ARL 250G |
90986-02004 |
— | ||
|
88550
|
88550
88550-89101
Motor, Cooling Fan
[04.1989 - 08.1991] LN135,RN135,VZN130,YN135 |
88550-89101 |
— | ||
|
88590
|
88590
88590-89101
Blower Assy, W/shroud
[04.1989 - 01.1995] LN13#,RN13#,VZN130,YN13# |
88590-89101 |
— | ||
| replacement | |||||
|
88590
|
88590
88590-89102
Blower Assy, W/shroud
[04.1989 - 01.1995] LN13#,RN13#,VZN130,YN13# |
88590-89102 |
— | ||
|
88590
|
88590
88590-89102
Blower Assy, W/shroud
[01.1995 - 11.1995] LN13#,RN13#..GEN,V; VZN130 MAKER OPTION |
88590-89102 |
— | ||
|
88645H
|
88645H
88645-12030
Switch, Pressure No.1
[08.1990 - 08.1991] VZN130 MAKER OPTION |
88645-12030 |
— | ||
|
88645H
|
88645H
88645-20010 Switch, Pressure No.1[08.1991 - 08.1993] VZN130;LN13#,RN13#..GEN,V NO.2; VZN130 DEALER OPTION |
88645-20010 |
US $57.48 |
||
|
88645H
|
88645H
88645-89103
Switch, Pressure No.1
[08.1990 - 08.1991] VZN130 DEALER OPTION |
88645-89103 |
— | ||
| replacement | |||||
|
88645H
|
88645H
88645-20010 Switch, Pressure No.1[08.1990 - 08.1991] VZN130 DEALER OPTION |
88645-20010 |
US $57.48 |
||
|
88710
|
88710
88710-35010 Tube Assy, Air Conditioner[08.1991 - 08.1993] LN13#,RN13#,VZN130 |
88710-35010 |
US $135.41 |
||
|
88710
|
88710
88710-89121
Tube Assy, Air Conditioner
[04.1989 - 08.1991] LN13#,RN13#,VZN130,YN13# |
88710-89121 |
— | ||
|
88723B
|
88723B
88723-20040 Label, Cooler Service Caution[08.1993 - 01.1994] LN13#,RN13#,VZN130 |
88723-20040 |
from US $2.37 |
||
|
88723B
|
88723B
88723-22050
Label, Cooler Service Caution
[08.1991 - 08.1993] LN130,RN130,VZN130..ARL |
88723-22050 |
— | ||
|
88891B
|
88891B
88578-89103
Packing B (For Cooler)
[08.1991 - 08.1994] VZN130 DEALER OPTION |
88578-89103 |
— | ||
|
88891B
|
88891B
88578-89111
Packing B (For Cooler)
[08.1988 - 08.1991] VZN130;LN106,111,135,RN105,135,YN106,135..GEN,V |
88578-89111 |
— | ||
|
88891C
|
88891C
88578-89118
Packing C (For Cooler)
[08.1993 - 09.1999] RN105,110,VZN130..ARL,V;RN106,13#,YN106..ARL,GEN |
88578-89118 |
— | ||
|
88891E
|
88891E
88578-89112
Packing E (For Cooler)
[08.1989 - 08.1991] LN111,135;LN106,130,RN110,13#,VZN130,YN130..ARL,V |
88578-89112 |
— | ||
|
88891F
|
88891F
88578-35010
Packing F (For Cooler)
[08.1991 - 08.1993] RN130..ARL;VZN130..4FC LH; VZN130..5F DEALER OPT,LH |
88578-35010 |
— | ||
|
88891F
|
88891F
88578-89128
Packing F (For Cooler)
[08.1991 - 08.1993] VZN130..5F DEALER OPT,RH |
88578-89128 |
— | ||
|
88891G
|
88891G
88578-89107
Packing C (For Cooler)
[08.1988 - 08.1994] YN130;LN10#,111,130,RN10#,110,130,VZN130..5F..ARL |
88578-89107 |
— | ||
|
88892C
|
88892C
88892-89116
Plate, Condenser, No.1
[08.1990 - 08.1991] VZN130 DEALER OPTION,RH |
88892-89116 |
— | ||
|
88892C
|
88892C
88892-89117
Plate, Condenser, No.1
[08.1990 - 08.1991] VZN130 DEALER OPTION,LH |
88892-89117 |
— | ||
|
91651G0850
|
91651G0850
91651-G0850
New Genuine Part
|
91651-G0850 |
— | ||
|
91656F0616
|
91656F0616
91656-F0616
New Genuine Part
|
91656-F0616 |
— | ||
| replacement | |||||
|
91656F0616
|
91656F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
8846789102
|
8846789102
88467-89102
Cushion, Cooler Condenser, No.1
|
88467-89102 |
— | ||
|
8868889131
|
8868889131
88688-89131
Bracket, Cooler Diaphragm
|
88688-89131 |
— | ||
|
8868889132
|
8868889132
88688-89132
Bracket, Cooler Diaphragm
|
88688-89132 |
— | ||
|
8868889133
|
8868889133
88688-89133
Bracket, Cooler Diaphragm
|
88688-89133 |
— | ||
|
8868889135
|
8868889135
88688-89135
Bracket, Cooler Diaphragm
|
88688-89135 |
— | ||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165661025
|
9165661025
91656-61025 Bolt(For Transaxle Case & Engine Setting) |
91656-61025 |
US $2.91 |
||
| replacement | |||||
|
9165661025
|
9165661025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
